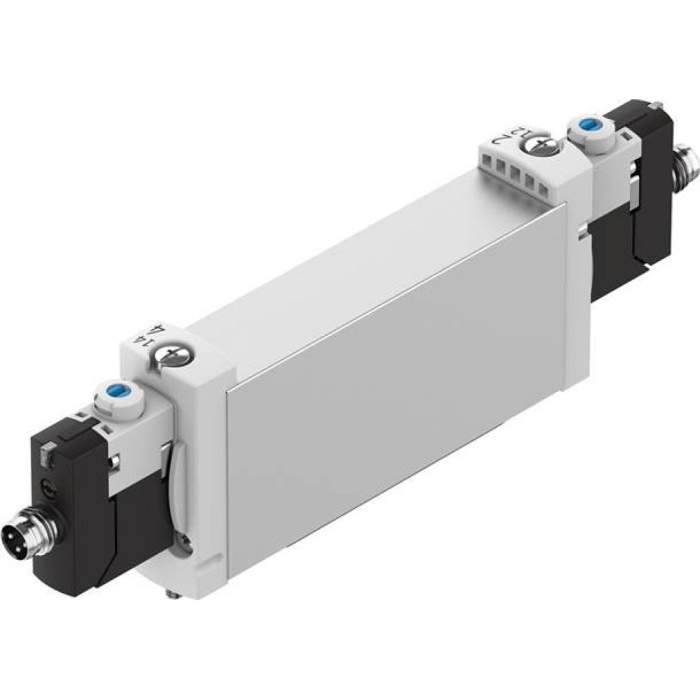

Festo 8031548. Solenoid valve VUVG-B18-P53U-ZT-F-1R8L
€121.59
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8031548
Manufacturer Nr.
VUVG-B18-P53U-ZT-F-1R8L
Solenoid valve
Frequently Bought Together
-
This Item:
€121.59Excl. 19% VAT , excl. Shipping Cost
-
Festo 574366. Solenoid valve VUVG-B10-T32H-MZT-F-1P3
€80.85Excl. 19% VAT , excl. Shipping Cost
-
Festo 566458. Solenoid valve VUVG-L10-B52-T-M5-1P3
€69.67Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 5/3-way, pressurised |
| Type of actuation | Electric |
| Valve size | 18 mm |
| Standard nominal flow rate | 950 l/min |
| pneumatic working port | Flange |
| Operating voltage | 24V DC |
| Operating pressure | -0.09 MPa ... 1 MPa |
| Operating pressure | -0.9 bar ... 10 bar |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | RCM trademark c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket |
| Nominal size | 6.3 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting Covered |
| Type of piloting | Pilot actuated |
| Pilot air supply | External |
| Symbol | 00991128 |
| lap | Indefinite overlap |
| Pilot pressure | 0.3 MPa ... 0.8 MPa |
| Pilot pressure | 3 bar ... 8 bar |
| Switching time off | 48 ms |
| Switching time on | 15 ms |
| Switching time reversal | 29 ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700 µs |
| Max. negative test pulse with 1 signal | 900 µs |
| Characteristic coil data | 24 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Restrictions for environmental and media temperature | -5 ... 50° C Without holding current reduction |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5 °C ... 60 °C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5 °C ... 60 °C |
| Product weight | 160 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | On manifold rail |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
| Manufacturer Nr. | VUVG-B18-P53U-ZT-F-1R8L |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568259150 |
| Weight | 0.180000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
