Festo 8022750. Pressure sensor SPAW-B11R-G12M-2P-M12
€258.14
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8022750
Manufacturer Nr.
SPAW-B11R-G12M-2P-M12
Pressure sensor
Frequently Bought Together
-
This Item:
€258.14Excl. 19% VAT , excl. Shipping Cost
-
Festo 152619. Vacuum switch VPEV-W-KL-LED-GH
€69.75Excl. 19% VAT , excl. Shipping Cost
-
Festo PEN-M5 (8625) Pe Converter
€226.95Excl. 19% VAT , excl. Shipping Cost
Total price
| Symbol | 00991165 |
| Approval | RCM trademark c UL us listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant |
| Measured variable | Relative pressure |
| Measurement method | Metal thin-film pressure sensor |
| Start value for pressure measuring range | -0.1 MPa |
| Start value for pressure measuring range | -1 bar |
| Start value for pressure measuring range | -14.5 psi |
| End value for pressure measuring range | 1 MPa |
| End value for pressure measuring range | 10 bar |
| End value for pressure measuring range | 145 psi |
| Overload pressure | 2 MPa |
| Overload pressure | 20 bar |
| Overload pressure | 290 psi |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] Liquid media Gaseous media |
| Media temperature | -20 °C ... 85 °C |
| Ambient temperature | 0 °C ... 80 °C |
| Accuracy in ± % FS | 1 %FS |
| Repetition accuracy in ± %FS | 0.15 %FS |
| Switching output | 2xPNP |
| Switching function | Freely programmable |
| Switching element function | Switchable |
| Max. output current | 250 mA |
| Rise time | 3 ms |
| Short circuit current rating | yes |
| Operational voltage range DC | 15 V ... 35 V |
| Reverse polarity protection | For operating voltage |
| Electrical connection 1, connection type | Plugs |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 4 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection pattern | 00995386 |
| Type of mounting | Via male thread |
| Mounting position | optional |
| Pneumatic connection | Male thread G1/2 |
| Product weight | 230 g |
| Material housing | ABS High-alloy stainless steel |
| Material in contact with the medium | High-alloy stainless steel |
| Material sealing ring | NBR |
| Display type | 4-place alphanumeric LED indicator |
| Displayable units | MPa bar kPa kg/cm² psi |
| Switching status indication | Red LED |
| Setting options | Via display and keys |
| Protection against tampering | PIN code |
| Setting range threshold value | 0.5 % ... 100 % |
| Setting range hysteresis | 0.5 % ... 99.5 % |
| Degree of protection | IP65 IP67 |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Manufacturer Nr. | SPAW-B11R-G12M-2P-M12 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568257514 |
| Weight | 0.290000 |
| HS-Code | 90262020 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 8035535. Pressure sensor SPAN-V1R-G18M-PNLK-PNVBA-L1
€104.34
Excl. 19% VAT ,
excl. Shipping Cost

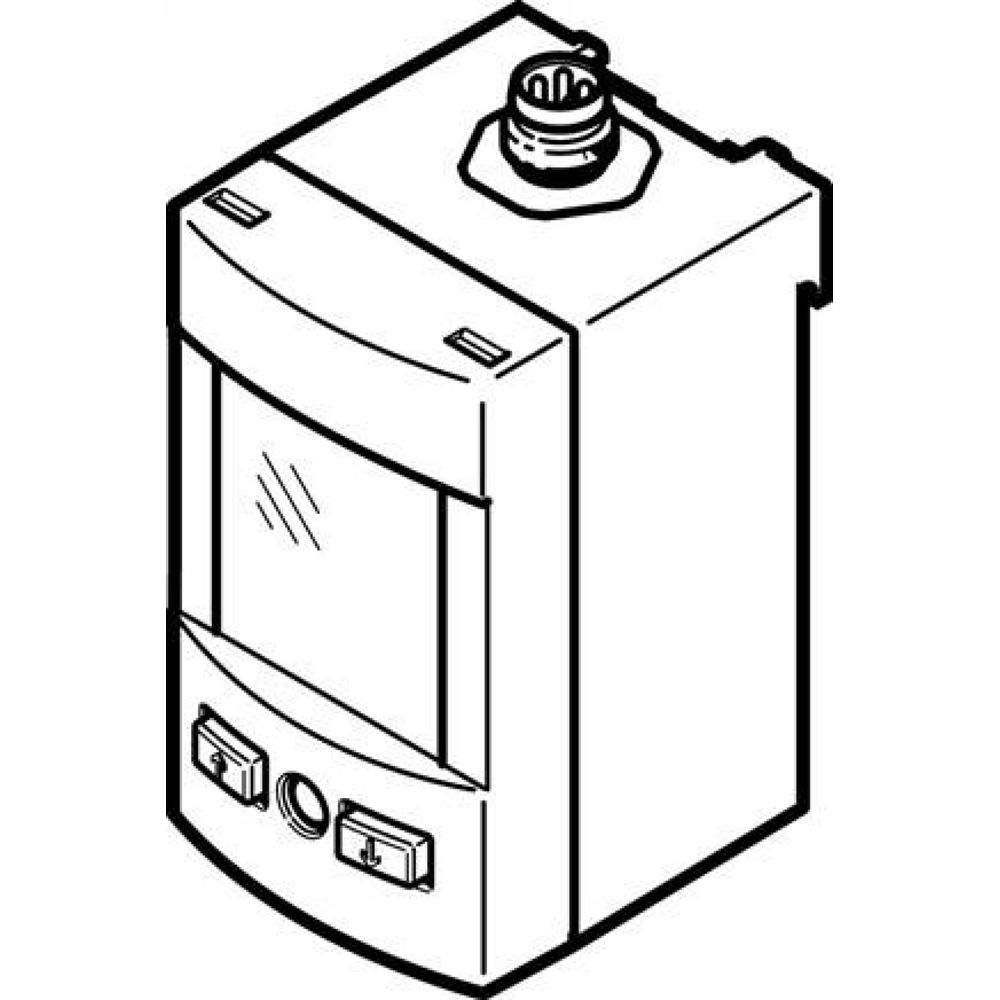

Festo 8001215. Pressure sensor SPAU-P10R-H-T532D-L-PNLK-PNVBA-M8D
