Festo 576074. Stopper cylinder DFSP-20-20-S-PA
€85.35
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-576074
Manufacturer Nr.
DFSP-20-20-S-PA
Stopper cylinder
Frequently Bought Together
-
This Item:
€85.35Excl. 19% VAT , excl. Shipping Cost
-

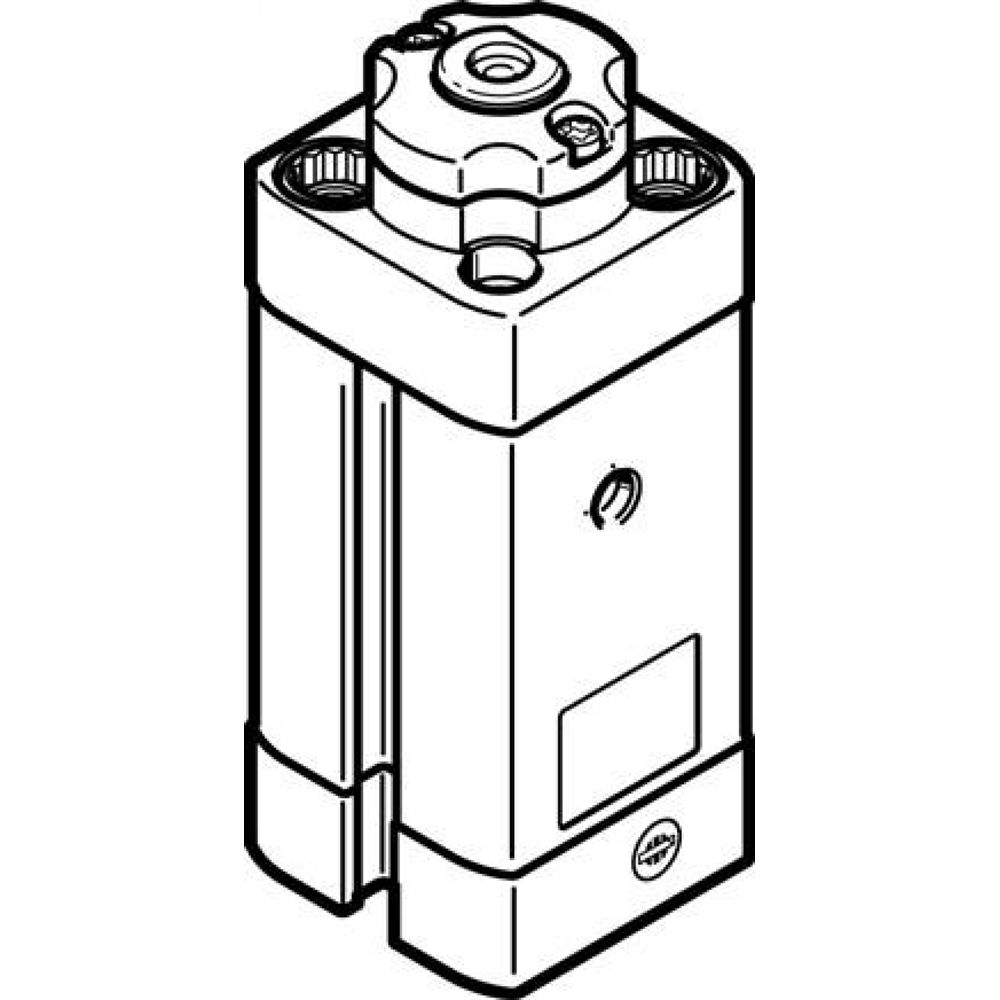

Festo 576069. Stopper cylinder DFSP-Q-16-15-DF-PA
€100.12Excl. 19% VAT , excl. Shipping Cost
-
Festo 576079. Stopper cylinder DFSP-20-15-PS-PA
€83.98Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 20 mm |
| Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting Pulling |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00995272 |
| Protection against torque/guide | Round piston rod |
| Operating pressure | 0.16 MPa ... 1 MPa |
| Operating pressure | 1.6 bar ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 80 °C |
| Impact force | 1370 N |
| Permissible lateral force during switching operation | 228 N |
| Max. cycle frequency | 5 Hz |
| Type of mounting | Either: With through-hole Via female thread With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material collar screws | Galvanised steel |
| Material cover | Wrought aluminium alloy Anodised |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material roll | Galvanised steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
| Manufacturer Nr. | DFSP-20-20-S-PA |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568224387 |
| Weight | 0.230000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
