Festo 576062. Stopper cylinder DFSP-16-10-F-PA
€81.88
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-576062
Manufacturer Nr.
DFSP-16-10-F-PA
Stopper cylinder
Frequently Bought Together
-
This Item:
€81.88Excl. 19% VAT , excl. Shipping Cost
-

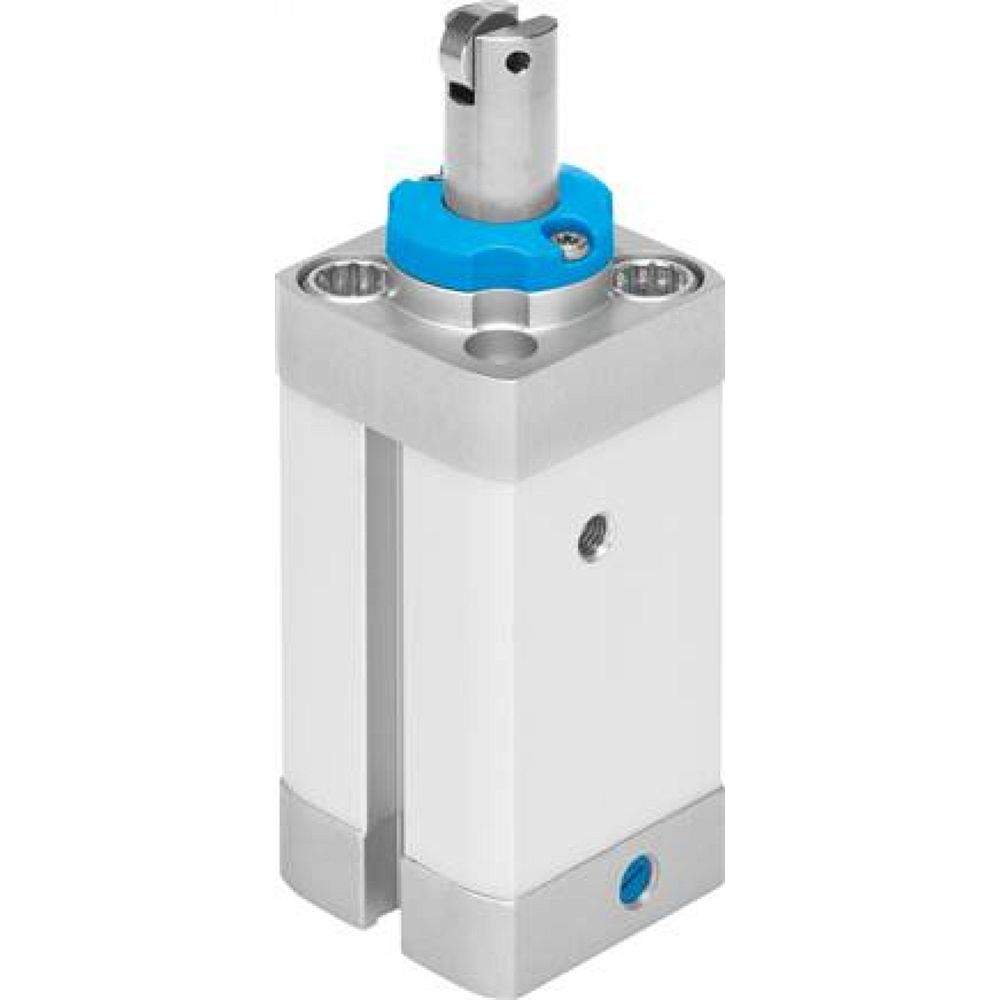

Festo 576070. Stopper cylinder DFSP-Q-16-10-PR-PA
€99.84Excl. 19% VAT , excl. Shipping Cost
-
Festo 576105. Stopper cylinder DFSP-32-15-F-PA
€104.84Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 10 mm |
| Piston diameter | 16 mm |
| Piston rod thread | M3 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting Pulling |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Piston-rod end | Female thread |
| Symbol | 00995272 |
| Protection against torque/guide | Round piston rod |
| Operating pressure | 0.28 MPa ... 1 MPa |
| Operating pressure | 2.8 bar ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 80 °C |
| Impact force | 880 N |
| Permissible lateral force during switching operation | 147 N |
| Max. cycle frequency | 5 Hz |
| Type of mounting | Either: With through-hole Via female thread With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material collar screws | High-alloy stainless steel |
| Material cover | Wrought aluminium alloy Anodised |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material roll | Galvanised steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
| Manufacturer Nr. | DFSP-16-10-F-PA |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568224264 |
| Weight | 0.125000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
