Festo 578279. Push-in L-fitting NPQH-L-M7-Q6-P10
€3.44
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-578279
Manufacturer Nr.
NPQH-L-M7-Q6-P10
Push-in L-fitting
Festo 578279. Push-in L-fitting NPQH-L-M7-Q6-P10 is available to buy in increments of 10
Frequently Bought Together
-
This Item:
€3.44Excl. 19% VAT , excl. Shipping Cost
-

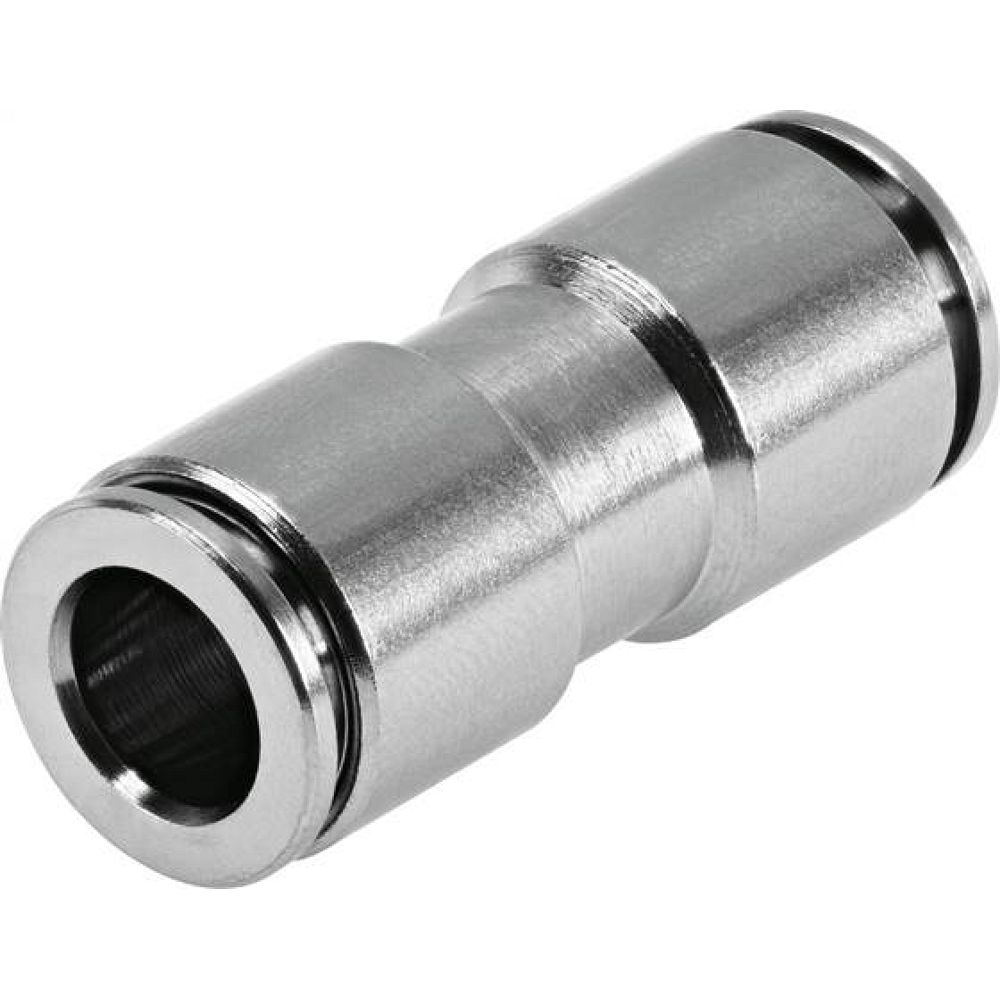

Festo 578323. Connector NPQH-D-Q4-E-P10
€2.73Excl. 19% VAT , excl. Shipping Cost
-
Festo 578295. Bulkhead fitting NPQH-H-G18F-Q6-P10
€4.69Excl. 19% VAT , excl. Shipping Cost
Total price
| Size | Standard |
| Nominal size | 3.25 mm |
| Tubing insertion depth | 15.8 mm |
| Type of seal on screwed plug | Sealing ring |
| Mounting position | optional |
| Design | L-shape |
| Size of pack | 10 |
| Design | Push-pull principle |
| Symbol | 00997424 |
| Operating pressure complete temperature range | -0.095 MPa ... 2 MPa |
| Operating pressure complete temperature range | -0.95 bar ... 20 bar |
| Operating pressure complete temperature range | -13.775 psi ... 290 psi |
| Note on operating pressure | Water: max. 0.6 MPa at 0 - 50 °C |
| Certificate issuing authority | NSF C0523185 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Suitable for use with food | See declaration of conformity NSF/ANSI 169 |
| Ambient temperature | 0 °C ... 150 °C |
| Nominal torque | 3 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 12.5 g |
| Type of mounting | External hexagon, A/F 9 mm |
| Pneumatic connection, port 1 | Male thread M7 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Note on materials | RoHS-compliant |
| Material housing | Brass, chemically nickel-plated |
| Material thread seal | FPM |
| Guard ring material | PEI |
| Material release ring | Brass, chemically nickel-plated |
| Material tubing seal | FPM |
| Material tubing clamp component | High-alloy stainless steel |
| Thrust ring material | PEI |
| Manufacturer Nr. | NPQH-L-M7-Q6-P10 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568059828 |
| Weight | 0.013000 |
| HS-Code | 74122000 |
| Article authenticity | Original product |
| Condition of article | New |
