Festo 578270. Push-in L-connector NPQH-L-Q4-E-P10

Name: Festo 578270. Push-in L-connector NPQH-L-Q4-E-P10
Brand: Festo
SKU: FES-578270
Price: 2.83 EUR
Availability: InStock

€2.83

Excl. 19% VAT , excl. Shipping Cost

Article

FES-578270

Manufacturer Nr.

NPQH-L-Q4-E-P10

Push-in L-connector

Festo 578270. Push-in L-connector NPQH-L-Q4-E-P10 is available to buy in increments of 10

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 578270. Push-in L-connector NPQH-L-Q4-E-P10
€2.83
Excl. 19% VAT , excl. Shipping Cost
Festo 578364. Push-in fitting NPQH-D-G14-S8-P10
€1.41
Excl. 19% VAT , excl. Shipping Cost

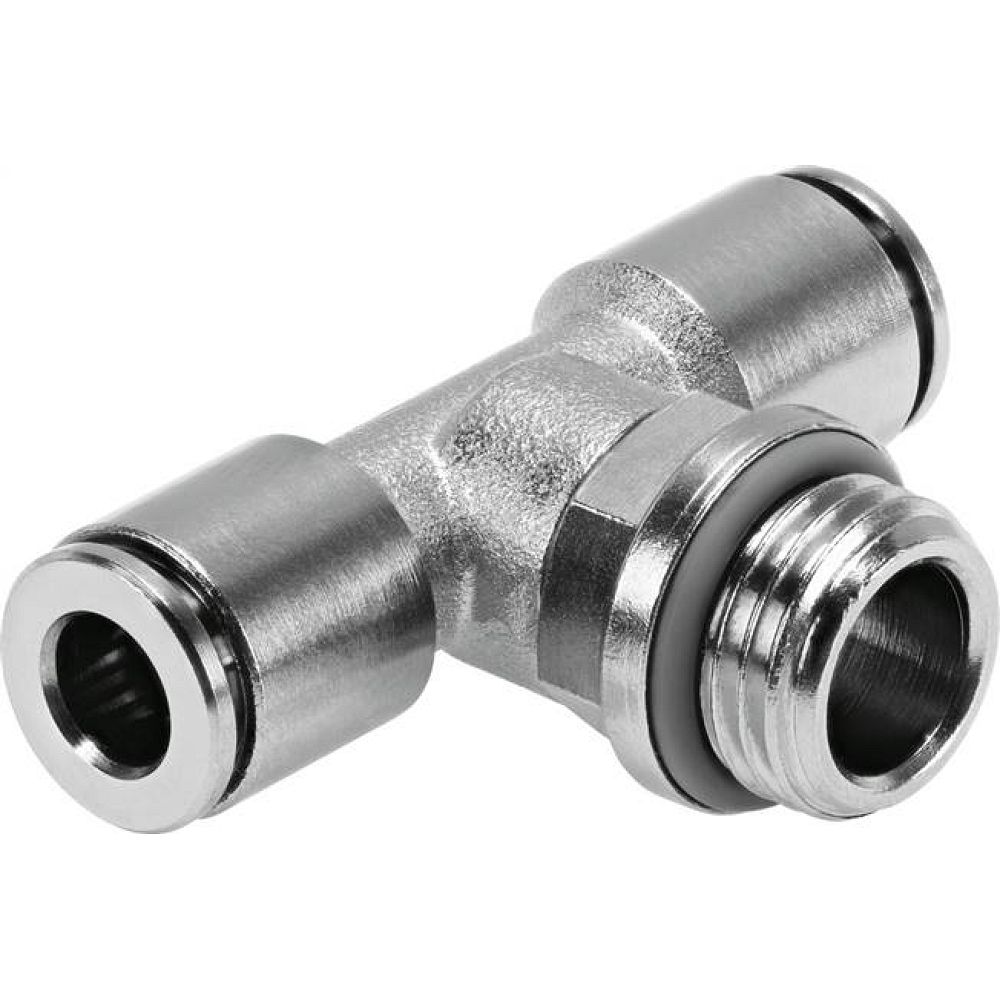

Festo 578403. Push-in T-fitting NPQH-T-G12-Q12-P10
€11.44
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	Standard
Nominal size	3 mm
Tubing insertion depth	13 mm
Mounting position	optional
Design	L-shape
Size of pack	10
Design	Push-pull principle
Symbol	00997424
Operating pressure complete temperature range	-0.095 MPa ... 2 MPa
Operating pressure complete temperature range	-0.95 bar ... 20 bar
Operating pressure complete temperature range	-13.775 psi ... 290 psi
Note on operating pressure	Water: max. 0.6 MPa at 0 - 50 °C
Certificate issuing authority	NSF C0523185
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1
Suitable for use with food	See declaration of conformity NSF/ANSI 169
Ambient temperature	0 °C ... 150 °C
Product weight	8.9 g
Pneumatic connection, port 1	For tubing outer diameter of 4 mm
Pneumatic connection, port 2	For tubing outside diameter of 4 mm
Note on materials	RoHS-compliant
Material housing	Brass, chemically nickel-plated
Guard ring material	PEI
Material release ring	Brass, chemically nickel-plated
Material tubing seal	FPM
Material tubing clamp component	High-alloy stainless steel
Thrust ring material	PEI

More Information
Manufacturer Nr.	NPQH-L-Q4-E-P10
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568059736
Weight	0.009600
HS-Code	74122000
Article authenticity	Original product
Condition of article	New
