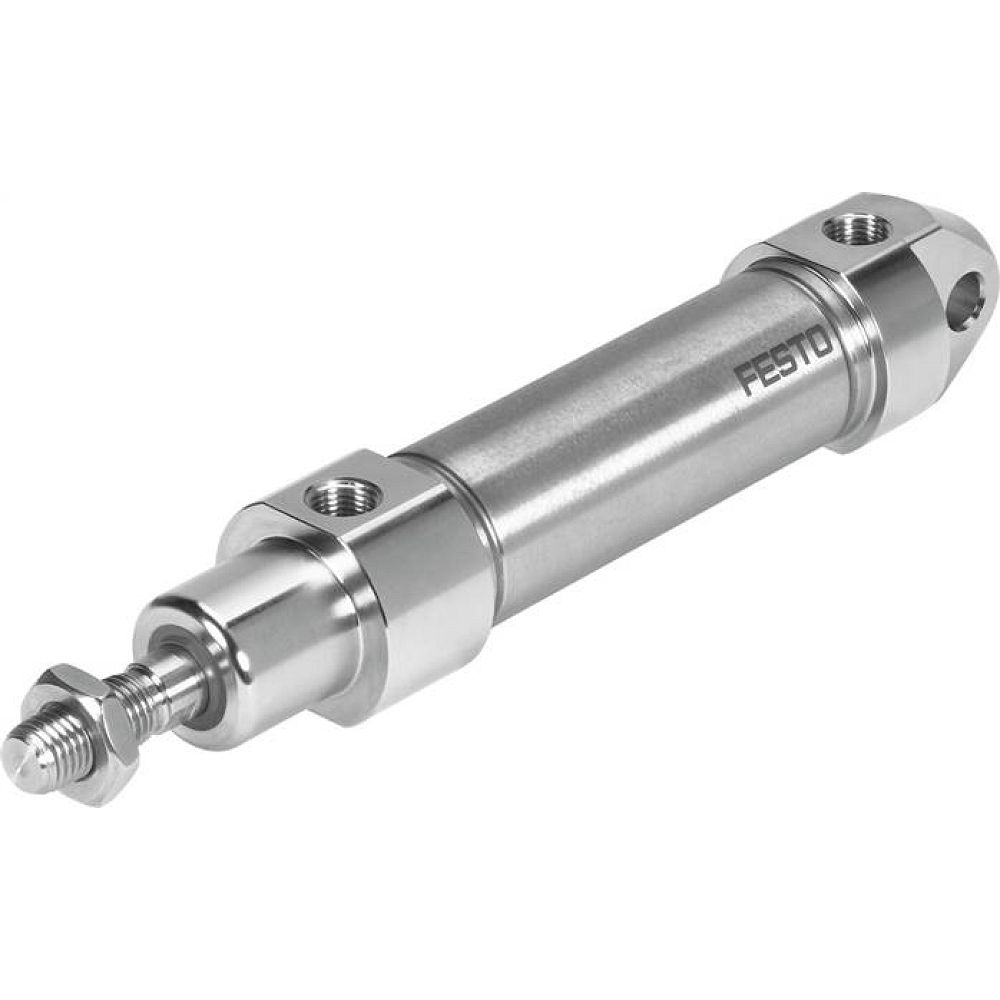

Festo 2159643. ISO cylinder CRDSNU-B-25-160-PPS-A-MG-A1
€132.94
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-2159643
Manufacturer Nr.
CRDSNU-B-25-160-PPS-A-MG-A1
ISO cylinder
Frequently Bought Together
-
This Item:
€132.94Excl. 19% VAT , excl. Shipping Cost
-
Festo 8073762. ISO cylinder CRDSNU-B-16-50-P-A-MG-A1
€87.15Excl. 19% VAT , excl. Shipping Cost
-
Festo 2159637. ISO cylinder CRDSNU-B-25-25-PPS-A-MG-A1
€128.66Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 160 mm |
| Piston diameter | 25 mm |
| Based on standard | ISO 6432 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00992970 |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Ambient temperature | 0 °C ... 80 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 247 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 295 N |
| Moving mass for 0 mm stroke | 73 g |
| Additional moving mass per 10 mm stroke | 6.2 g |
| Basic weight for 0 mm stroke | 410 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | High-alloy stainless steel |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Manufacturer Nr. | CRDSNU-B-25-160-PPS-A-MG-A1 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568252502 |
| Weight | 0.550000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
