Festo 8005067. Semi-rotary drive DAPS-0960-090-RS1-F1216-MW
€3,272.54
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8005067
Manufacturer Nr.
DAPS-0960-090-RS1-F1216-MW
Semi-rotary drive
Frequently Bought Together
-
This Item:
€3,272.54Excl. 19% VAT , excl. Shipping Cost
-
Festo 549695. Semi-rotary drive DAPS-2880-090-RS3-F16
€10,558.04Excl. 19% VAT , excl. Shipping Cost
-
Festo 549682. Semi-rotary drive DAPS-0720-090-RS2-F14
€2,091.45Excl. 19% VAT , excl. Shipping Cost
Total price
| Size of valve actuator | 0960 |
| Flange hole pattern | F12 F16 |
| Swivel angle | 92 deg |
| Shaft connection depth | 48.5 mm |
| Note on end-position adjusting range | One end position optionally adjustable |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Mounting position | optional |
| Mode of operation | Single-acting |
| Design | Scotch yoke system |
| Position detection | Without |
| Closing direction | Closes to the right |
| Symbol | 00991266 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Safety Integrity Level (SIL) | Up to SIL 2 High Demand mode To SIL 2 Low Demand mode |
| Supply pressure for spring strength | 0.28 MPa |
| Supply pressure for spring strength | 2.8 bar |
| Operating pressure | 0.28 MPa ... 0.84 MPa |
| Operating pressure | 2.8 bar ... 8.4 bar |
| Nominal operating pressure | 0.56 MPa |
| Nominal operating pressure | 5.6 bar |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| CE marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Certificate issuing authority | German Technical Control Board North (TÜV Nord) 212170801 |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T6...T3 Gb X |
| Explosion ignition protection type for dust | Ex h IIIC T85°C...T200°C Db X |
| Explosion ambient temperature | -50°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Spring return torque at 0° swivel angle | 320 Nm |
| Spring return torque at 50° swivel angle | 240 Nm |
| Spring return torque at 90° swivel angle | 480 Nm |
| Spring strength | 1 |
| Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0° | 41.3 l |
| Product weight | 50600 g |
| Shaft connection | T46 |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | FPM NBR PUR |
| Material housing | Wrought aluminium alloy |
| Material screws | High-alloy steel |
| Material shaft | High-alloy steel |
| Material number shaft | 1.4305 |
| Manufacturer Nr. | DAPS-0960-090-RS1-F1216-MW |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568257163 |
| Weight | 0.100000 |
| HS-Code | 84123900 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 8005060. Semi-rotary drive DAPS-0720-090-RS2-F12-MW
€2,651.32
Excl. 19% VAT ,
excl. Shipping Cost

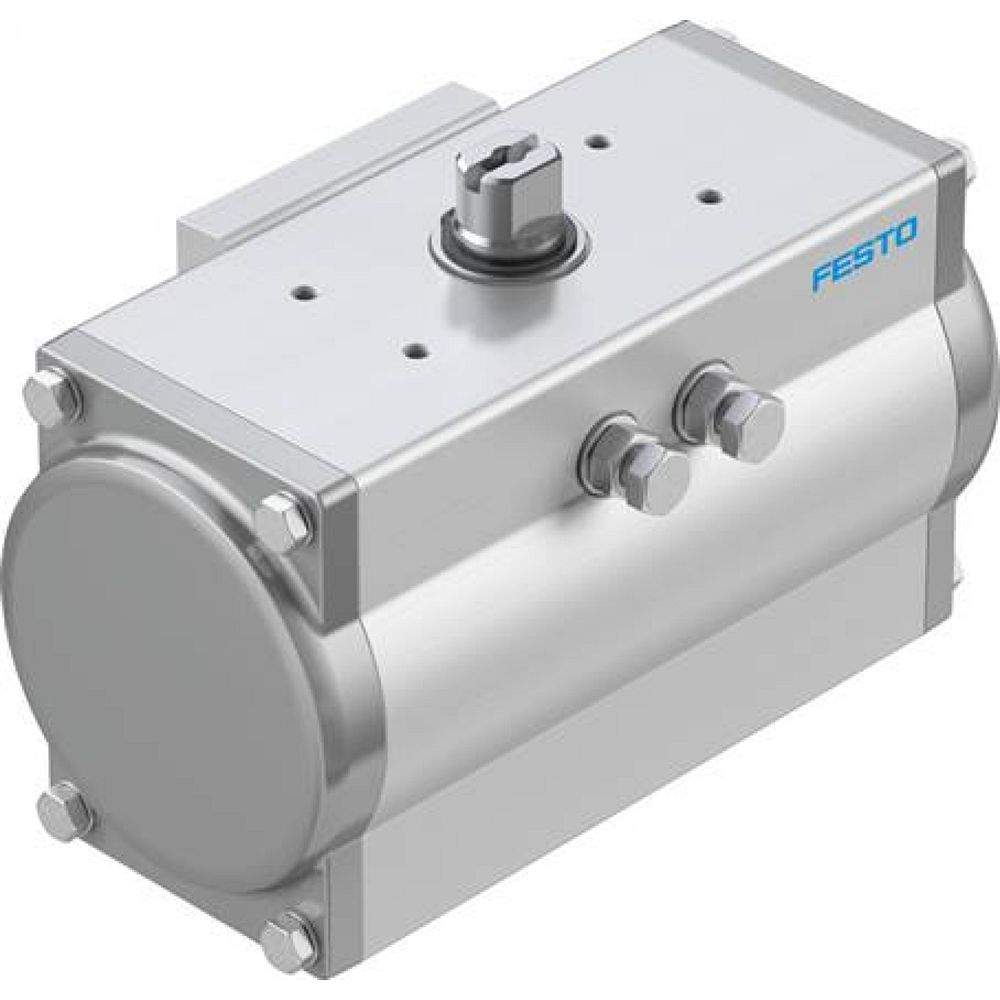

Festo 8047620. Semi-rotary drive DFPD-80-RP-90-RD-F0507-R3-EP
€203.39
Excl. 19% VAT ,
excl. Shipping Cost
Festo 8048123. Semi-rotary drive DFPD-120-RP-90-RD-F0507
€216.21
Excl. 19% VAT ,
excl. Shipping Cost

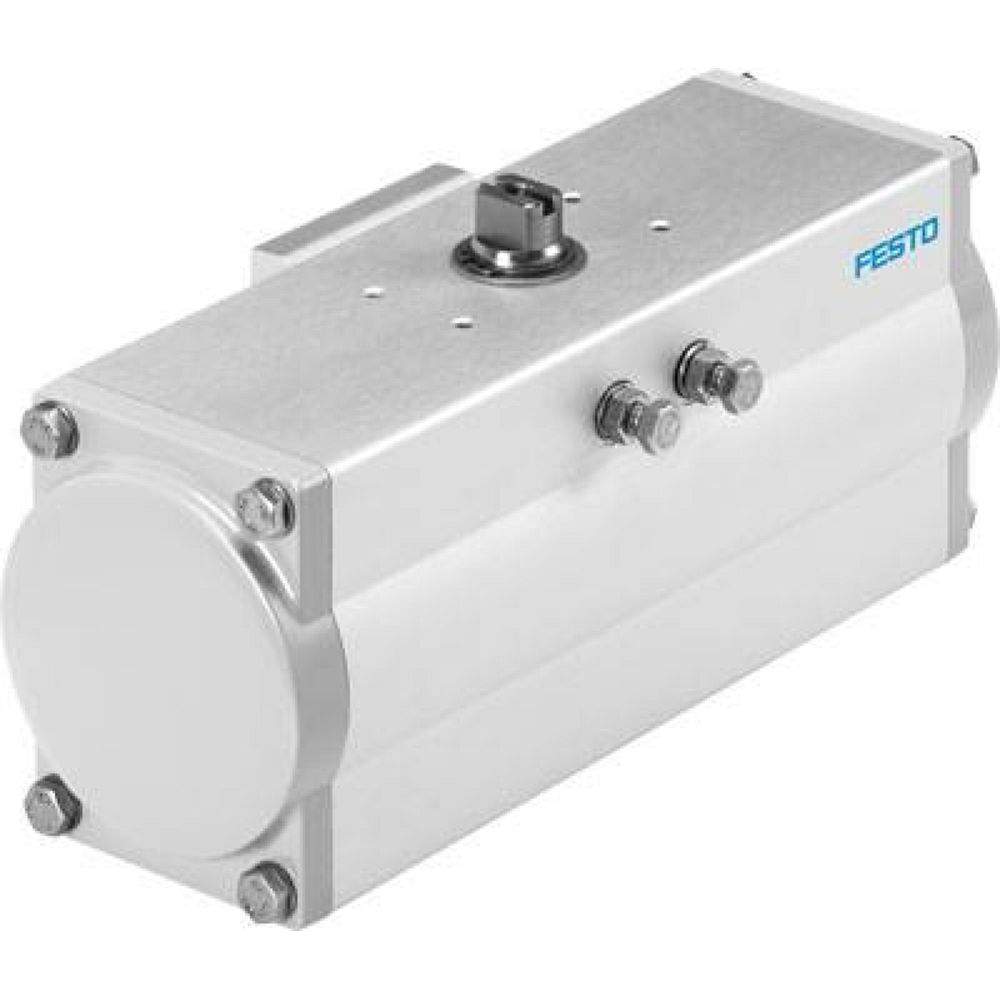

Festo 8065339. Semi-rotary drive DFPD-120-RP-180-RD-F0507
