Festo DAPS-0960-090-RS3-F1216-MW (8005071) Semi-Rotary Drive
€3,369.17
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8005071
Manufacturer Nr.
DAPS-0960-090-RS3-F1216-MW
Semi-Rotary Drive
Frequently Bought Together
-
This Item:
€3,369.17Excl. 19% VAT , excl. Shipping Cost
-
Festo 8005019. Semi-rotary drive DAPS-0720-090-R-F1012-MW-T6
€1,662.14Excl. 19% VAT , excl. Shipping Cost
-
Festo 549676. Semi-rotary drive DAPS-0360-090-RS4-F1012
€1,183.05Excl. 19% VAT , excl. Shipping Cost
Total price
| Position drive dimensions | 0960 |
| Flange drilling screen | F12 F16 |
| Swivel angle [deg] | 92 |
| Shaft connection Depth [mm] | 48,5 |
| Standard connection to fitting | ISO 5211 |
| Dampening | No dampening |
| installation position | arbitrary |
| Principle of operation | single action |
| Construction set up | Joch kinematics |
| Position detection | without |
| Closing direction | Right closing |
| Valve connection corresponds to standard | VDI/VDE 3845 (NAMUR) |
| Safety Integrity Level (SIL) | Product can be used in SRP/CS up to SIL 2 Low Demand Product can be used in SRP/CS up to SIL 2 High Demand |
| Operating pressure [bar] | 4.2 to 8.4 |
| Nominal operating pressure [bar] | 5,6 |
| CE certificate (see declaration of conformity) | to EU EX protection directive (ATEX) |
| ATEX gas category | II 2G |
| ATEX dust category | II 2D |
| Ex ignition protection type gas | Ex h IIC T6...T3 Gb X |
| Ex ignition protection type dust | Ex h IIIC T85°C...T200°C Db X |
| Ex ambient temperature | -50°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Rotary torque for nominal operating pressure and 0° pivot angle [Nm] | 1.120,0 |
| Rotary torque for nominal operating pressure and 50° pivot angle [Nm] | 600,0 |
| Rotary torque for nominal operating pressure and 90° pivot angle [Nm] | 880,0 |
| Air consumption a 6 bar per cycle 0°-90°-0° [LTR] | 41,30 |
| Product weight [g] | 50.600 |
| Shaft connection | T46 |
| Pneumatic connection | G1/4 |
| Material information | RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | FKM NBR PUR |
| Housing material | Aluminium wrought alloy |
| Screws material | High-alloyed steel |
| Shaft material | High-alloyed steel |
| Material number shaft | 1.4305 |
| Information about the adjustment range of the end positions | Selectively one end position is adjustable |
| Connection pressure for spring strength [bar] | 4,2 |
| Spring force torque at a swivel angle 0° [Nm] | 480,0 |
| Spring force torque at a swivel angle 50° [Nm] | 360,0 |
| Spring force torque at 90° [Nm] | 720,0 |
| Spring strength | 3 |
| Manufacturer Nr. | DAPS-0960-090-RS3-F1216-MW |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568257200 |
| Weight | 0.100000 |
| HS-Code | 84123900 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo DAPS-0060-090-R-F04-T4 (8030603) Semi-Rotary Drive
€224.07
Excl. 19% VAT ,
excl. Shipping Cost
Festo 553189. Semi-rotary drive DAPS-3840-090-R-F16-T6
€5,484.15
Excl. 19% VAT ,
excl. Shipping Cost
Festo 8030624. Semi-rotary drive DAPS-0480-090-RS4-F14-T4
€1,472.12
Excl. 19% VAT ,
excl. Shipping Cost
Festo DAPS-0480-090-R-F0710-CR (552874) Semi-Rotary Drive
€1,944.66
Excl. 19% VAT ,
excl. Shipping Cost

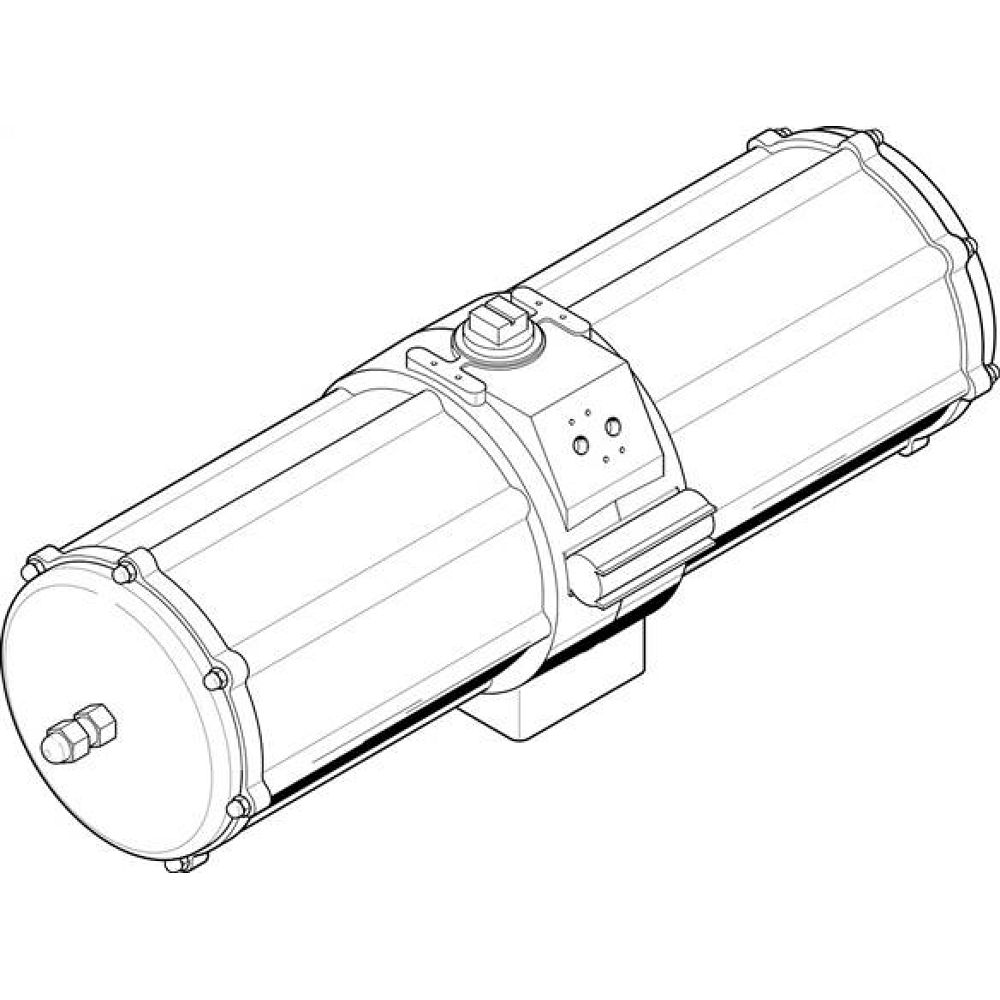

Festo 549694. Semi-rotary drive DAPS-2880-090-RS2-F16
