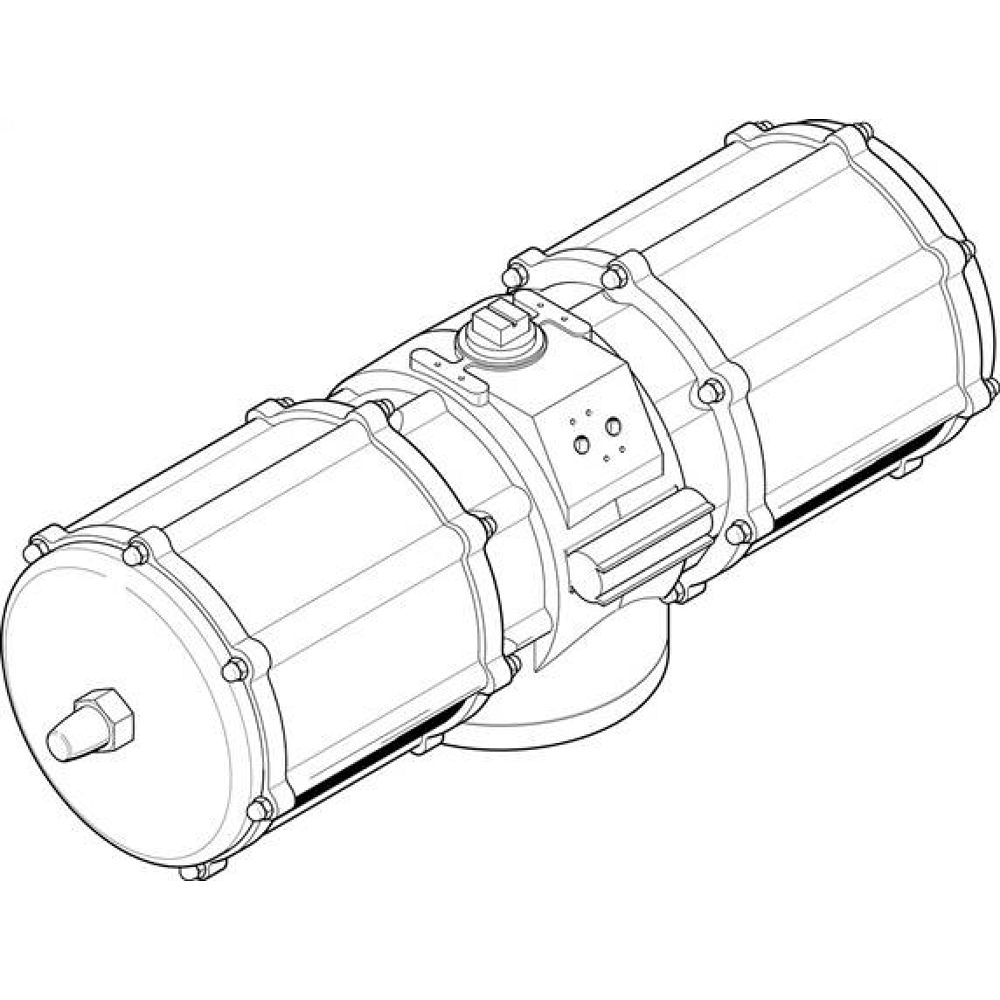

Festo 8005013. Semi-rotary drive DAPS-1920-090-R-F1216-MW
€3,449.66
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8005013
Manufacturer Nr.
DAPS-1920-090-R-F1216-MW
Semi-rotary drive
Frequently Bought Together
-
This Item:
€3,449.66Excl. 19% VAT , excl. Shipping Cost
-
Festo DAPS-0480-090-RS3-F1012-MW (8005054) Semi-Rotary Drive
€2,048.18Excl. 19% VAT , excl. Shipping Cost
-
Festo DAPS-0030-090-RS2-F0507-T6 (553194) Semi-Rotary Drive
€267.60Excl. 19% VAT , excl. Shipping Cost
Total price
| Size of valve actuator | 1920 |
| Flange hole pattern | F12 F16 |
| Swivel angle | 92 deg |
| Shaft connection depth | 48.5 mm |
| Fitting connection conforms to standard | ISO 5211 |
| Cushioning | No cushioning |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Scotch yoke system |
| Position detection | Without |
| Closing direction | Closes to the right |
| Symbol | 00991265 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Safety Integrity Level (SIL) | Up to SIL 2 High Demand mode To SIL 2 Low Demand mode |
| Operating pressure | 0.1 MPa ... 0.84 MPa |
| Operating pressure | 1 bar ... 8.4 bar |
| Nominal operating pressure | 0.56 MPa |
| Nominal operating pressure | 5.6 bar |
| CE mark (see declaration of conformity) | To EU Explosion Protection Directive (ATEX) |
| CE marking (see declaration of conformity) | To UK EX instructions |
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Certificate issuing authority | German Technical Control Board North (TÜV Nord) 212170801 |
| ATEX category gas | II 2G |
| ATEX category dust | II 2D |
| Explosion ignition protection type for gas | Ex h IIC T6...T3 Gb X |
| Explosion ignition protection type for dust | Ex h IIIC T85°C...T200°C Db X |
| Explosion ambient temperature | -20°C <= Ta <= +60°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Torque at nominal operating pressure and 0° swivel angle | 1920 Nm |
| Torque at nominal operating pressure and 50° swivel angle | 960 Nm |
| Torque at nominal operating pressure and 90° swivel angle | 1440 Nm |
| Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0° | 90.3 l |
| Product weight | 43000 g |
| Shaft connection | T46 |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | FPM NBR PUR |
| Material housing | Wrought aluminium alloy |
| Material screws | High-alloy steel |
| Material shaft | High-alloy steel |
| Material number shaft | 1.4305 |
| Manufacturer Nr. | DAPS-1920-090-R-F1216-MW |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568256623 |
| Weight | 0.100000 |
| HS-Code | 84123900 |
| Article authenticity | Original product |
| Condition of article | New |
