Festo 553228. Semi-rotary drive DAPS-2880-090-RS3-F16-T6

Name: Festo 553228. Semi-rotary drive DAPS-2880-090-RS3-F16-T6
Brand: Festo
SKU: FES-553228
Price: 11800.27 EUR
Availability: InStock

€11,800.27

Excl. 19% VAT , excl. Shipping Cost

Article

FES-553228

Manufacturer:

Manufacturer Nr.

DAPS-2880-090-RS3-F16-T6

Semi-rotary drive

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 553228. Semi-rotary drive DAPS-2880-090-RS3-F16-T6
€11,800.27
Excl. 19% VAT , excl. Shipping Cost

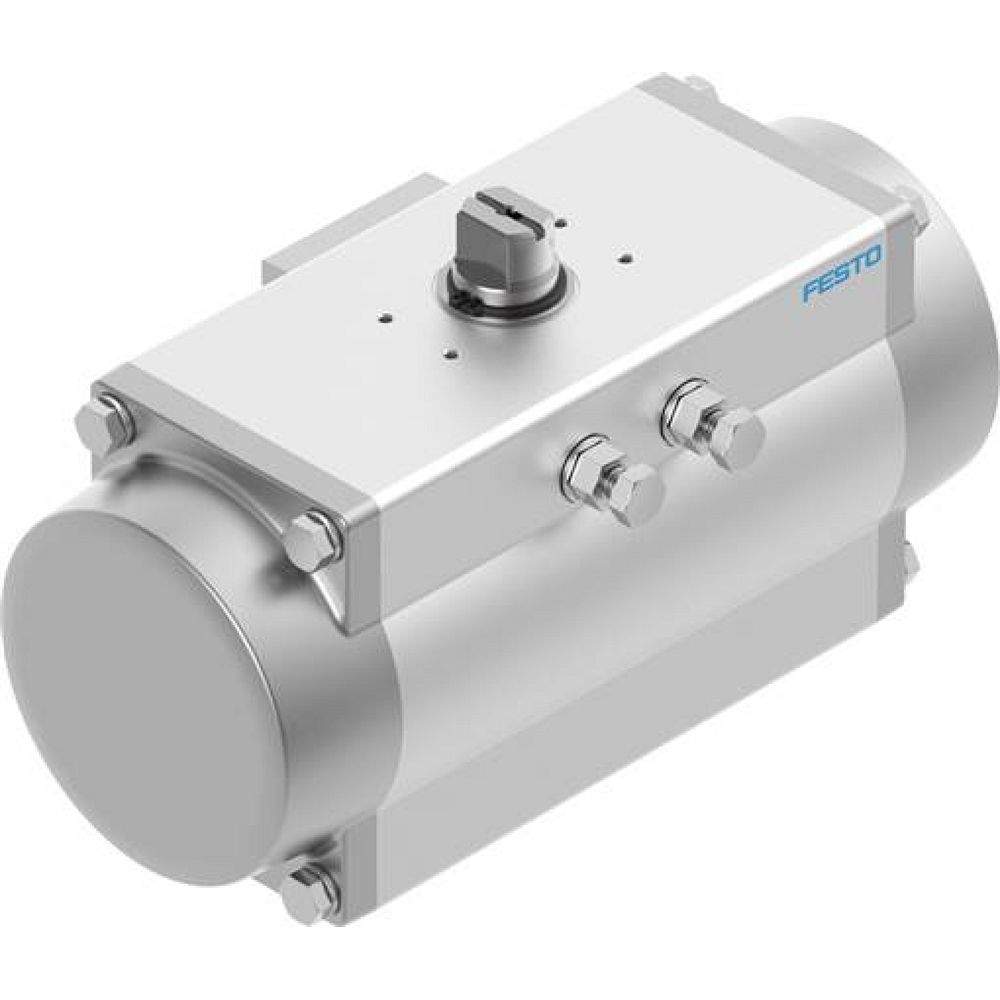

Festo 8048140. Semi-rotary drive DFPD-300-RP-90-RS60-F0710
€371.75
Excl. 19% VAT , excl. Shipping Cost
Festo 533455. Semi-rotary drive DAPS-0480-090-RS1-F1012
€1,425.30
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Downloads

Size of valve actuator	2880
Flange hole pattern	F16
Swivel angle	90 deg
End-position adjustment range at 0°	-5 deg ... 5 deg
End-position adjustment range at nominal swivel angle	85 deg ... 95 deg
Shaft connection depth	49.5 mm
Fitting connection conforms to standard	ISO 5211
Cushioning	No cushioning
Mounting position	optional
Mode of operation	Single-acting
Design	Scotch yoke system
Position detection	Without
Closing direction	Closes to the right
Symbol	00991266
Valve connection conforms to standard	VDI/VDE 3845 (NAMUR)
Safety Integrity Level (SIL)	Up to SIL 2 High Demand mode To SIL 2 Low Demand mode
Supply pressure for spring strength	0.42 MPa
Supply pressure for spring strength	4.2 bar
Operating pressure	0.42 MPa ... 0.84 MPa
Operating pressure	4.2 bar ... 8.4 bar
Nominal operating pressure	0.56 MPa
Nominal operating pressure	5.6 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)	1 Hz
CE mark (see declaration of conformity)	To EU Explosion Protection Directive (ATEX)
CE marking (see declaration of conformity)	To UK EX instructions
Explosion protection	Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Certificate issuing authority	German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas	II 2G
ATEX category dust	II 2D
Explosion ignition protection type for gas	Ex h IIC T6...T3 Gb X
Explosion ignition protection type for dust	Ex h IIIC T85°C...T200°C Db X
Explosion ambient temperature	-50°C <= Ta <= +60°C
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Ambient temperature	-50 °C ... 60 °C
Torque at nominal operating pressure and 0° swivel angle	3360 Nm
Torque at nominal operating pressure and 50° swivel angle	1800 Nm
Torque at nominal operating pressure and 90° swivel angle	2640 Nm
Note on torque	The operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.
Spring return torque at 0° swivel angle	1440 Nm
Spring return torque at 50° swivel angle	1080 Nm
Spring return torque at 90° swivel angle	2160 Nm
Spring strength	3
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°	147 l
Product weight	117000 g
Shaft connection	T46
Pneumatic connection	G3/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material seals	FVMQ PTFE reinforced
Material housing	Wrought aluminium alloy
Material screws	High-alloy steel
Material shaft	High-alloy steel
Material number shaft	1.4305

More Information
Manufacturer Nr.	DAPS-2880-090-RS3-F16-T6
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568196059
Weight	0.100000
HS-Code	84123900
Article authenticity	Original product
Condition of article	New
