Festo 1002518. Angle seat valve VZXF-L-M22C-M-A-G114-310-M1-V4V4T-50-9
€370.95
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-1002518
Manufacturer Nr.
VZXF-L-M22C-M-A-G114-310-M1-V#
Angle seat valve
Frequently Bought Together
-
This Item:
€370.95Excl. 19% VAT , excl. Shipping Cost
-
Festo 534308. Ball valve VAPB-1 1/2-F-25-F0405
€59.35Excl. 19% VAT , excl. Shipping Cost
-
Festo 4810859. Ball valve VZBF-3-P1-20-D-2-F0710-V15V15
€670.38Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | Poppet valve with piston drive |
| Type of actuation | Pneumatic |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of mounting | In-line installation |
| Line connection | Threaded coupling G1 1/4 to DIN ISO 228 |
| Nominal size | 31 mm |
| Valve function | 2/2-way, closed, monostable |
| Flow direction | Non-reversible |
| Medium pressure | 0 MPa ... 0.9 MPa |
| Medium pressure | 0 bar ... 9 bar |
| Nominal pressure PN | 40 |
| Exhaust-air function | Without flow control option |
| Type of reset | Mechanical spring |
| Type of piloting | Externally controlled |
| Pneumatic connection | Female thread G1/8 |
| Operating pressure | 0.6 MPa ... 1 MPa |
| Operating pressure | 6 bar ... 10 bar |
| Operating pressure | 87 psi ... 145 psi |
| Symbol | 00991367 |
| Medium | Vapour Inert gases Filtered compressed air, grade of filtration 200 µm |
| Direction of flow | Above valve seat, for gaseous media |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Max. viscosity | 600 mm²/s |
| Media temperature | -40 °C ... 200 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Flow rate Kv | 18.5 m³/h |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material process valve housing | Stainless steel casting |
| Material number process valve housing | 1.4408 |
| Material spindle seal | PTFE |
| Material seat seal | PTFE |
| Product weight | 2200 g |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| CE marking (see declaration of conformity) | to UK Pressure Equipment Regulations |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| Material drive housing | High-alloy stainless steel |
| Manufacturer Nr. | VZXF-L-M22C-M-A-G114-310-M1-V# |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568271244 |
| Weight | 2.500000 |
| HS-Code | 84818073 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

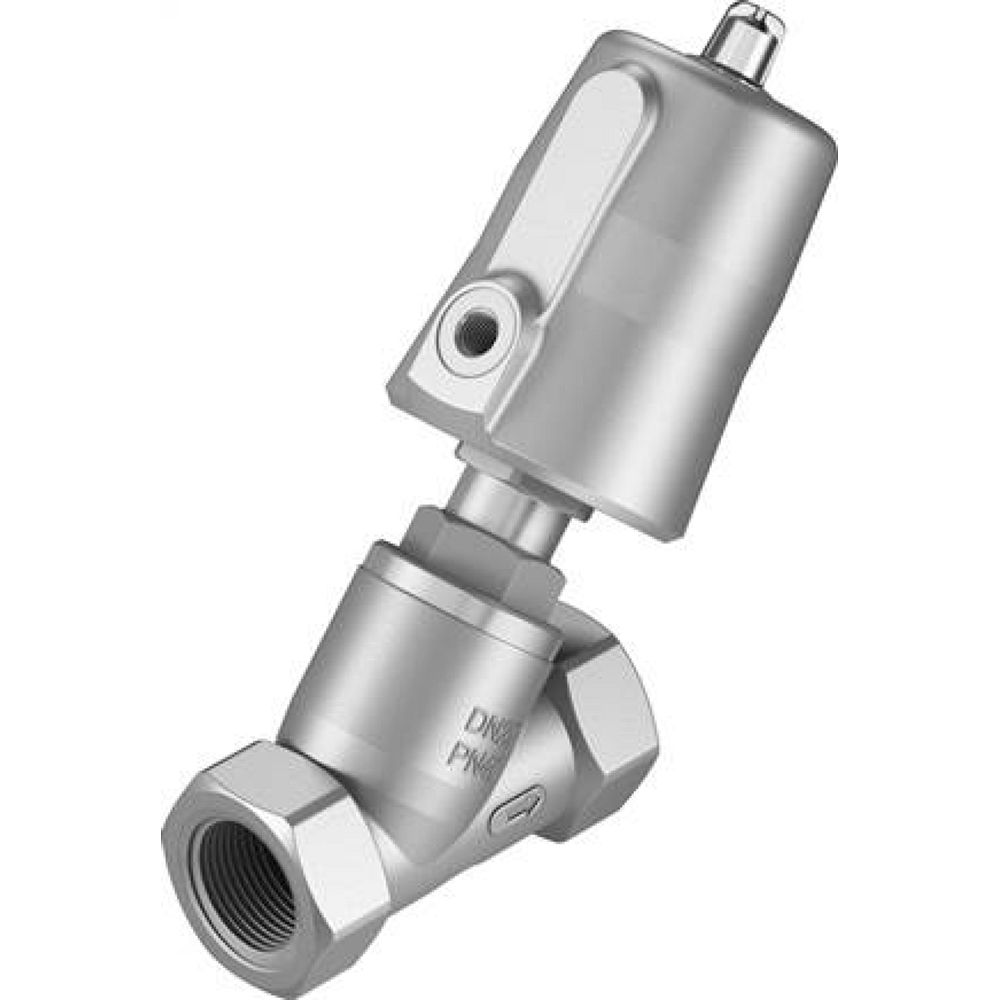

Festo 3539783. Angle seat valve VZXF-L-M22C-M-B-G1-240-M1-V4B2T-50-10
€232.87
Excl. 19% VAT ,
excl. Shipping Cost

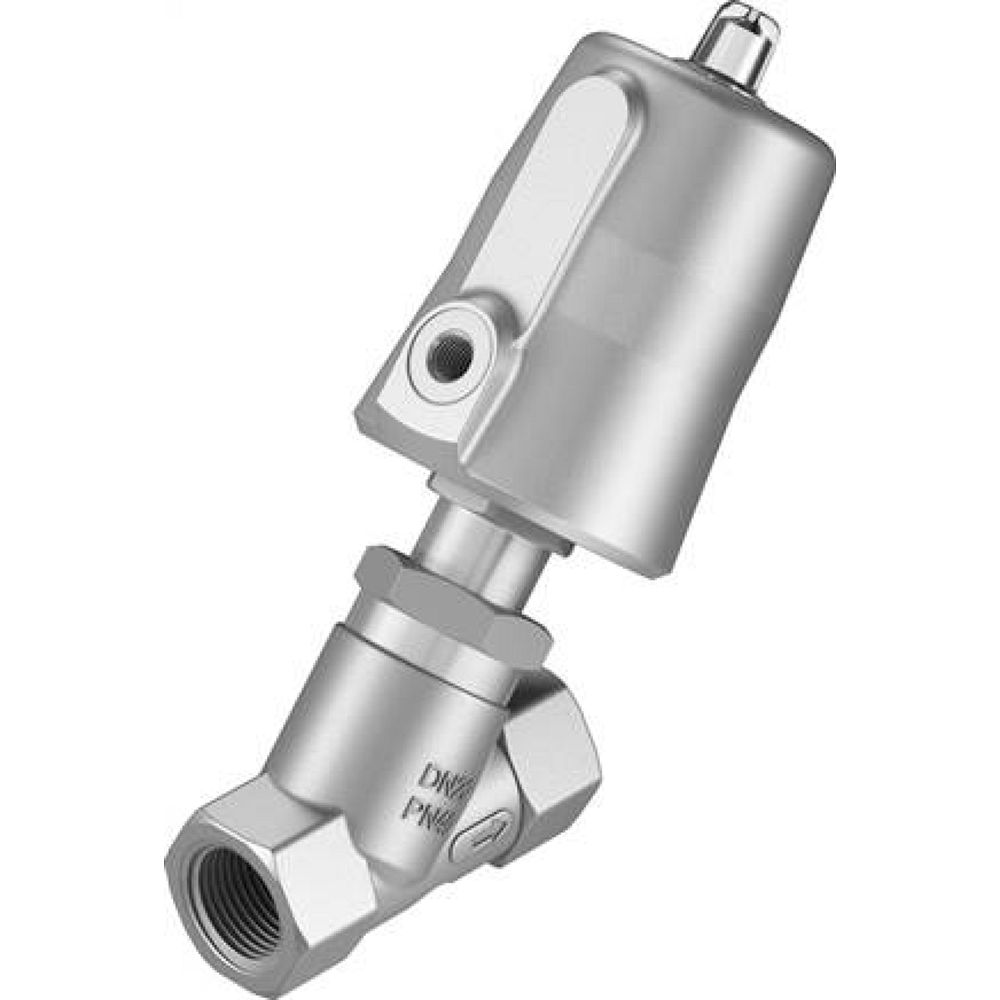

Festo 1002515. Angle seat valve VZXF-L-M22C-M-B-G34-180-M1-V4V4T-50-20
€230.37
Excl. 19% VAT ,
excl. Shipping Cost

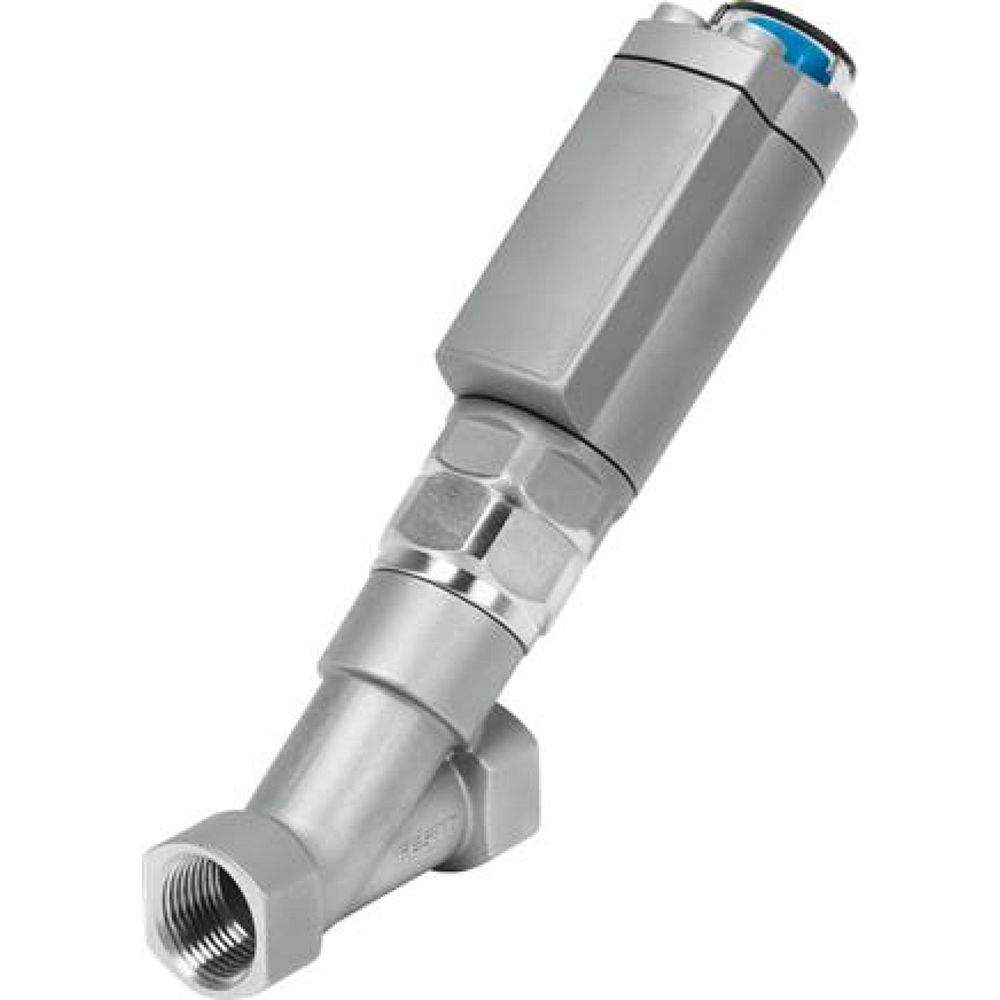

Festo 8060542. Angle seat valve VZXA-B-TS7-3/4"-M2-V14T-12.8-K-46-17-V4
€272.13
Excl. 19% VAT ,
excl. Shipping Cost

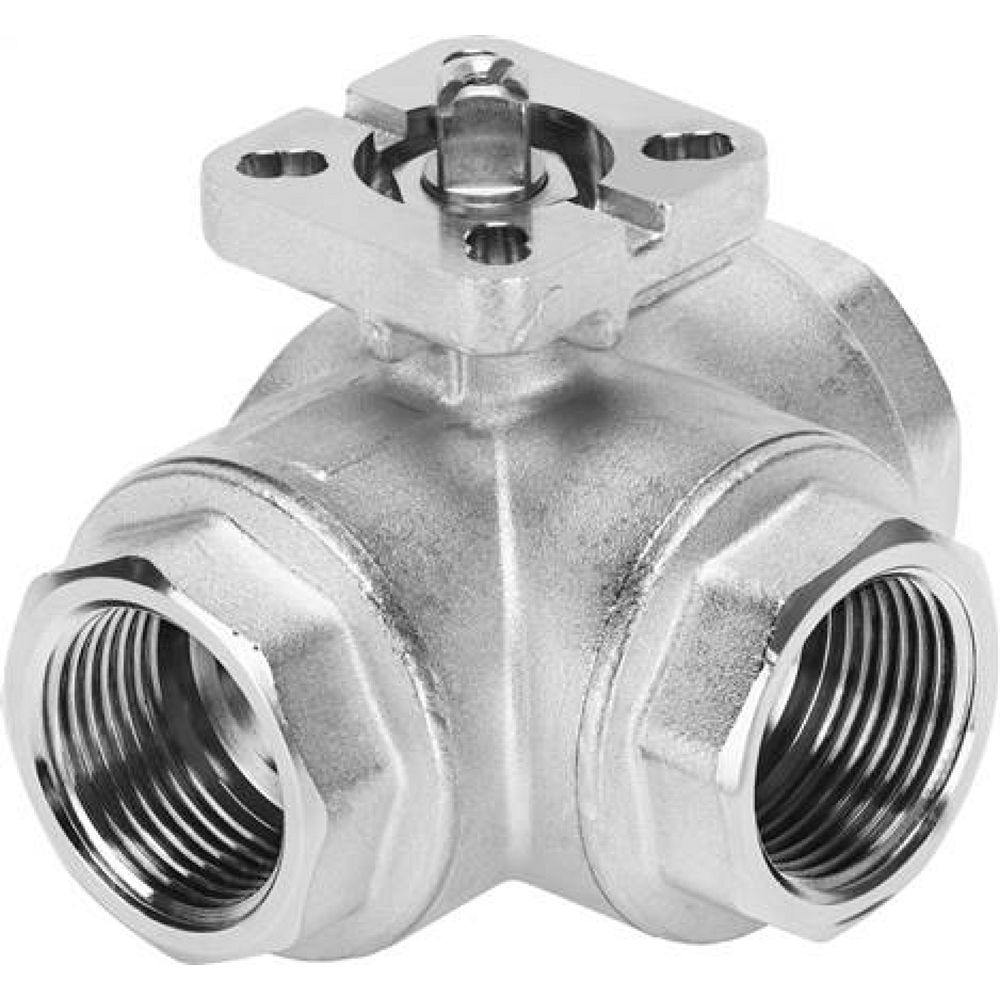

Festo 4451864. Ball valve VZBM-11/2-RP-25-F-3L-F0405-B2B3
