Festo 1492204. Solenoid valve VZWF-L-M22C-N112-400-V-1P4-10-R1
€1,100.69
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-1492204
Manufacturer Nr.
VZWF-L-M22C-N112-400-V-1P4-10#
Solenoid valve
Frequently Bought Together
-
This Item:
€1,100.69Excl. 19% VAT , excl. Shipping Cost
-
Festo 1492379. Solenoid valve VZWF-L-M22C-N114-400-E-3AP4-10-R1
€1,068.65Excl. 19% VAT , excl. Shipping Cost
-

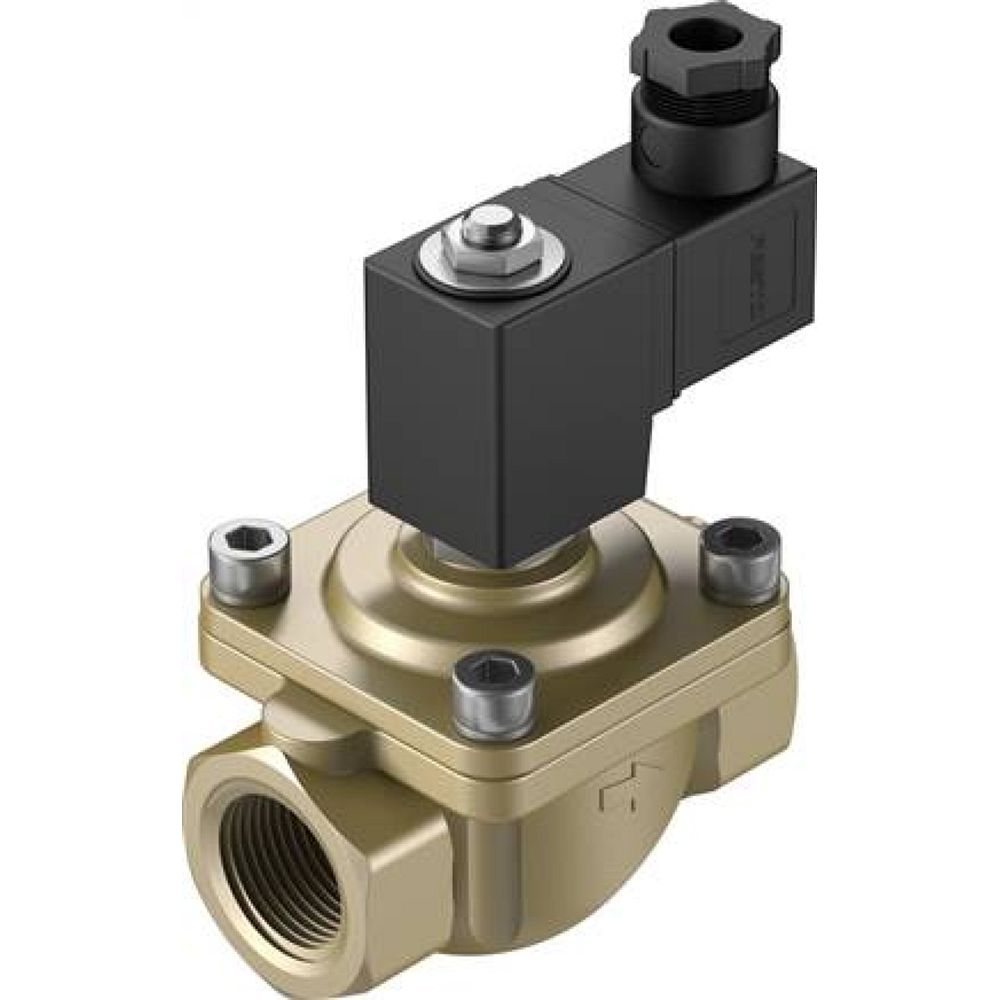

Festo 1492274. Solenoid valve VZWF-B-L-M22C-N1-275-E-2AP4-6
€145.03Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | Diaphragm valve Force pilot operated |
| Type of actuation | Electric |
| Sealing principle | Soft |
| Mounting position | Solenoid vertical |
| Type of mounting | In-line installation |
| Connection Process valve | 1 1/2 NPT |
| Electrical connection | Type A Plugs To EN 175301-803 Square design |
| Nominal size | 40 mm |
| Valve function | 2/2-way, closed, monostable |
| Manual override | None |
| Flow direction | Non-reversible |
| Medium | Compressed air to ISO 8573-1:2010 [7:-:-] Inert gases Mineral oil Water Neutral fluids Other media on request |
| Nominal pressure PN | 40 |
| Pressure difference | 0 MPa |
| Pressure difference | 0 bar |
| Pressure difference | 0 psi |
| Characteristic coil data | 24 V DC: 30.0 W |
| Permissible voltage fluctuations | +/- 10 % |
| Symbol | 00992976 |
| Medium pressure | 0 MPa ... 1 MPa |
| Medium pressure | 0 bar ... 10 bar |
| Medium pressure | 0 psi ... 145 psi |
| Max. viscosity | 22 mm²/s |
| Media temperature | -10 °C ... 80 °C |
| Ambient temperature | -10 °C ... 35 °C |
| Leakage rate to EN 12266-1 | A |
| Flow rate Kv | 22.5 m³/h |
| Standard nominal flow rate | 23500 l/min |
| Switching time on | 620 ms |
| Switching time off | 1140 ms |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Stainless steel casting |
| Material number housing | 1.4581 |
| Material seals | FPM |
| Material screws | High-alloy stainless steel |
| Material number screw | 1.4301 |
| Product weight | 4500 g |
| CE mark (see declaration of conformity) | In accordance with EU Pressure Equipment Directive |
| Degree of protection | IP65 |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| Manufacturer Nr. | VZWF-L-M22C-N112-400-V-1P4-10# |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568236076 |
| Weight | 0.100000 |
| HS-Code | 84818087 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 1492252. Solenoid valve VZWF-L-M22C-G112-400-V-2AP4-10-R1
€1,100.69
Excl. 19% VAT ,
excl. Shipping Cost
Festo 1492177. Solenoid valve VZWF-B-L-M22C-N34-275-E-1P4-6
€145.03
Excl. 19% VAT ,
excl. Shipping Cost
Festo 1492292. Solenoid valve VZWF-L-M22C-N112-400-V-2AP4-10
€595.41
Excl. 19% VAT ,
excl. Shipping Cost
Festo 1492209. Solenoid valve VZWF-B-L-M22C-G34-275-2AP4-6
€122.14
Excl. 19% VAT ,
excl. Shipping Cost

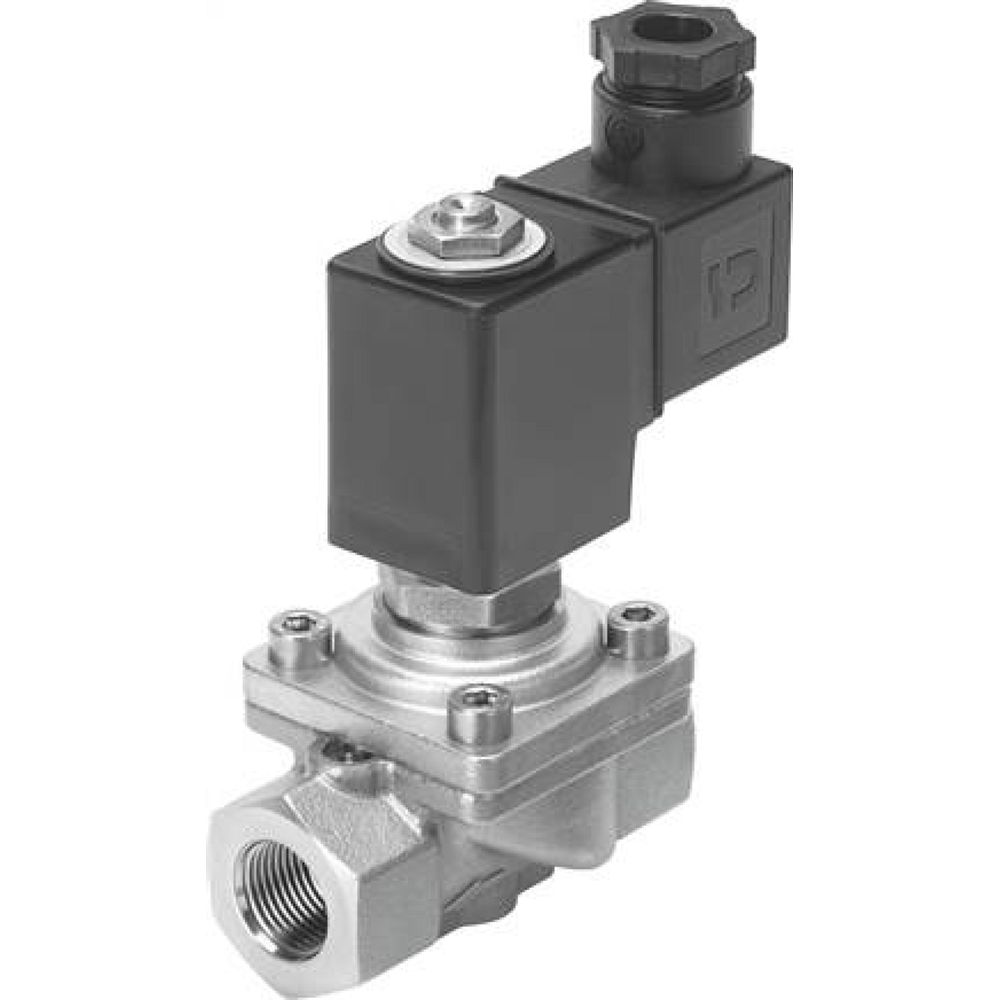

Festo 1492223. Solenoid valve VZWF-B-L-M22C-G38-135-E-2AP4-10
€88.54
Excl. 19% VAT ,
excl. Shipping Cost
Festo 1492146. Solenoid valve VZWF-B-L-M22C-G1-275-V-1P4-6
€152.66
Excl. 19% VAT ,
excl. Shipping Cost
Festo 1492394. Solenoid valve VZWF-B-L-M22C-N1-275-V-3AP4-6-R1
€293.13
Excl. 19% VAT ,
excl. Shipping Cost

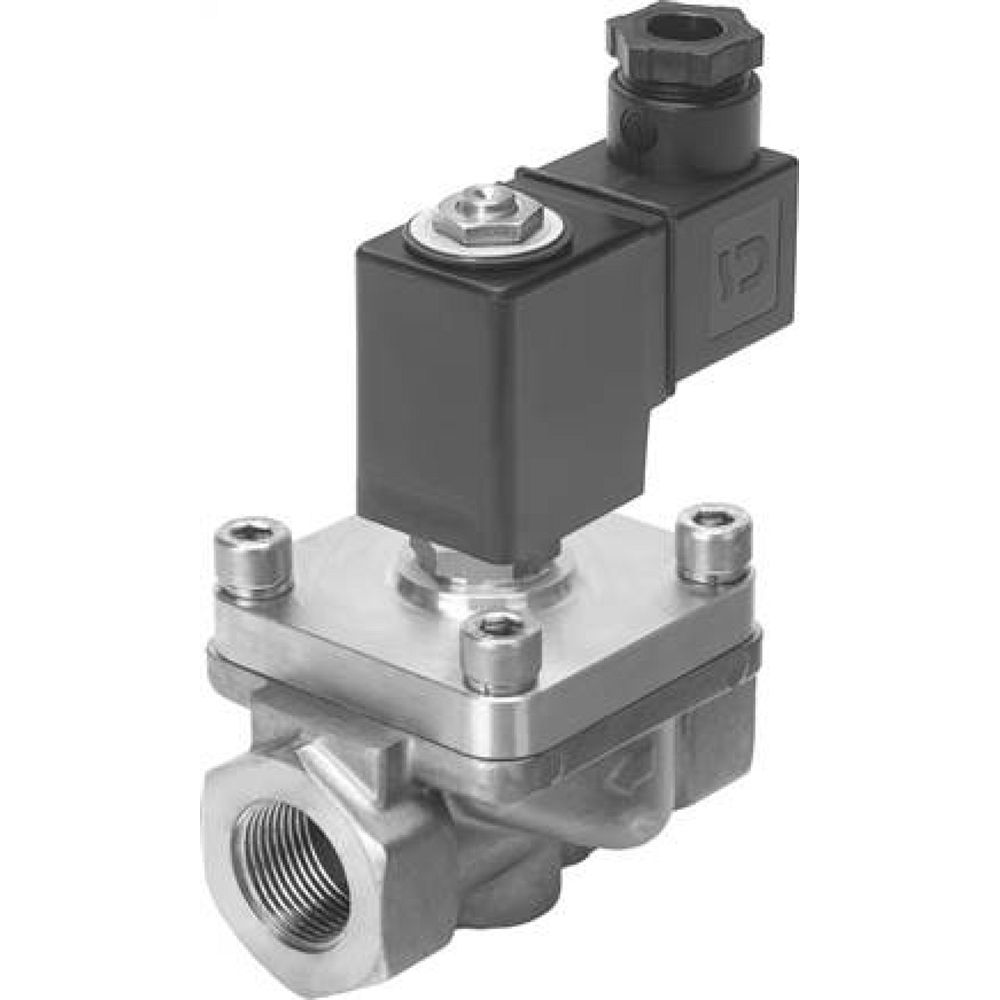

Festo 1492137. Solenoid valve VZWF-B-L-M22C-G34-275-E-1P4-6-R1
