Festo VPPM-8L-L-1-G14-0L6H-A4P (571299) Proportional Pressure
€674.95
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-571299
Manufacturer Nr.
VPPM-8L-L-1-G14-0L6H-A4P
Proportional Pressure
Frequently Bought Together
-
This Item:
€674.95Excl. 19% VAT , excl. Shipping Cost
-
Festo 161172. Proportional-pressure regulator MPPE-3-1/2-1-010-B
€1,376.28Excl. 19% VAT , excl. Shipping Cost
-

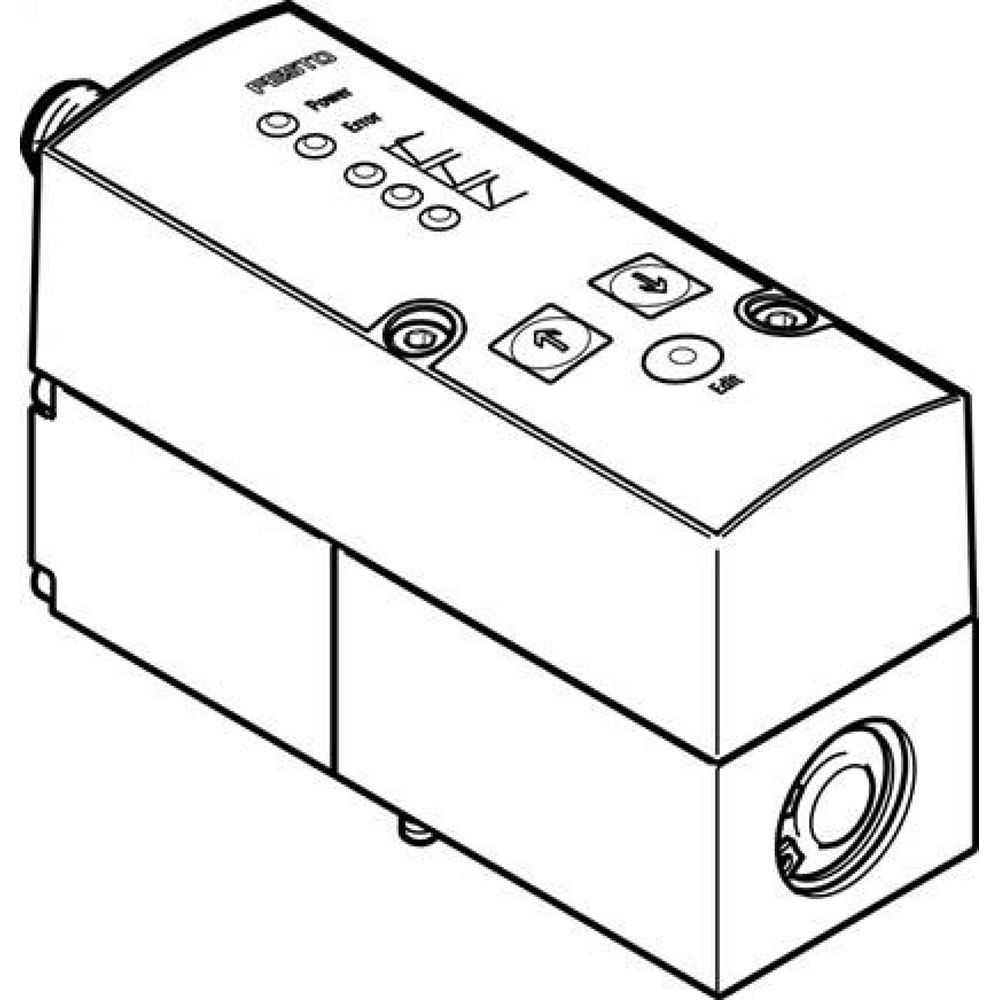

Festo 571283. Proportional-pressure regulator VPPM-8F-L-1-F-0L6H-A4P-S1
€705.62Excl. 19% VAT , excl. Shipping Cost
Total price
| Nominal width ventilation [mm] | 8 |
| Nominal width venting [mm] | 7,0 |
| Actuation type | Electrical |
| Sealing principle | Soft |
| installation position | arbitrary |
| Construction set up | Pre-controlled membrane control valve |
| Short circuit resistance | for all electrical connections |
| Safety instructions | Safety position VPPM: For supply line break, the output pressure is retained uncontrolled. |
| Reverse polarity protection | for all electrical connections |
| Reset mode | Mechanical spring |
| Control type | pilot operated |
| Valve function | 3-way proportional pressure regulator valve |
| Display type | LED |
| Pressure regulation range [bar] | 0.06 to 6 |
| Input pressure 1 [bar] | 0 to 8 |
| Max. pressure hysteresis [bar] | 0,03 |
| Normal nominal flow [l/min] | 1.750 |
| Operating voltage range DC [V] | 21.6 to 26.4 |
| Max. power input [mA] | 300 |
| Power-on time | 100 % |
| Max. electrical power consumption [W] | 7 |
| residual ripple | 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases |
| Information about operating and control medium | Oiled operation not possible |
| Permission | RCM mark c UL us - Listed (OL) |
| KC-mark | KC-EMV |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Medium temperature [°C] | 10 to 50 |
| Protection category | IP65 |
| ambient temperature [°C] | 0 to 60 |
| Product weight [g] | 560 |
| Linearity error FS [%] | 2 |
| Temperature coefficient [%/K] | 0,04 |
| Repeatability FS [%] | 0,5 |
| Electrical connection | M12 8 pin Plug |
| Fastening type | With throughway bores With Accessories Selectively: |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/4 |
| Pneumatic connection 3 | G1/4 |
| Material information | RoHs compliant |
| Housing material | Aluminium wrought alloy anodized |
| Control output | PNP |
| Signal range analogue output | 4 - 20 mA |
| Signal range analogue input | 4 - 20 mA |
| Manufacturer Nr. | VPPM-8L-L-1-G14-0L6H-A4P |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568217808 |
| Weight | 0.650000 |
| HS-Code | 84811099 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

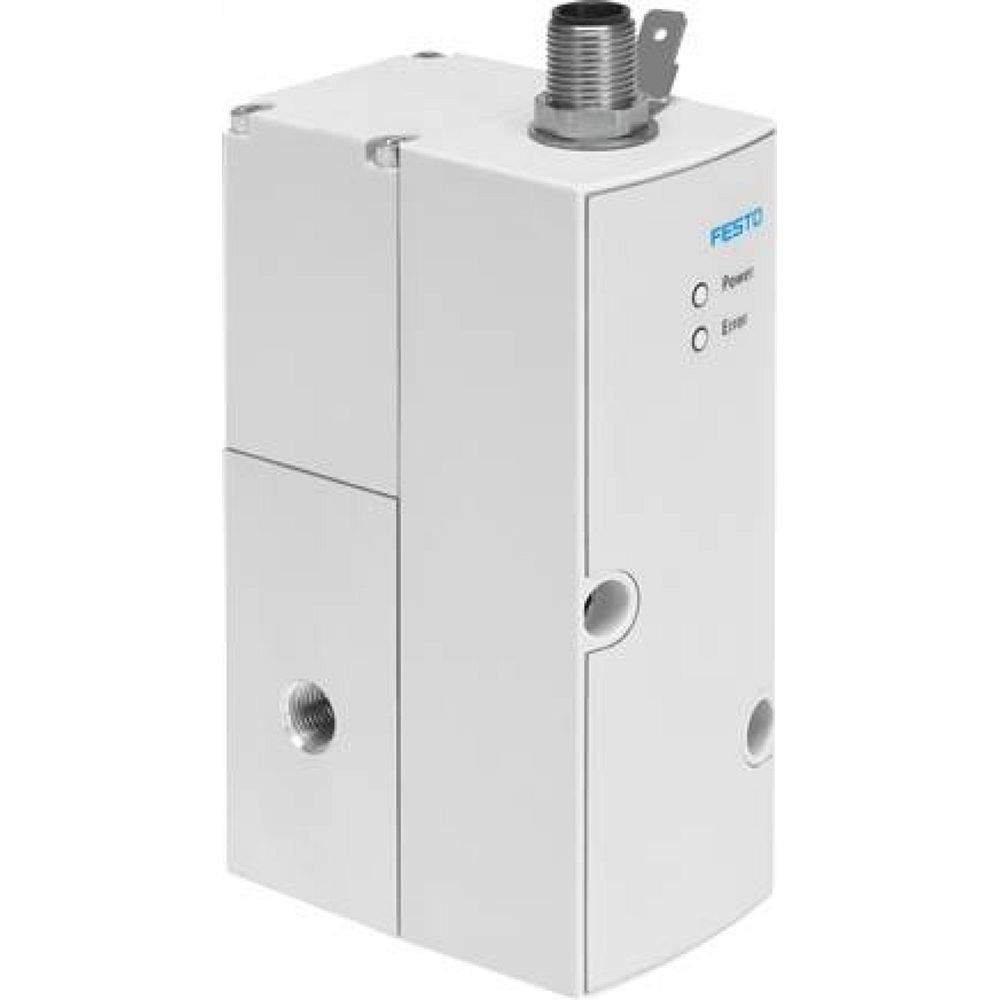

Festo 8031107. Proportional-pressure regulator VPPM-6F-L-1-F-0L2H-LK-S1
