Festo 555643. Sub-base VABS-S2-2S-G12-B-C1

Name: Festo 555643. Sub-base VABS-S2-2S-G12-B-C1
Brand: Festo
SKU: FES-555643
Price: 57.73 EUR
Availability: InStock

€57.73

Excl. 19% VAT , excl. Shipping Cost

Article

FES-555643

Manufacturer Nr.

VABS-S2-2S-G12-B-C1

Sub-base

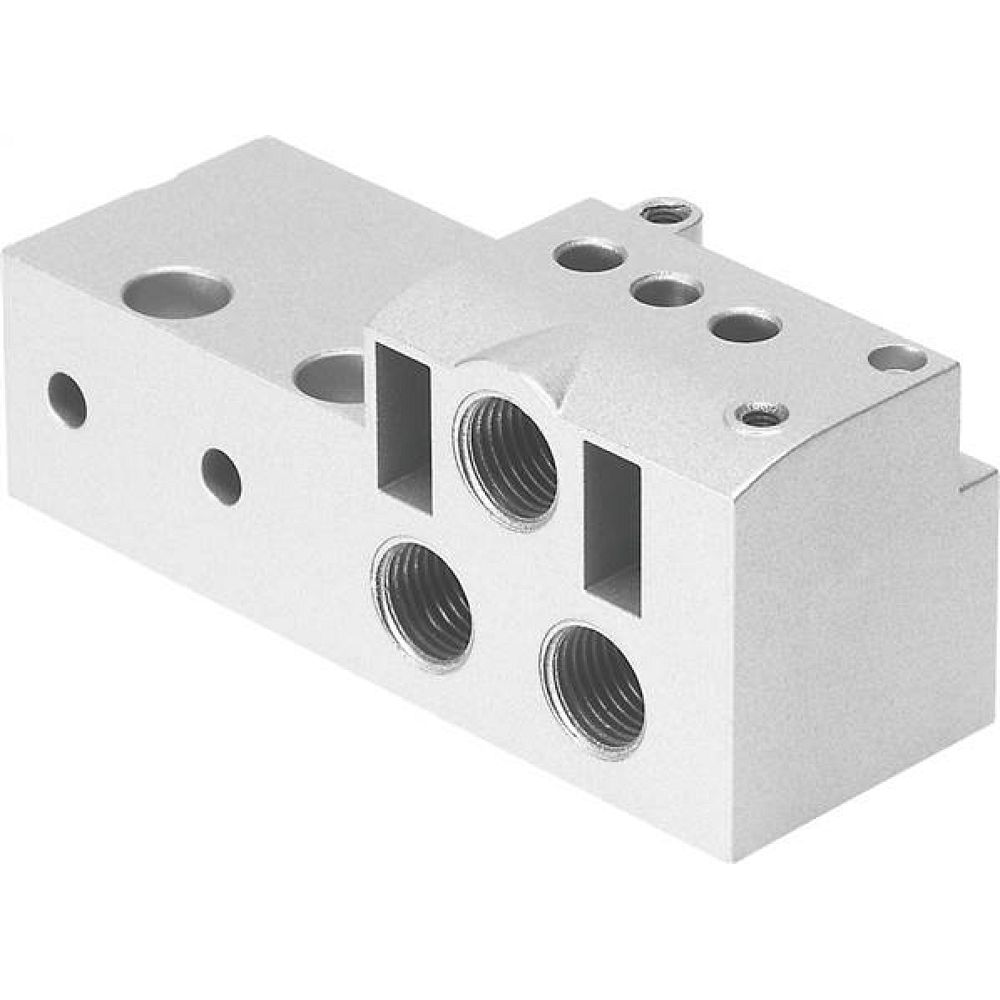

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 555643. Sub-base VABS-S2-2S-G12-B-C1
€57.73
Excl. 19% VAT , excl. Shipping Cost
Festo 10176. End plate kit NEV-3DA/DB-ISO
€41.49
Excl. 19% VAT , excl. Shipping Cost
Festo 555639. Sub-base VABS-S2-2S-N12-C1
€57.73
Excl. 19% VAT , excl. Shipping Cost

Total price

Construction width	52 mm
Based on standard	ISO 5599-2
Mounting position	optional
Pilot air supply	Internal
Operating pressure	-0.09 MPa ... 1 MPa
Operating pressure	-0.9 bar ... 10 bar
Operational voltage range AC	110 V
Operational voltage range DC	24 V
Immunity to surge	4 kV
Current rating at 40° C	2 A
Pollution degree	3
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Degree of protection	IP65 NEMA 4 In assembled state
Ambient temperature	-5 °C ... 50 °C
Product weight	815 g
Connection cross section	0.08 mm² ... 0.75 mm²
Type of mounting	With through-hole
Note on materials	RoHS-compliant
Material sub-base	Cast aluminium

More Information
Manufacturer Nr.	VABS-S2-2S-G12-B-C1
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568096281
Weight	0.900000
HS-Code	84819000
Article authenticity	Original product
Condition of article	New
