Festo 133007. Push-in fitting QSM-M7-6-I-R
€1.76
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-133007
Manufacturer Nr.
QSM-M7-6-I-R
Push-in fitting
Festo 133007. Push-in fitting QSM-M7-6-I-R is available to buy in increments of 10
Frequently Bought Together
-
This Item:
€1.76Excl. 19% VAT , excl. Shipping Cost
-

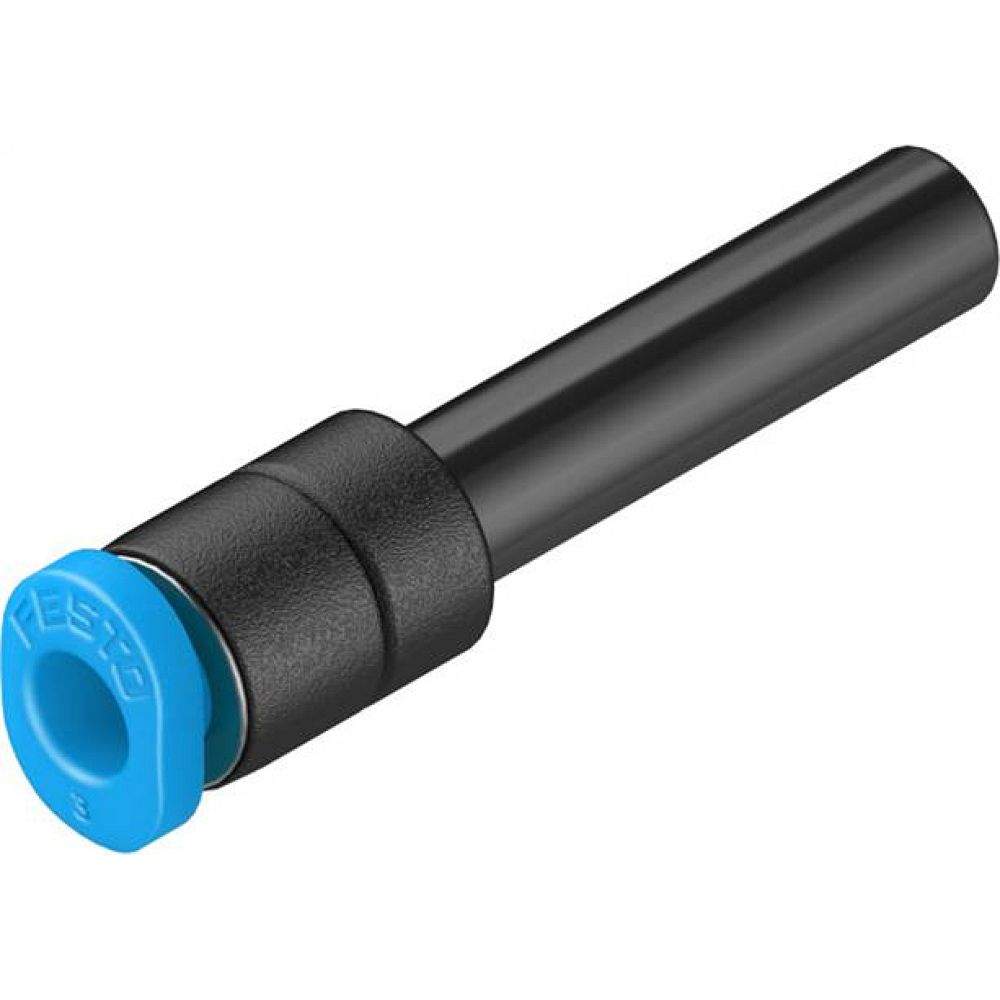

Festo 130762. Push-in connector QSM-4H-3-100
€2.15Excl. 19% VAT , excl. Shipping Cost
-
Festo 153331. Push-in L-fitting QSML-M5-3
€2.20Excl. 19% VAT , excl. Shipping Cost
Total price
| Size | Mini |
| Nominal size | 4.1 mm |
| Type of seal on screwed plug | Sealing ring |
| Mounting position | optional |
| Design | Straight design, round releasing ring |
| Size of pack | 10 |
| Design | Push-pull principle |
| Operating pressure complete temperature range | -0.095 MPa ... 0.6 MPa |
| Operating pressure complete temperature range | -0.95 bar ... 6 bar |
| Operating pressure complete temperature range | -13.775 psi ... 87 psi |
| Temperature-dependent operating pressure | -0.095 MPa ... 1.4 MPa |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Temperature-dependent operating pressure | -13.775 psi ... 203 psi |
| Maritime classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 80 °C |
| Nominal torque | 3.35 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 6.4 g |
| Type of mounting | Internal hexagon, size 4 mm |
| Pneumatic connection, port 1 | Male thread M7 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | Brass, nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Manufacturer Nr. | QSM-M7-6-I-R |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568028985 |
| Weight | 0.005200 |
| HS-Code | 74122000 |
| Article authenticity | Original product |
| Condition of article | New |
