Festo 570737. Soft start/quick exhaust valve MS9-SV-G-C-V24-S-VS
€534.40
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-570737
Manufacturer Nr.
MS9-SV-G-C-V24-S-VS
Soft start/quick exhaust valve
Frequently Bought Together
-
This Item:
€534.40Excl. 19% VAT , excl. Shipping Cost
-
Festo 541270. On/off valve MS6-EM1-1/2-Z
€53.55Excl. 19% VAT , excl. Shipping Cost
-
Festo 541258. On/off valve MS4-EM1-1/4
€34.79Excl. 19% VAT , excl. Shipping Cost
Total price
| Series | MS |
| Size | 9 |
| Grid dimension | 90 mm |
| Safety function | Exhaust |
| Performance Level (PL) | Exhausting/up to category 1, performance level c |
| Design | Piston gate valve |
| Type of actuation | Electric |
| Sealing principle | Soft |
| Exhaust-air function | Without flow control option |
| Manual override | None |
| Type of reset | Mechanical spring |
| Type of piloting | Pilot actuated |
| Symbol | 00995240 |
| Valve function | 3/2-way, closed, monostable Soft-start function |
| Operating pressure | 0.35 MPa ... 1.6 MPa |
| Operating pressure | 3.5 bar ... 16 bar |
| Standard nominal flow rate | 8300 l/min ... 16550 l/min |
| Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi) | 19730 l/min ... 21720 l/min |
| Duty cycle | 100% |
| Characteristic coil data | 24 V DC: 8.4 W |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Sound pressure level | 93 dB(A) |
| Degree of protection | IP65 |
| Media temperature | 0 °C ... 60 °C |
| Ambient temperature | 0 °C ... 60 °C |
| Storage temperature | 0 °C ... 60 °C |
| Shock resistance | Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| CE mark (see declaration of conformity) | To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK regulations for machines To UK RoHS instructions |
| Type of mounting | Either: In-line installation With accessories |
| Mounting position | optional |
| Product weight | 3200 g |
| Pressure gauge connection | G1/8 G1/4 |
| Pneumatic connection, port 3 | G1 1 NPT |
| Electrical connection | Type A Plugs To EN 175301-803 Square design |
| Material housing | Die-cast aluminium |
| Material seals | NBR |
| Material piston slide | Brass |
| Material cover | Wrought aluminium alloy |
| Material underneath cover | PA |
| Manufacturer Nr. | MS9-SV-G-C-V24-S-VS |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568217273 |
| Weight | 4.300000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 548717. Soft start/quick exhaust valve MS6-SV-1/2-E-10V24-SO-AG
€883.84
Excl. 19% VAT ,
excl. Shipping Cost
Festo 8038492. Soft start/quick exhaust valve MS6-SV-1/2-D-10V24-2OE-SO-AG
€558.69
Excl. 19% VAT ,
excl. Shipping Cost
Festo 8038489. Soft start/quick exhaust valve MS6-SV-1/2-D-10V24-2M8
€498.52
Excl. 19% VAT ,
excl. Shipping Cost

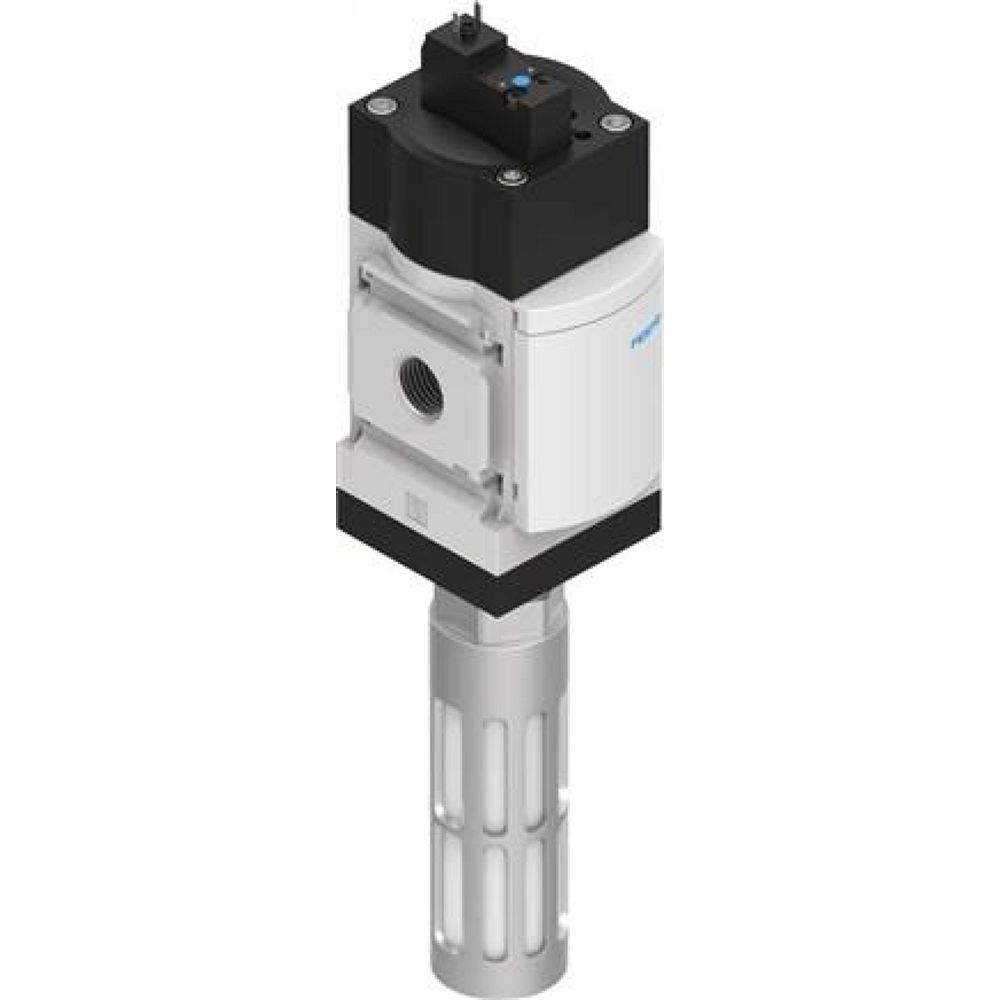

Festo 8001469. Soft start/quick exhaust valve MS6-SV-1/2-C-10V24-S
