Festo 1908317. ISO cylinder DSNU-25-60-PPV-A
€53.36
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-1908317
Manufacturer Nr.
DSNU-25-60-PPV-A
ISO cylinder
Frequently Bought Together
-
This Item:
€53.36Excl. 19% VAT , excl. Shipping Cost
-

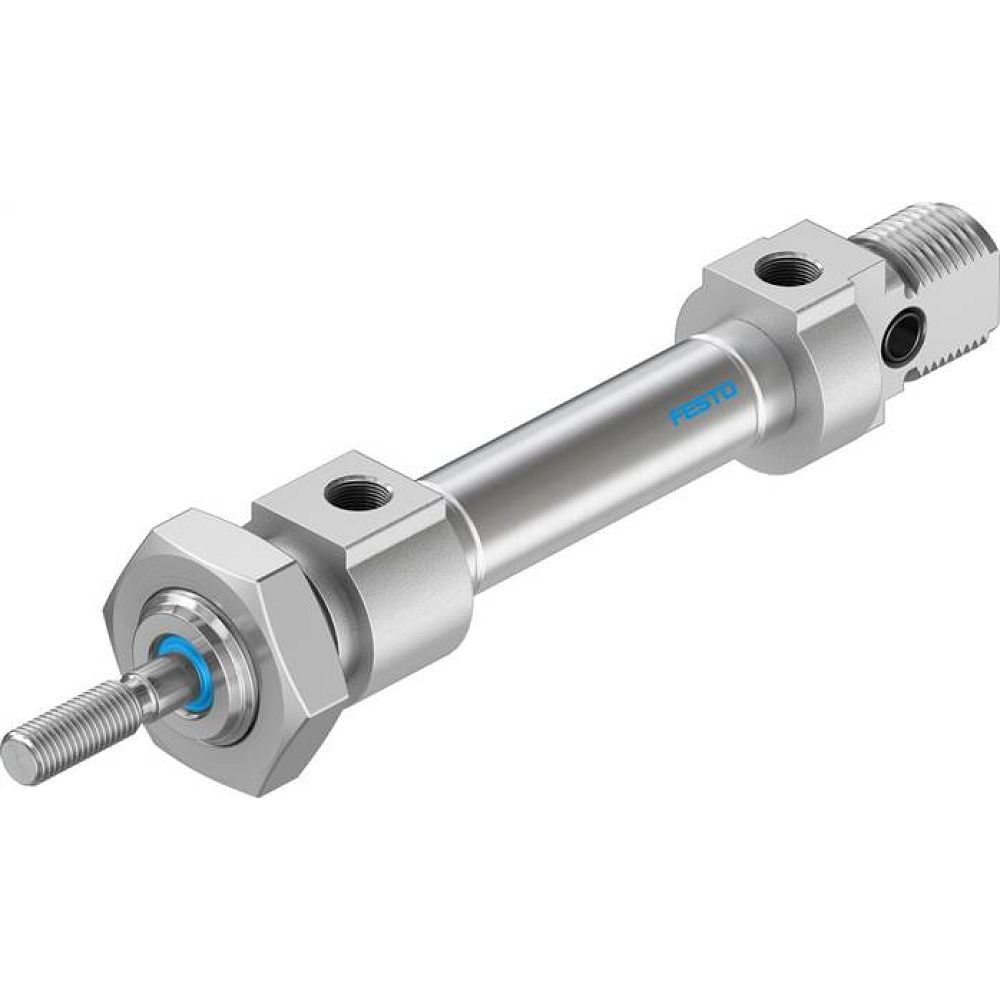

Festo 19177. ISO cylinder DSNU-8-10-P-A
€29.91Excl. 19% VAT , excl. Shipping Cost
-
Festo 195986. Round cylinder DSNU-32-160-P-A
€57.57Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 60 mm |
| Piston diameter | 25 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991235 |
| Variants | Piston rod at one end |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in end positions | 0.3 J |
| Cushioning length | 17 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 247.4 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 294.5 N |
| Moving mass for 0 mm stroke | 71 g |
| Additional moving mass per 10 mm stroke | 6 g |
| Basic weight for 0 mm stroke | 238 g |
| Additional weight per 10 mm stroke | 11 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
| Manufacturer Nr. | DSNU-25-60-PPV-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568249182 |
| Weight | 0.290000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
