Festo 1369125. Semi-rotary drive DSM-32-270-CC-HD-A-B

Name: Festo 1369125. Semi-rotary drive DSM-32-270-CC-HD-A-B
Brand: Festo
SKU: FES-1369125
Price: 964.26 EUR
Availability: InStock

€964.26

Excl. 19% VAT , excl. Shipping Cost

Article

FES-1369125

Manufacturer Nr.

DSM-32-270-CC-HD-A-B

Semi-rotary drive

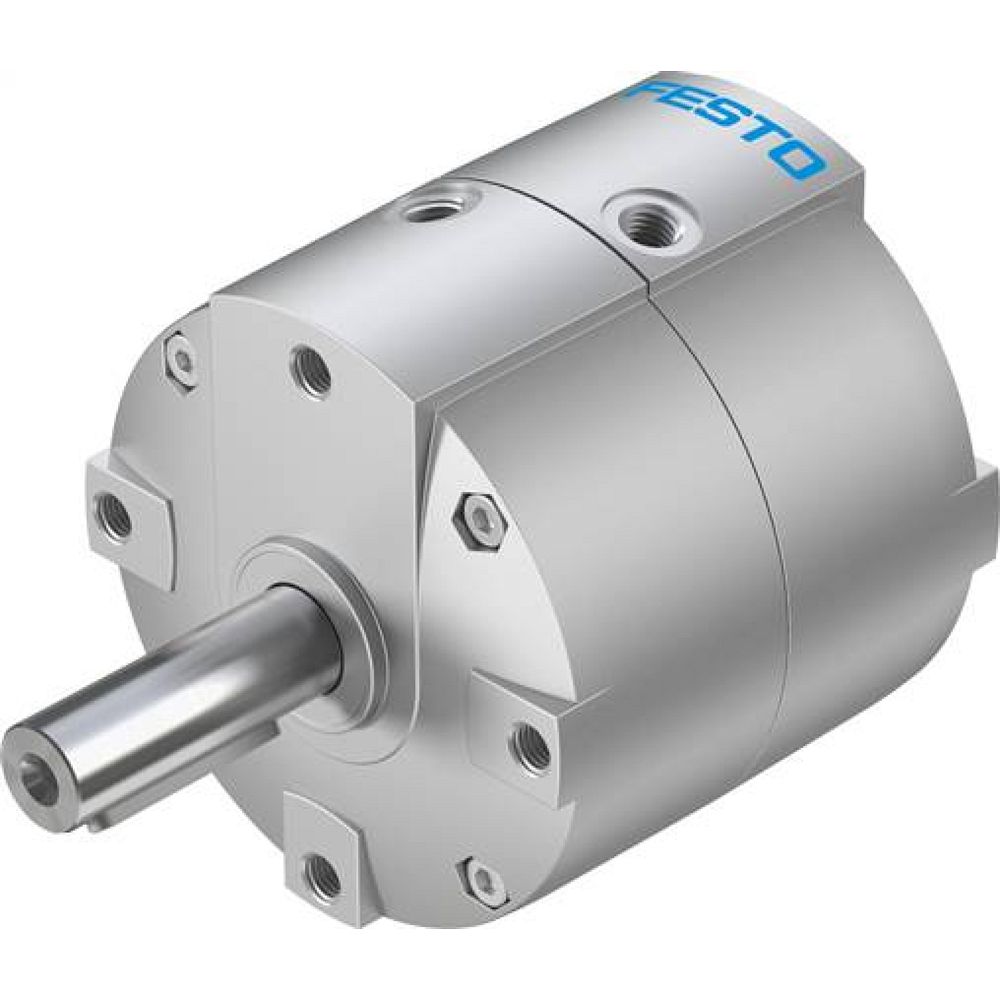

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 1369125. Semi-rotary drive DSM-32-270-CC-HD-A-B
€964.26
Excl. 19% VAT , excl. Shipping Cost
Festo 556573. Swivel/linear unit DSL-40-160-270-P-A-S20-B
€1,730.81
Excl. 19% VAT , excl. Shipping Cost
Festo 1369117. Semi-rotary drive DSM-16-270-P1-HD-A-B
€587.65
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	32
Cushioning angle	12 deg
Rotation angle adjustment range	0 deg ... 246 deg
Swivel angle	0 deg ... 246 deg
Cushioning	Shock absorber at both ends
Mounting position	optional
Fine adjustment	-3 deg
Mode of operation	Double-acting
Design	Vane
Position detection	Via proximity switch
Symbol	00991265
Operating pressure	0.2 MPa ... 1 MPa
Operating pressure	2 bar ... 10 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)	0.5 Hz
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 °C ... 60 °C
Max. axial force	450 N
Max. radial force	550 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi)	10 Nm
Permissible mass moment of inertia	0.005 kgm²
Product weight	2020 g
Type of mounting	Via female thread
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material drive shaft	Steel Nickel-plated
Material seals	TPE-U(PU)
Material housing	Wrought aluminium alloy

More Information
Manufacturer Nr.	DSM-32-270-CC-HD-A-B
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568231293
Weight	2.200000
HS-Code	84123900
Article authenticity	Original product
Condition of article	New
