Festo 574026. Compact cylinder ADNGF-32-30-PPS-A
€115.46
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-574026
Manufacturer Nr.
ADNGF-32-30-PPS-A
Compact cylinder
Frequently Bought Together
-
This Item:
€115.46Excl. 19% VAT , excl. Shipping Cost
-

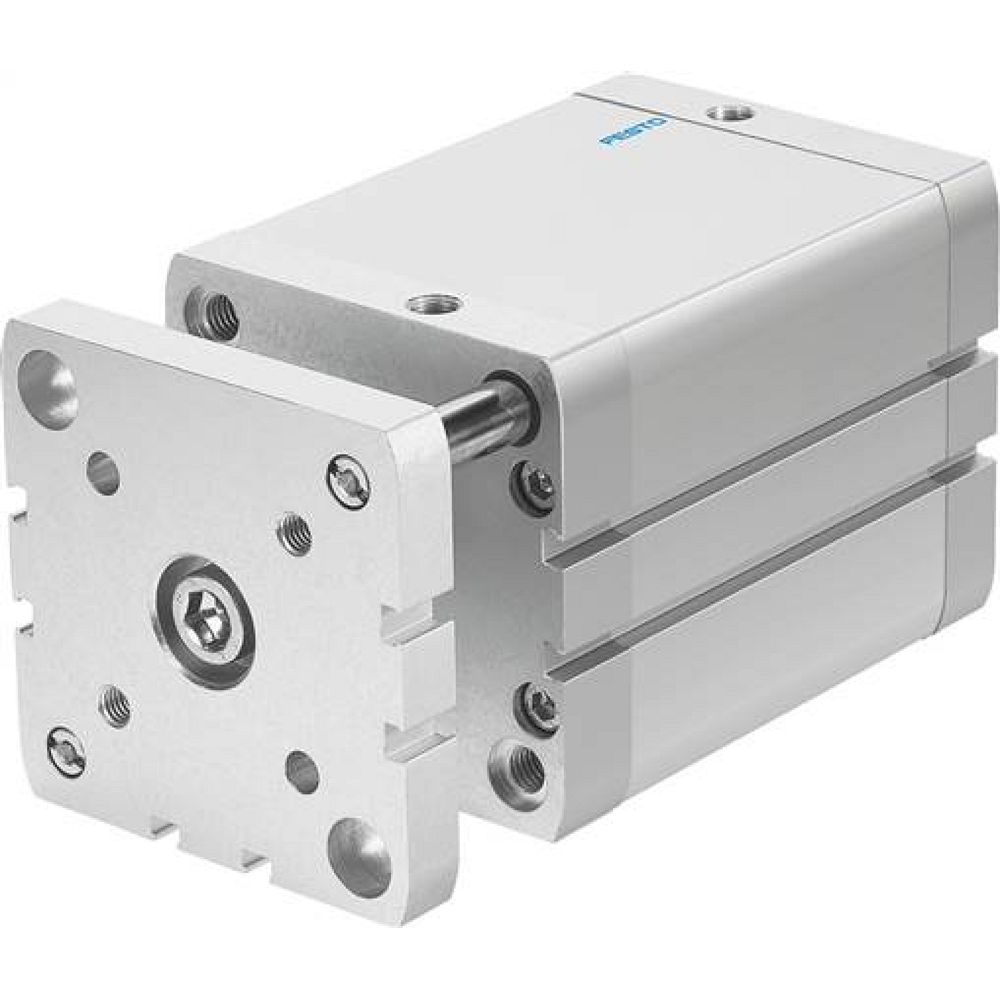

Festo 554280. Compact cylinder ADNGF-80-25-P-A
€242.23Excl. 19% VAT , excl. Shipping Cost
-
Festo 554222. Compact cylinder ADNGF-20-15-P-A
€75.79Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 30 mm |
| Piston diameter | 32 mm |
| Based on standard | ISO 21287 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Protection against torque/guide | Guide rod with yoke |
| Operating pressure | 0.19 MPa ... 1 MPa |
| Operating pressure | 1.9 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in end positions | 1 J |
| Cushioning length | 4 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 415 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 483 N |
| Moving mass for 0 mm stroke | 122 g |
| Additional moving mass per 10 mm stroke | 17 g |
| Basic weight for 0 mm stroke | 327 g |
| Additional weight per 10 mm stroke | 38 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material collar screws | Steel |
| Material cover | Anodised wrought aluminium alloy |
| Material seals | TPE-U(PUR) |
| Material end plate | Anodised wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Manufacturer Nr. | ADNGF-32-30-PPS-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568221492 |
| Weight | 0.410000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
