Festo 132639. Cartridge QSPLK18-10
€2.93
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-132639
Manufacturer Nr.
QSPLK18-10
Cartridge
Festo 132639. Cartridge QSPLK18-10 is available to buy in increments of 10
Frequently Bought Together
-
This Item:
€2.93Excl. 19% VAT , excl. Shipping Cost
-
Festo 132650. Cartridge QSPKG18-10
€2.35Excl. 19% VAT , excl. Shipping Cost
-

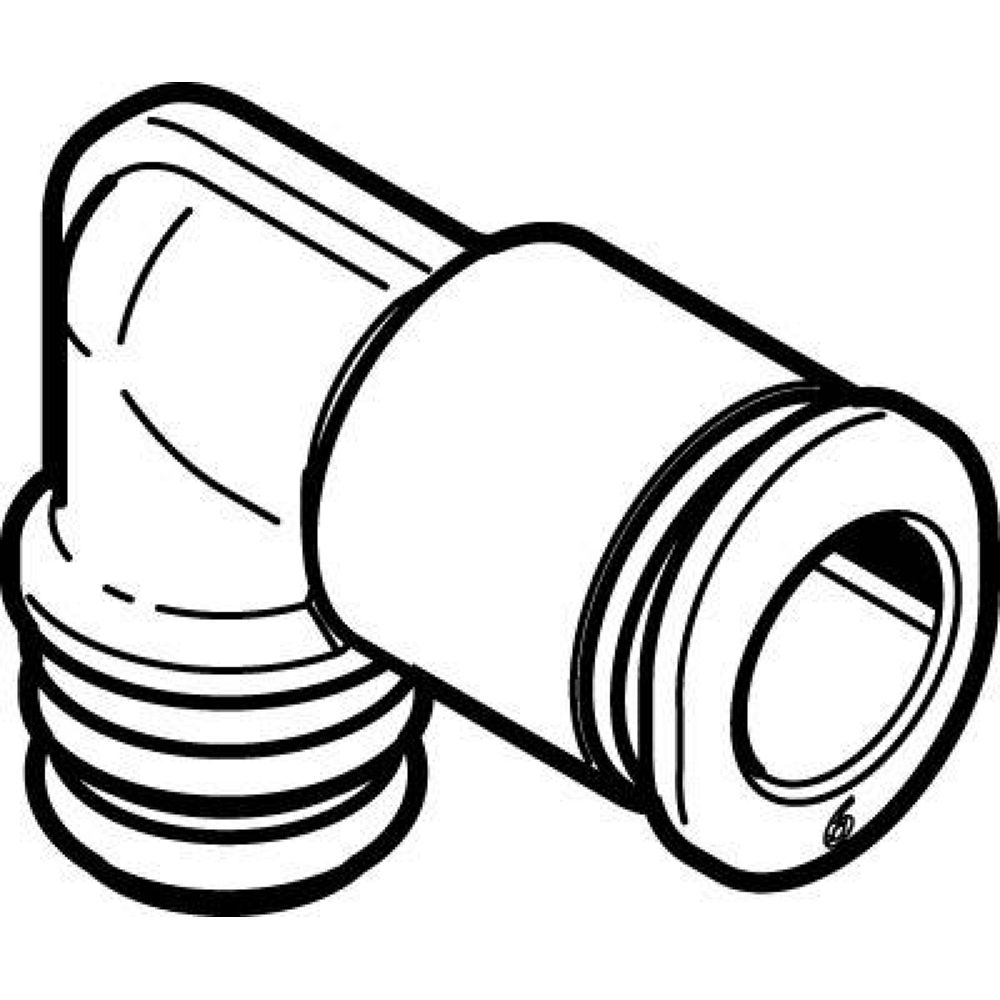

Festo 132921. Cartridge QSPLKG10-6
€1.78Excl. 19% VAT , excl. Shipping Cost
Total price
| Size | Standard |
| Nominal size | 6.7 mm |
| Type of seal on screwed plug | O-ring |
| Mounting position | optional |
| Design | L-shape |
| Size of pack | 10 |
| Design | Push-pull principle |
| Operating pressure complete temperature range | -0.095 MPa ... 1 MPa |
| Operating pressure complete temperature range | -0.95 bar ... 10 bar |
| Operating pressure complete temperature range | -13.775 psi ... 145 psi |
| Maritime classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5 °C ... 60 °C |
| Product weight | 10.8 g |
| Type of mounting | Mounting pin |
| Pneumatic connection, port 1 | Cartridge 18 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 10 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PA-reinforced |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Manufacturer Nr. | QSPLK18-10 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568028169 |
| Weight | 0.011000 |
| HS-Code | 39174000 |
| Article authenticity | Original product |
| Condition of article | New |
