Festo 546087. Regulator plate VABF-S2-1-R2C2-C-6

Name: Festo 546087. Regulator plate VABF-S2-1-R2C2-C-6
Brand: Festo
SKU: FES-546087
Price: 160.51 EUR
Availability: InStock

€160.51

Excl. 19% VAT , excl. Shipping Cost

Article

FES-546087

Manufacturer Nr.

VABF-S2-1-R2C2-C-6

Regulator plate

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 546087. Regulator plate VABF-S2-1-R2C2-C-6
€160.51
Excl. 19% VAT , excl. Shipping Cost
Festo VABF-S3-1-R4C2-C-10 (543539) Regulator Plate
€218.14
Excl. 19% VAT , excl. Shipping Cost

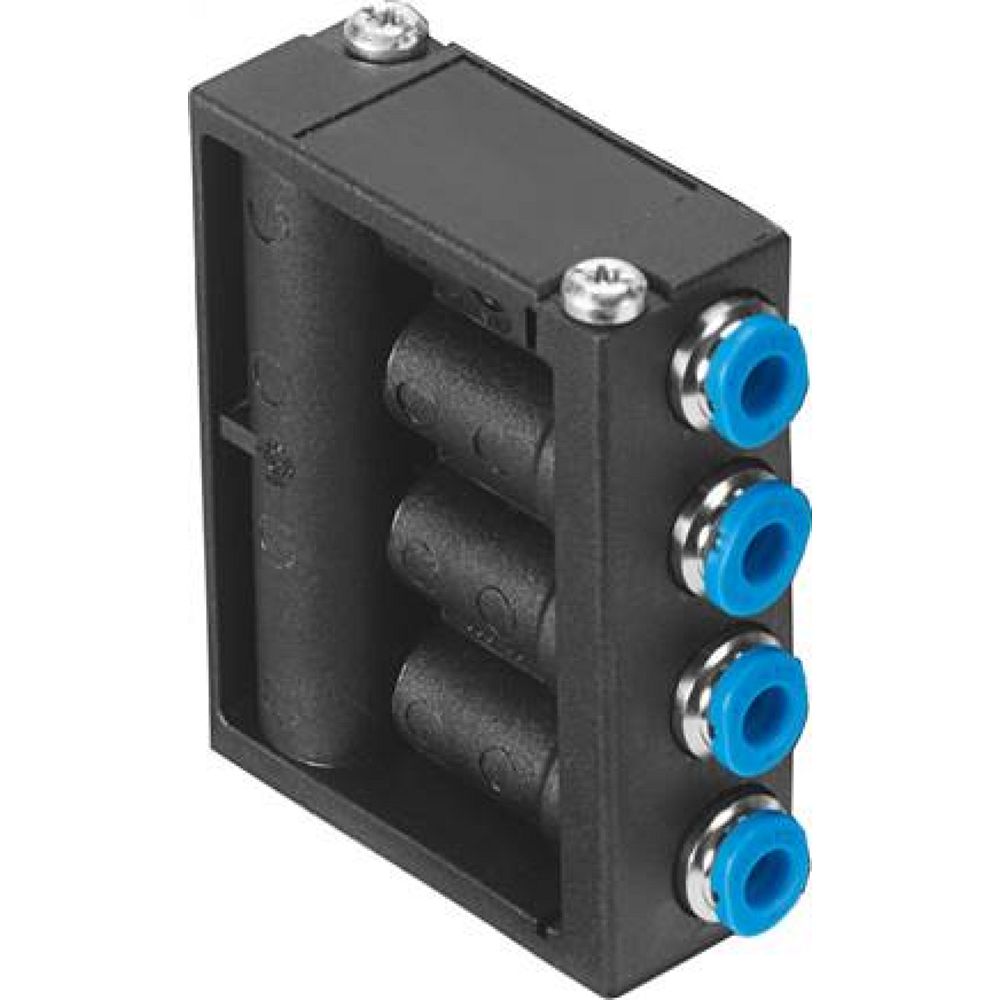

Festo 562458. Distributor VABF-C8-12-V1P4-Q6
€15.50
Excl. 19% VAT , excl. Shipping Cost

Total price

Construction width	42 mm
Based on standard	ISO 5599-2
Mounting position	optional
Vertical pneumatic linkage	Pressure regulator for 2
Controller function	Output pressure constant With secondary venting
Symbol	00991581
Selection of pressure gauge	Possible
Pressure regulation range	0.1 MPa ... 0.6 MPa
Pressure regulation range	1 bar ... 6 bar
Pressure regulation range	14.5 psi ... 87 psi
Inlet pressure 1	0.5 bar ... 10 bar
Inlet pressure 1	0.05 MPa ... 1 MPa
Inlet pressure 1	7.25 psi ... 145 psi
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Degree of protection	IP65 NEMA 4
Ambient temperature	-5 °C ... 50 °C
Product weight	640 g
Mounting with vertical stacking	On manifold sub-base On individual sub-base
Pressure gauge connection	Via retaining clamp
Note on materials	RoHS-compliant
Material control panel	PA
Material regulator housing	Die-cast aluminium

More Information
Manufacturer Nr.	VABF-S2-1-R2C2-C-6
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568005894
Weight	0.700000
HS-Code	84811099
Article authenticity	Original product
Condition of article	New
