Festo 547587. Semi-rotary drive DSM-40-270-P-FW-A-B

Name: Festo 547587. Semi-rotary drive DSM-40-270-P-FW-A-B
Brand: Festo
SKU: FES-547587
Price: 537.25 EUR
Availability: InStock

€537.25

Excl. 19% VAT , excl. Shipping Cost

Article

FES-547587

Manufacturer Nr.

DSM-40-270-P-FW-A-B

Semi-rotary drive

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 547587. Semi-rotary drive DSM-40-270-P-FW-A-B
€537.25
Excl. 19% VAT , excl. Shipping Cost
Festo 556625. Swivel/linear unit DSL-20-40-270-CC-A-S2-KF-B
€1,616.68
Excl. 19% VAT , excl. Shipping Cost

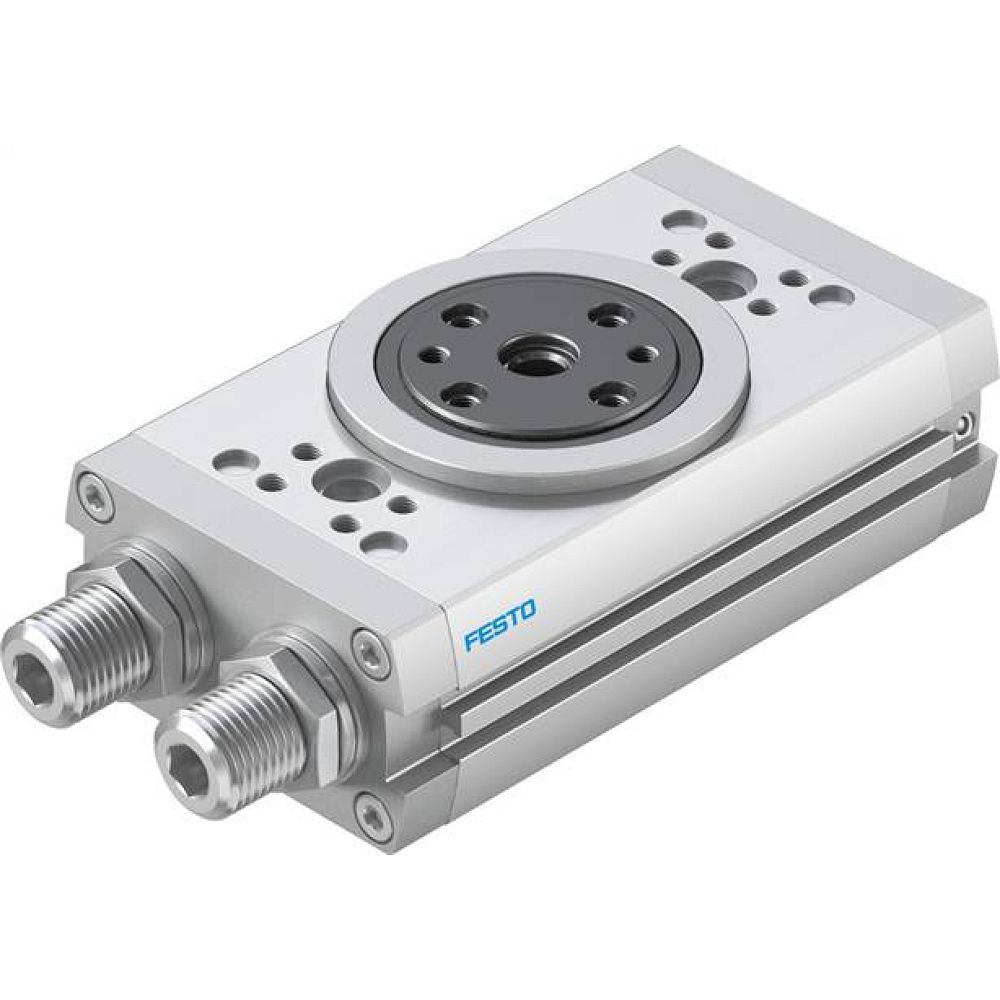

Festo 1578512. Semi-rotary drive DRRD-32-180-FH-PA
€743.95
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	40
Cushioning angle	2 deg
Rotation angle adjustment range	0 deg ... 270 deg
Swivel angle	0 deg ... 270 deg
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Fine adjustment	-6 deg
Mode of operation	Double-acting
Design	Vane
Position detection	Via proximity switch
Symbol	00991265
Operating pressure	0.15 MPa ... 1 MPa
Operating pressure	1.5 bar ... 10 bar
Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)	2 Hz
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 °C ... 60 °C
Max. axial force	120 N
Max. radial force	350 N
Theoretical torque at 0.6 MPa (6 bar, 87 psi)	20 Nm
Permissible mass moment of inertia	0.035 kgm²
Product weight	2835 g
Type of mounting	Via female thread
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material drive shaft	Steel Nickel-plated
Material seals	TPE-U(PU)
Material housing	Wrought aluminium alloy

More Information
Manufacturer Nr.	DSM-40-270-P-FW-A-B
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568189068
Weight	3.000000
HS-Code	84123900
Article authenticity	Original product
Condition of article	New
