Festo 132045. Push-in fitting QS-G3/8-12-20

Name: Festo 132045. Push-in fitting QS-G3/8-12-20
Brand: Festo
SKU: FES-132045
Price: 3.06 EUR
Availability: InStock

€3.06

Excl. 19% VAT , excl. Shipping Cost

Article

FES-132045

Manufacturer Nr.

QS-G3/8-12-20

Push-in fitting

Festo 132045. Push-in fitting QS-G3/8-12-20 is available to buy in increments of 20

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 132045. Push-in fitting QS-G3/8-12-20
€3.06
Excl. 19% VAT , excl. Shipping Cost

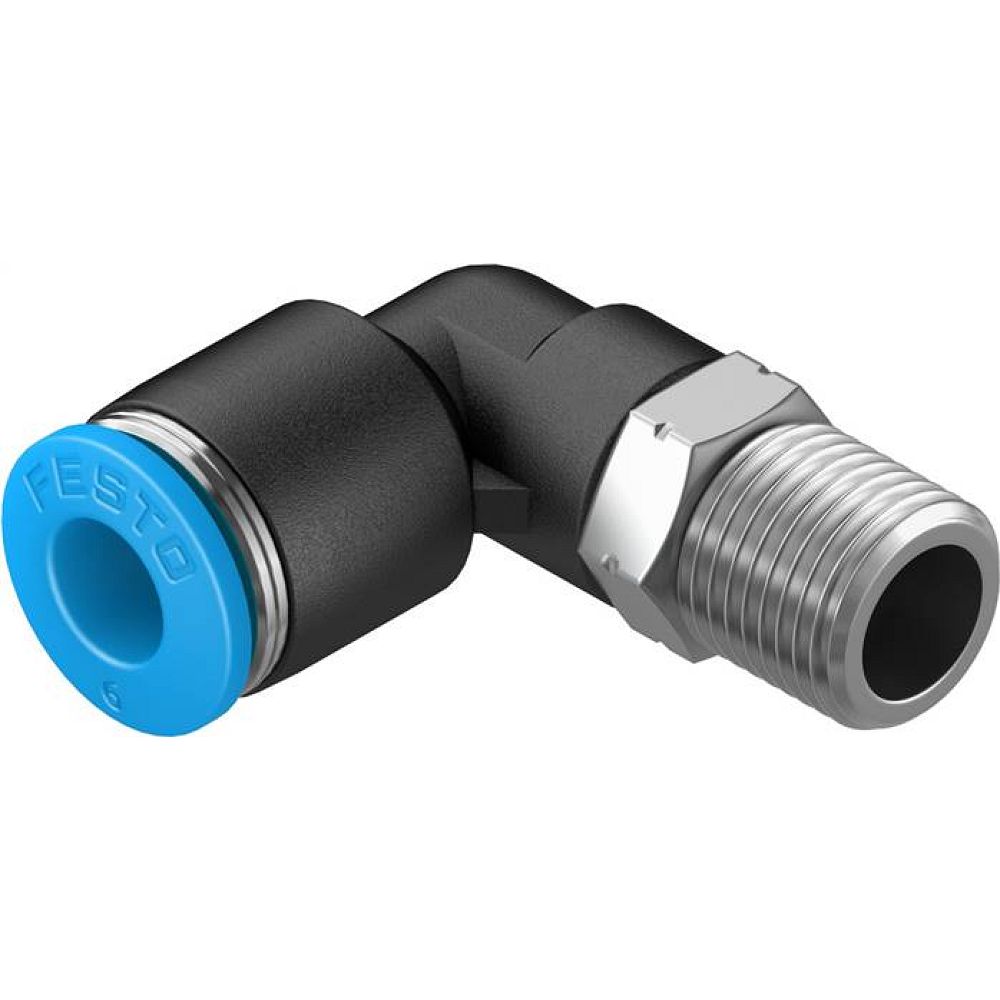

Festo 132049. Push-in L-fitting QSL-G1/8-6-100
€2.30
Excl. 19% VAT , excl. Shipping Cost
Festo 133195. Push-in connector QS-16-20
€6.52
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	Standard
Nominal size	11 mm
Type of seal on screwed plug	Sealing ring
Mounting position	optional
Design	Straight design
Size of pack	20
Design	Push-pull principle
Operating pressure complete temperature range	-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range	-0.95 bar ... 6 bar
Operating pressure complete temperature range	-13.775 psi ... 87 psi
Temperature-dependent operating pressure	-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure	-0.95 bar ... 14 bar
Temperature-dependent operating pressure	-13.775 psi ... 203 psi
Maritime classification	See certificate
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 °C ... 80 °C
Nominal torque	15.5 Nm
Tolerance for nominal tightening torque	± 20%
Product weight	33 g
Type of mounting	External hexagon, size 21 mm
Pneumatic connection, port 1	Male thread G3/8
Pneumatic connection, port 2	For tubing outer diameter of 12 mm
Colour of release ring	Blue
Note on materials	RoHS-compliant
Material housing	Brass, nickel-plated
Material release ring	POM
Material tubing seal	NBR
Material tubing clamp component	High-alloy stainless steel

More Information
Manufacturer Nr.	QS-G3/8-12-20
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568026974
Weight	0.032000
HS-Code	74122000
Article authenticity	Original product
Condition of article	New
