Festo 130789. Push-in bulkhead connector QSS-6-100

Name: Festo 130789. Push-in bulkhead connector QSS-6-100
Brand: Festo
SKU: FES-130789
Price: 3.47 EUR
Availability: InStock

€3.47

Excl. 19% VAT , excl. Shipping Cost

Article

FES-130789

Manufacturer Nr.

QSS-6-100

Push-in bulkhead connector

Festo 130789. Push-in bulkhead connector QSS-6-100 is available to buy in increments of 100

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 130789. Push-in bulkhead connector QSS-6-100
€3.47
Excl. 19% VAT , excl. Shipping Cost

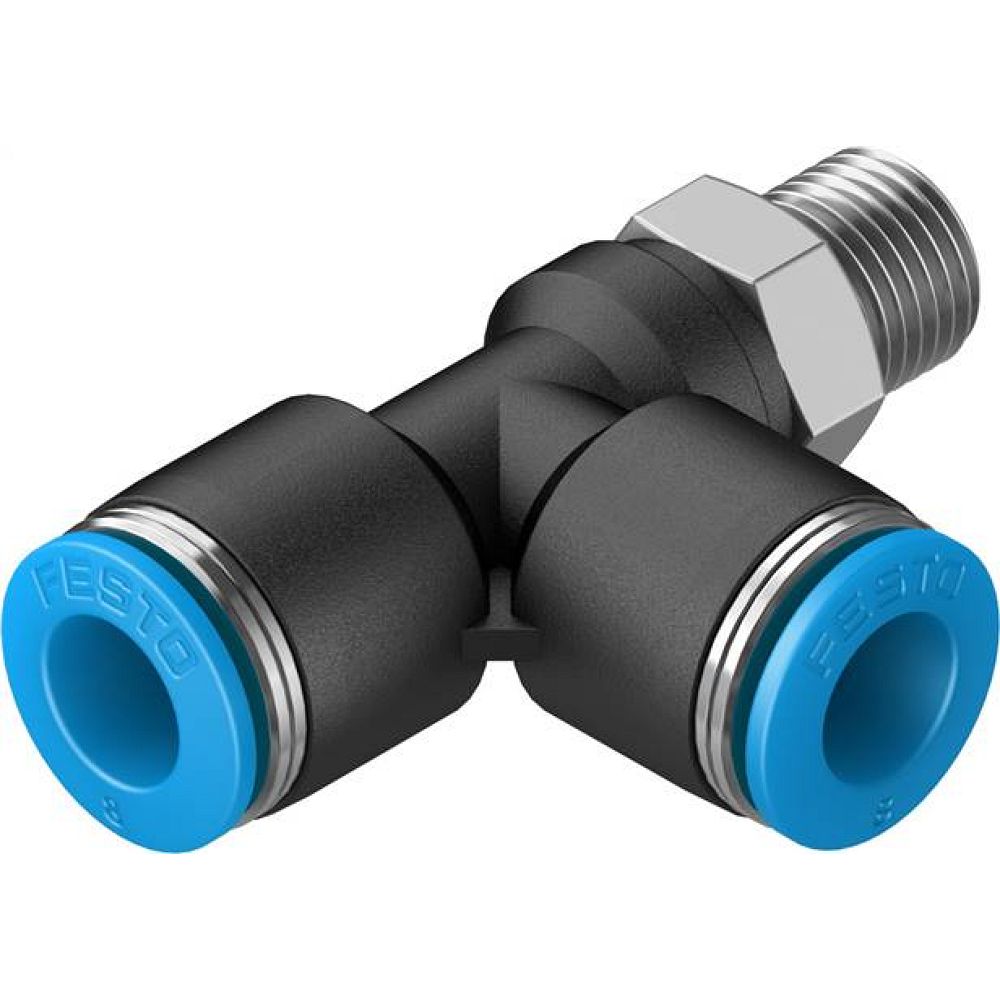

Festo 153120. Push-in T-fitting QSTL-1/8-8
€4.75
Excl. 19% VAT , excl. Shipping Cost

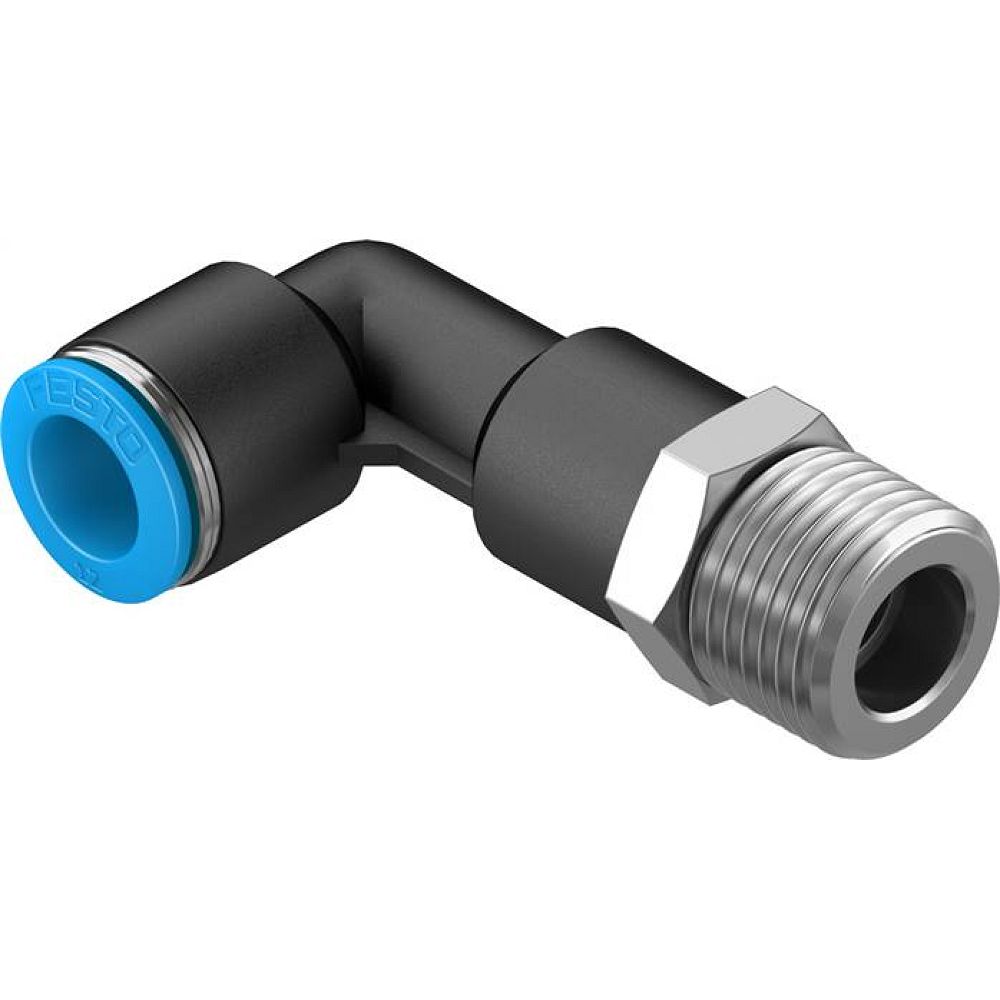

Festo 153085. Push-in L-fitting, long QSLL-1/2-12
€9.85
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	Standard
Nominal size	5 mm
Mounting position	optional
Design	Bulkhead
Size of pack	100
Design	Push-pull principle
Operating pressure complete temperature range	-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range	-0.95 bar ... 6 bar
Operating pressure complete temperature range	-13.775 psi ... 87 psi
Temperature-dependent operating pressure	-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure	-0.95 bar ... 14 bar
Temperature-dependent operating pressure	-13.775 psi ... 203 psi
Maritime classification	See certificate
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 °C ... 80 °C
Product weight	16 g
Type of mounting	External hexagon, size 17 mm
Pneumatic connection, port 1	For tubing outside diameter of 6 mm
Pneumatic connection, port 2	For tubing outside diameter of 6 mm
Colour of release ring	Blue
Note on materials	RoHS-compliant
Material housing	Anodised aluminium
Material release ring	POM
Material nut	Nickel-plated brass
Material tubing seal	NBR
Material tubing clamp component	High-alloy stainless steel

More Information
Manufacturer Nr.	QSS-6-100
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568025106
Weight	0.016000
HS-Code	76090000
Article authenticity	Original product
Condition of article	New
