Festo 153287. Push-in X connector QSX-12

Name: Festo 153287. Push-in X connector QSX-12
Brand: Festo
SKU: FES-153287
Price: 9.36 EUR
Availability: InStock

€9.36

Excl. 19% VAT , excl. Shipping Cost

Article

FES-153287

Manufacturer Nr.

QSX-12

Push-in X connector

Festo 153287. Push-in X connector QSX-12 is available to buy in increments of 10

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 153287. Push-in X connector QSX-12
€9.36
Excl. 19% VAT , excl. Shipping Cost
Festo 130732. Push-in L-fitting QSL-1/4-8-50
€2.59
Excl. 19% VAT , excl. Shipping Cost

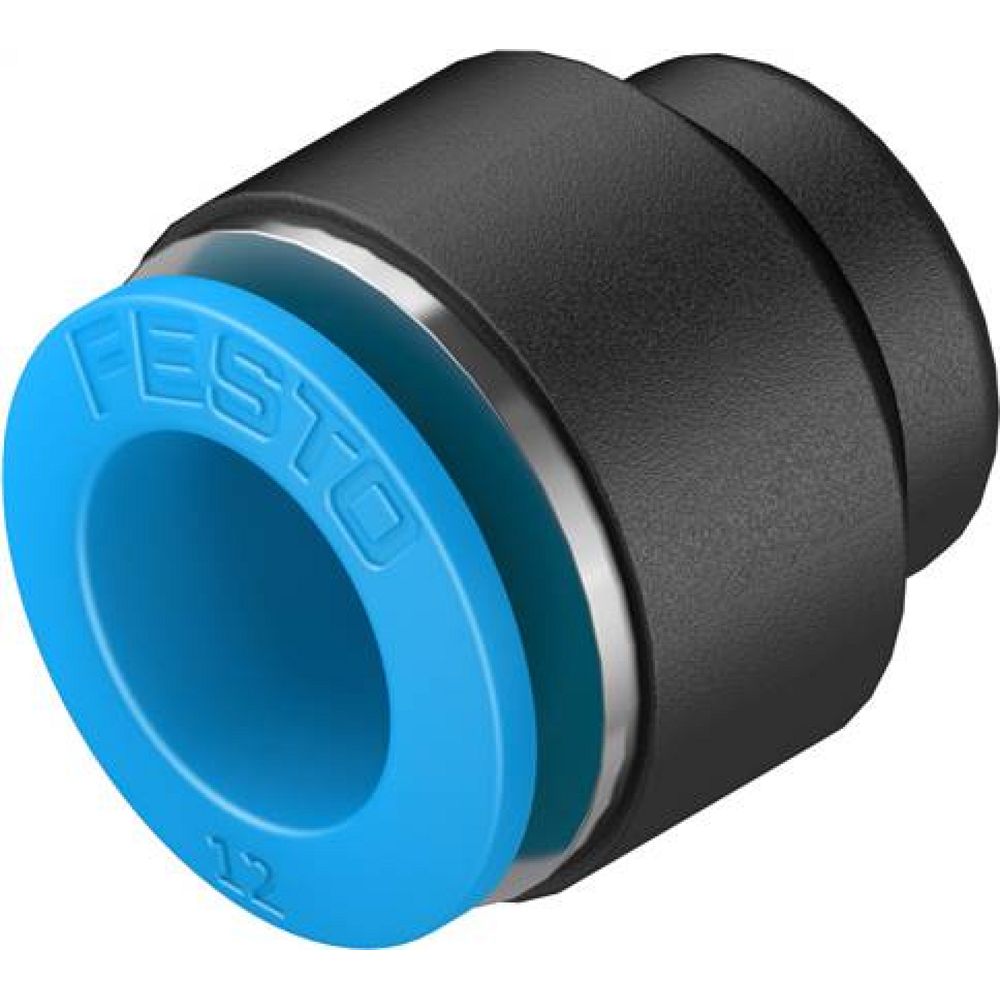

Festo 130708. Push-in cap QSC-12-20
€1.63
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	Standard
Nominal size	7.5 mm
Mounting position	optional
Design	X-shape
Size of pack	10
Design	Push-pull principle
Operating pressure complete temperature range	-0.095 MPa ... 0.6 MPa
Operating pressure complete temperature range	-0.95 bar ... 6 bar
Operating pressure complete temperature range	-13.775 psi ... 87 psi
Temperature-dependent operating pressure	-0.095 MPa ... 1.4 MPa
Temperature-dependent operating pressure	-0.95 bar ... 14 bar
Temperature-dependent operating pressure	-13.775 psi ... 203 psi
Maritime classification	See certificate
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 °C ... 80 °C
Product weight	46 g
Number of outputs	3
Number of supply lines	1
Pneumatic connection, port 1	For tubing outer diameter of 12 mm
Pneumatic connection, port 2	For tubing outer diameter of 12 mm
Colour of release ring	Blue
Note on materials	RoHS-compliant
Material housing	PBT
Material release ring	POM
Material tubing seal	NBR
Material tubing clamp component	High-alloy stainless steel

More Information
Manufacturer Nr.	QSX-12
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568033583
Weight	0.046000
HS-Code	39174000
Article authenticity	Original product
Condition of article	New
