Festo 153420. Push-in fitting, self-sealing QSMK-1/8-6
€4.59
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-153420
Manufacturer Nr.
QSK-1/8-6
Push-in fitting, self-sealing
Frequently Bought Together
-
This Item:
€4.59Excl. 19% VAT , excl. Shipping Cost
-
Festo 186309. Push-in L-fitting,self-sealing QSKL-G3/8-8
€7.47Excl. 19% VAT , excl. Shipping Cost
-

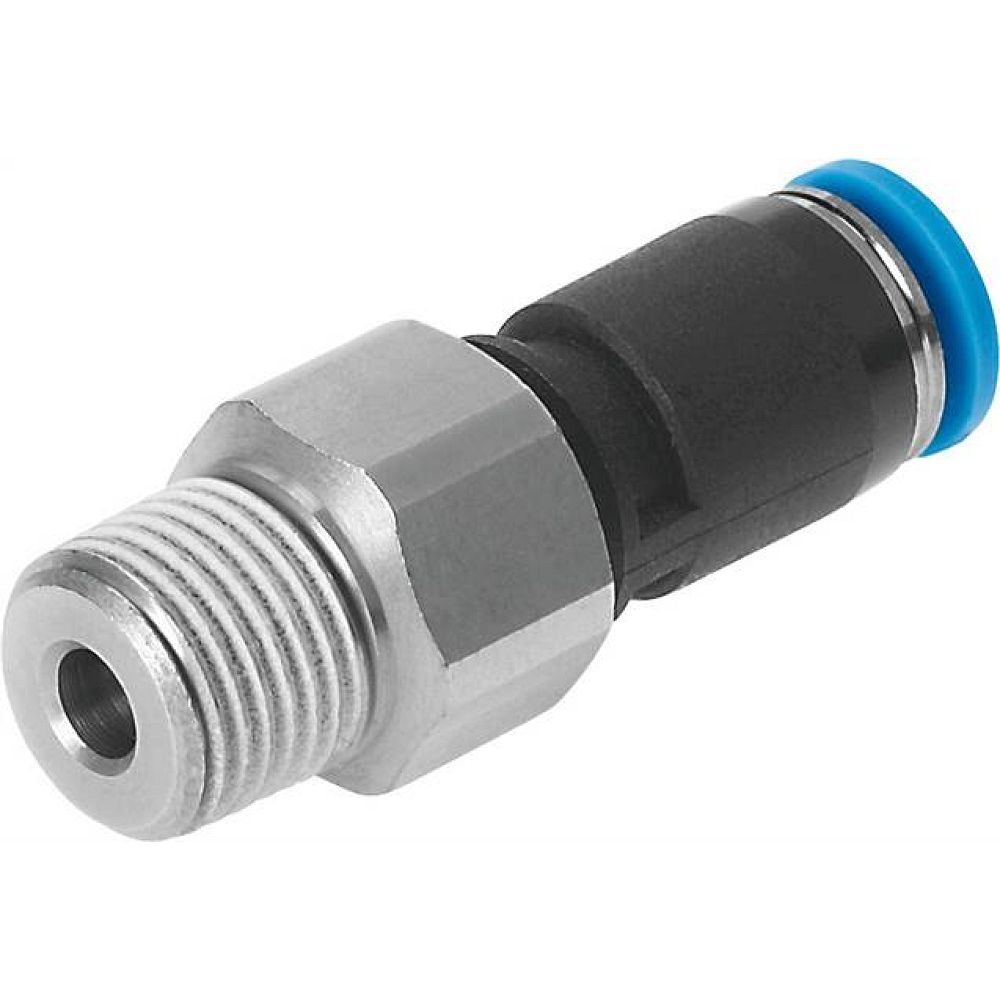

Festo 186279. Push-in fitting, rotatable QSR-G1/8-8
€20.15Excl. 19% VAT , excl. Shipping Cost
Total price
| Size | Standard |
| Nominal size | 3 mm |
| Approved tubing type | PAN- PAN-MF- PAN-R- PAN-V0- PEN- PFAN- PLN- PTFEN- PUN- PUN-CM- PUN-DUO- PUN-H- PUN-H-DUO- PUN-S- PUN-S-DUO- PUN-V0- |
| Tubing insertion depth | 13.5 mm |
| Type of seal on screwed plug | Coating |
| Mounting position | optional |
| Design | Straight design |
| Size of pack | 1 |
| Design | Push-pull principle |
| Operating pressure complete temperature range | -0.095 MPa ... 0.6 MPa |
| Operating pressure complete temperature range | -0.95 bar ... 6 bar |
| Operating pressure complete temperature range | -13.775 psi ... 87 psi |
| Temperature-dependent operating pressure | -0.095 MPa ... 1.4 MPa |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Temperature-dependent operating pressure | -13.775 psi ... 203 psi |
| Maritime classification | See certificate |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 80 °C |
| Nominal torque | 7 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 9.5 g |
| Type of mounting | External hexagon, size 10 mm |
| Pneumatic connection, port 1 | Male thread R1/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | Brass, nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
| Manufacturer Nr. | QSK-1/8-6 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568034535 |
| Weight | 0.011000 |
| HS-Code | 84813099 |
| Article authenticity | Original product |
| Condition of article | New |
