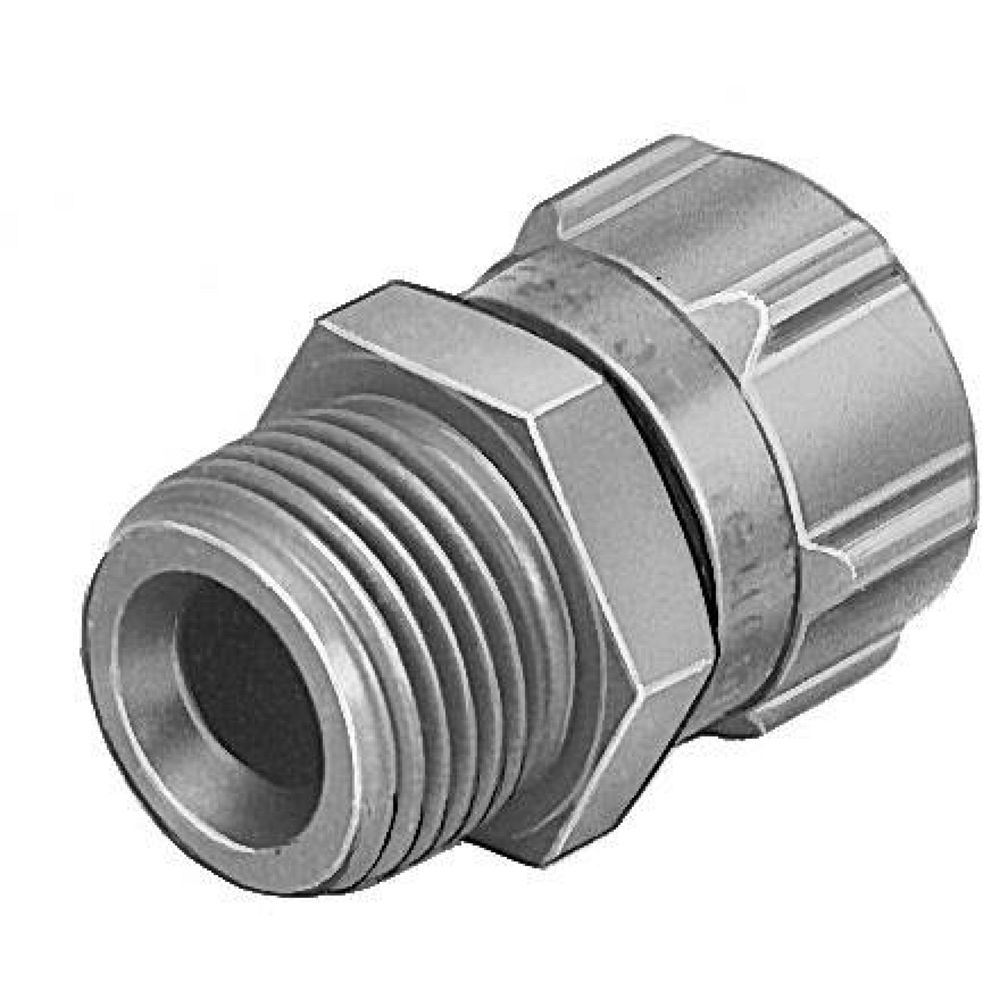

Festo 4098. Quick connector CK-1/2-PK-13

Name: Festo 4098. Quick connector CK-1/2-PK-13
Brand: Festo
SKU: FES-4098
Price: 7.27 EUR
Availability: InStock

€7.27

Excl. 19% VAT , excl. Shipping Cost

Article

FES-4098

Manufacturer Nr.

CK-1/2-PK-13

Quick connector

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 4098. Quick connector CK-1/2-PK-13
€7.27
Excl. 19% VAT , excl. Shipping Cost
Festo 2033. Quick connector CK-3/8-PK-9
€3.96
Excl. 19% VAT , excl. Shipping Cost

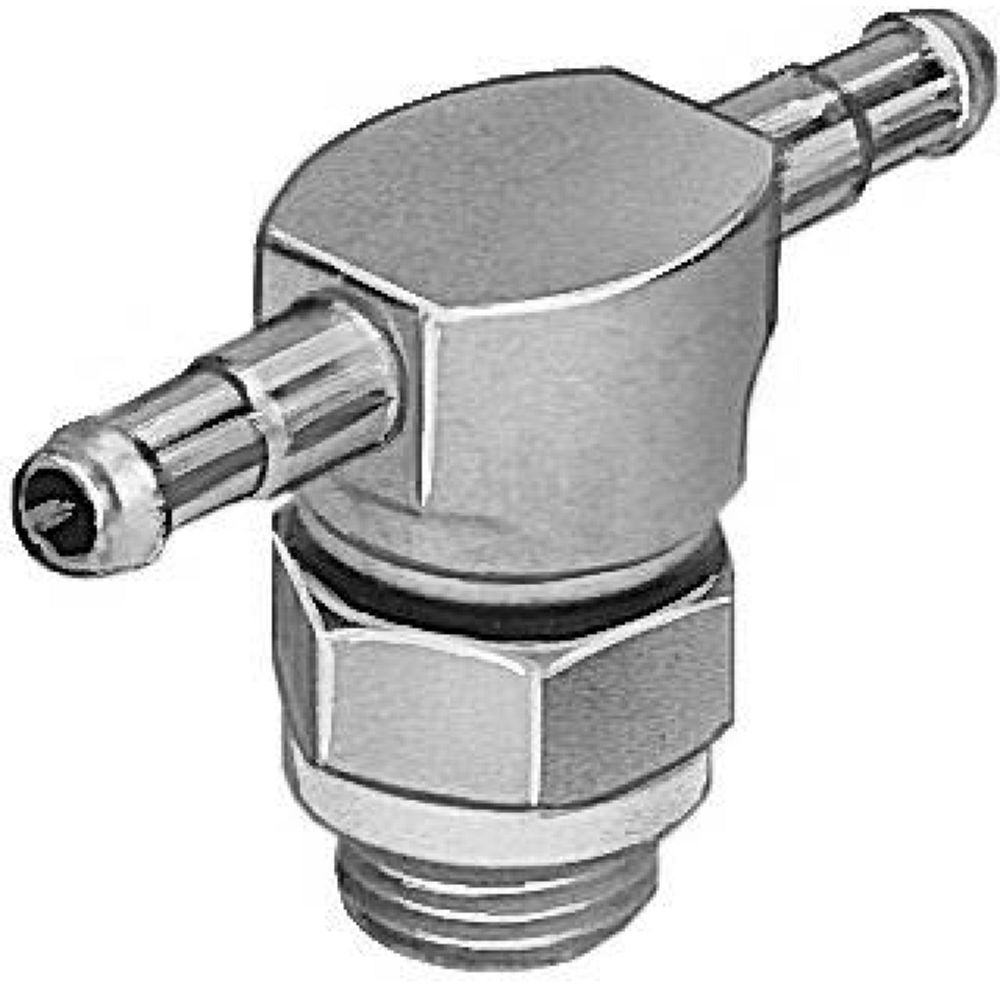

Festo 12432. Barbed T-fitting TCN-M5-PK-4
€6.55
Excl. 19% VAT , excl. Shipping Cost

Total price

Nominal size	11.7 mm
Type of seal on screwed plug	Sealing ring
Mounting position	optional
Design	Straight design
Operating pressure complete temperature range	-0.095 MPa ... 1 MPa
Operating pressure complete temperature range	-0.95 bar ... 10 bar
Operating pressure complete temperature range	-13.775 psi ... 145 psi
Note on operating pressure	Water: max. 0.6 MPa at max. 50°C
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot medium	Lubricated operation possible Water: G thread only possible with OL sealing ring
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-10 °C ... 60 °C
Nominal torque	14 Nm
Tolerance for nominal tightening torque	± 20%
Pneumatic connection, port 1	Male thread G1/2
Pneumatic connection, port 2	For barbed fitting I.D. 13 mm with nut
Material union nut	Wrought aluminium alloy, anodised
Material screwed plug	Anodised wrought aluminium alloy
Note on materials	RoHS-compliant
Material sealing ring	Reinforced PA TPE-U(PU)

More Information
Manufacturer Nr.	CK-1/2-PK-13
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568000547
Weight	0.029000
HS-Code	76090000
Article authenticity	Original product
Condition of article	New
