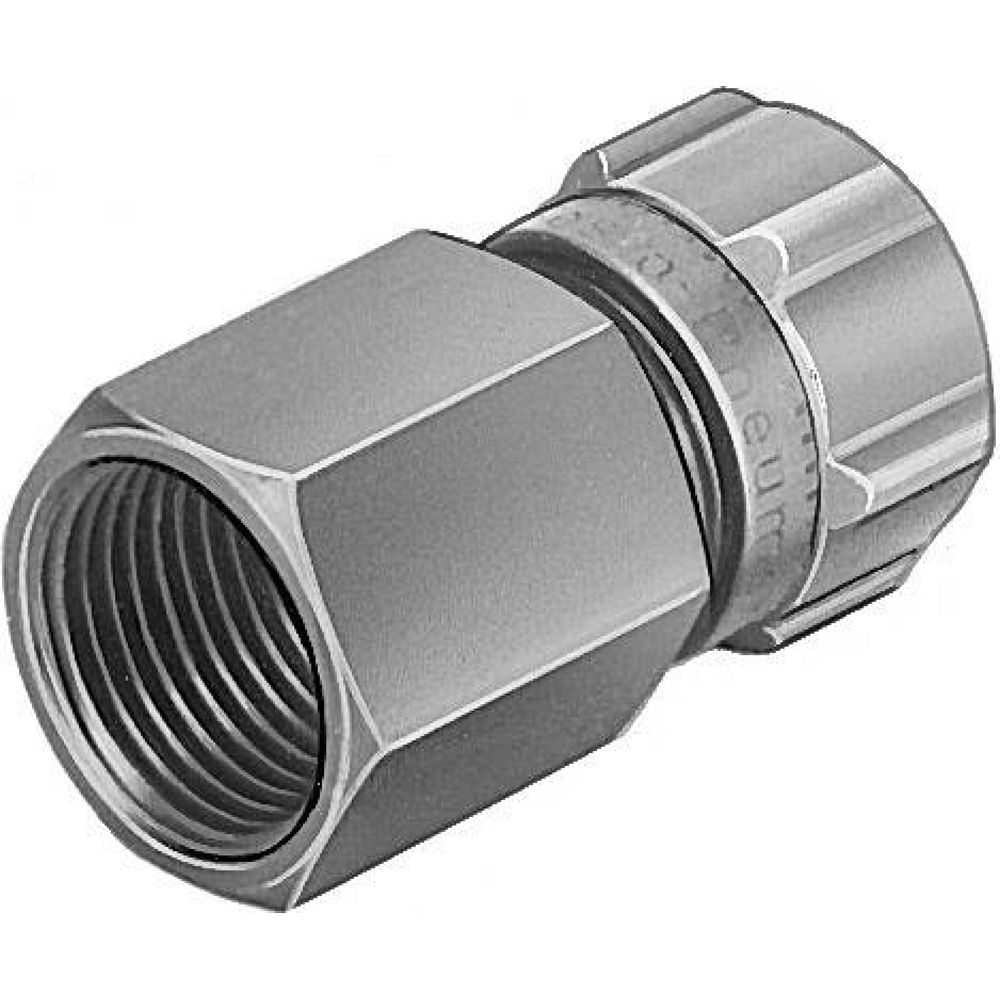

Festo 3710. Quick connector ACK-3/8-PK-9
Manufacturer Nr.
ACK-3/8-PK-9
Festo 3710. Quick connector ACK-3/8-PK-9 is available to buy in increments of 10
Frequently Bought Together
Nominal size 8 mm Type of seal on screwed plug Sealing ring Mounting position optional Design Straight design Size of pack 10 Operating pressure complete temperature range -0.095 MPa ... 1 MPa Operating pressure complete temperature range -0.95 bar ... 10 bar Operating pressure complete temperature range -13.775 psi ... 145 psi Note on operating pressure Water: max. 0.6 MPa at max. 50°C Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Water (liquid, ice-free) Note on operating and pilot medium Lubricated operation possible
Water: G thread only possible with OL sealing ring Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C ... 60 °C Nominal torque 12.5 Nm Tolerance for nominal tightening torque ± 20% Pneumatic connection, port 1 Female thread G3/8 Pneumatic connection, port 2 For barbed fitting inside diameter of 9 mm with nut Material union nut Wrought aluminium alloy, anodised Material screwed plug Anodised wrought aluminium alloy Note on materials RoHS-compliant Material sealing ring Reinforced PA
TPE-U(PU)
More Information
Manufacturer Nr.
ACK-3/8-PK-9
Manufacturer
Festo
GPSR manufacturer information
Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN
4052568018573
Weight
0.016000
HS-Code
76090000
Article authenticity
Original product
Condition of article
New
