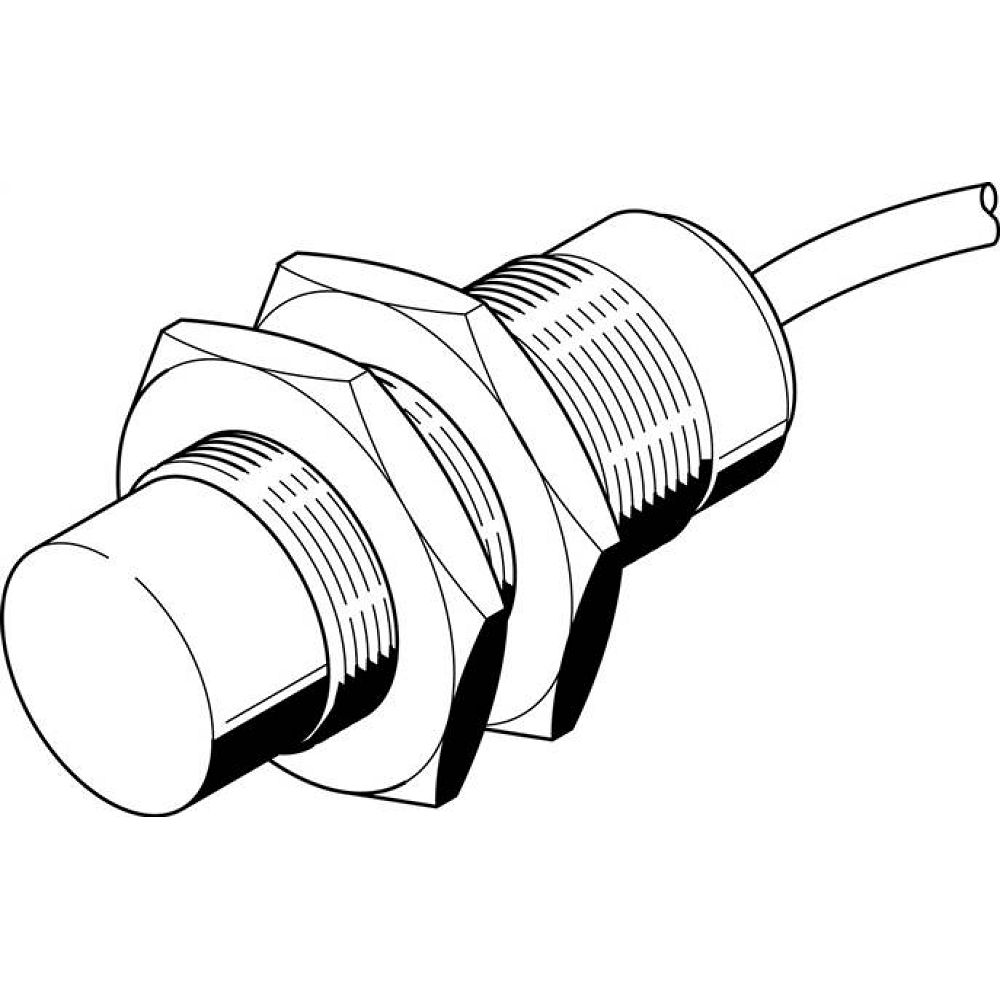

Festo 538323. Proximity sensor SIEN-M12B-PS-K-L-PA
Manufacturer Nr.
SIEN-M12B-PS-K-L-PA
Frequently Bought Together
Design Round Conforms to standard EN 60947-5-2 Symbol 00991702 Approval RCM trademark
c UL us listed (OL) CE mark (see declaration of conformity) To EU EMC Directive Measuring principle Inductive Rated operating distance 2 mm Assured operating distance 1.62 mm Reduction factors Aluminium = 0.35 - 0.5
Stainless steel St 18/8 = 0.6 - 1.0
Copper = 0.25 - 0.45
Brass = 0.35 - 0.5
Steel St 37 = 1.0 Ambient temperature -25 °C ... 70 °C Repetition accuracy 0.04 mm Switching output PNP Switching element function N/O contact Hysteresis 0.06 mm ... 0.3 mm Max. switching frequency DC 2000 Hz Max. output current 200 mA Voltage drop 1.8 V Short circuit current rating Pulsed Operational voltage range DC 10 V ... 30 V Residual ripple 10 % No-load supply current 15 mA Reverse polarity protection For all electrical connections Electrical connection 3-wire
Cable Cable length 2.5 m Material cable sheath PVC Material insulating sheath PVC Size M12 Type of mounting Via lock nut Tightening torque 1 Nm Mounting type Flush Product weight 113 g Material housing PA-reinforced Switching status indication Yellow LED Ambient temperature with moving cable 0 °C ... 70 °C Degree of protection IP65
IP67 Corrosion resistance class CRC 4 - Very high corrosion stress Additional information for sensor selection with standard sensing distance Electrical output PNP Selection of sensor design Polyamide housing
More Information
Manufacturer Nr.
SIEN-M12B-PS-K-L-PA
Manufacturer
Festo
GPSR manufacturer information
Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN
4052568089207
Weight
0.115000
HS-Code
85365019
Article authenticity
Original product
Condition of article
New
