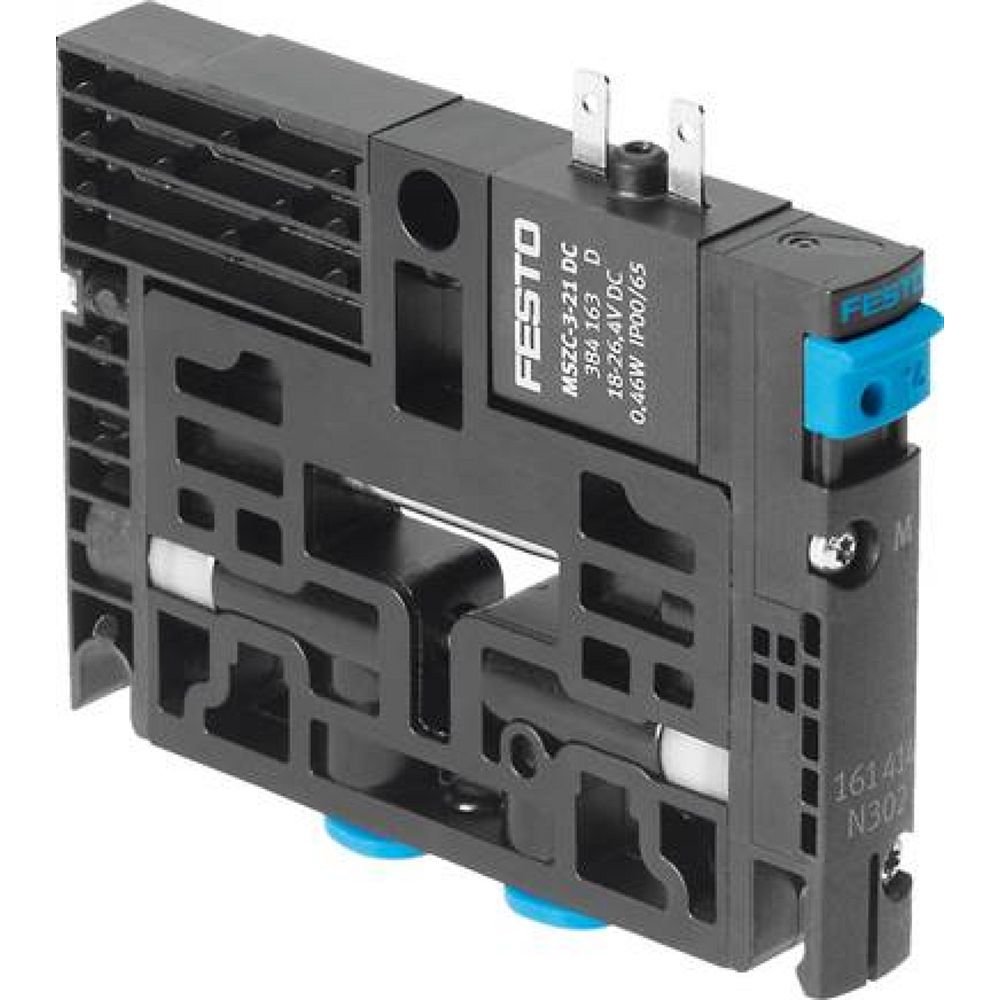

Festo 161414. Solenoid valve CPV10-M1H-5LS-M7
Manufacturer Nr.
CPV10-M1H-5LS-M7
Frequently Bought Together
Valve function 5/2-way, monostable Type of actuation Electric Valve size 10 mm Standard nominal flow rate 400 l/min pneumatic working port M7 Operating voltage 24V DC Operating pressure -0.09 MPa ... 1 MPa Operating pressure -0.9 bar ... 10 bar Design Piston gate valve Type of reset Pneumatic spring Degree of protection IP65 Nominal size 4 mm Exhaust-air function Without flow control option Sealing principle Soft Mounting position optional Manual override Detenting
Non-detenting Type of piloting Pilot actuated Pilot air supply External
Internal Flow direction Non-reversible Symbol 00991027 lap Positive overlap Pilot pressure 0.3 MPa ... 0.8 MPa Pilot pressure 3 bar ... 8 bar b value 0.4 C value 1.6 l/sbar Switching time off 27 ms Switching time on 17 ms Duty cycle 100% in conjunction with holding current reduction Electrical power consumption 0.46 W Max. positive test pulse with 0 signal 1400 µs Max. negative test pulse with 1 signal 700 µs Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 °C ... 40 °C Media temperature -5 °C ... 50 °C Ambient temperature -5 °C ... 50 °C Product weight 70 g Type of mounting With through-hole Pilot air port 12/14 Common line Pilot exhaust port 82/84 Common line Pneumatic connection, port 1 Common line Pneumatic connection, port 11 Common line Pneumatic connection, port 2 M7 Pneumatic connection 3/5 combined Common line Pneumatic connection, port 4 M7 Note on materials RoHS-compliant Material seals HNBR
NBR Material housing Die-cast aluminium
Brass
POM
PPS
Steel
More Information
Manufacturer Nr.
CPV10-M1H-5LS-M7
Manufacturer
Festo
GPSR manufacturer information
Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN
4052568012380
Weight
0.070000
HS-Code
84812090
Article authenticity
Original product
Condition of article
New
