Festo 33970. Vacuum security valve ISV-1/4

Name: Festo 33970. Vacuum security valve ISV-1/4
Brand: Festo
SKU: FES-33970
Price: 30.77 EUR
Availability: InStock

€30.77

Excl. 19% VAT , excl. Shipping Cost

Article

FES-33970

Manufacturer Nr.

ISV-1/4

Vacuum security valve

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 33970. Vacuum security valve ISV-1/4
€30.77
Excl. 19% VAT , excl. Shipping Cost

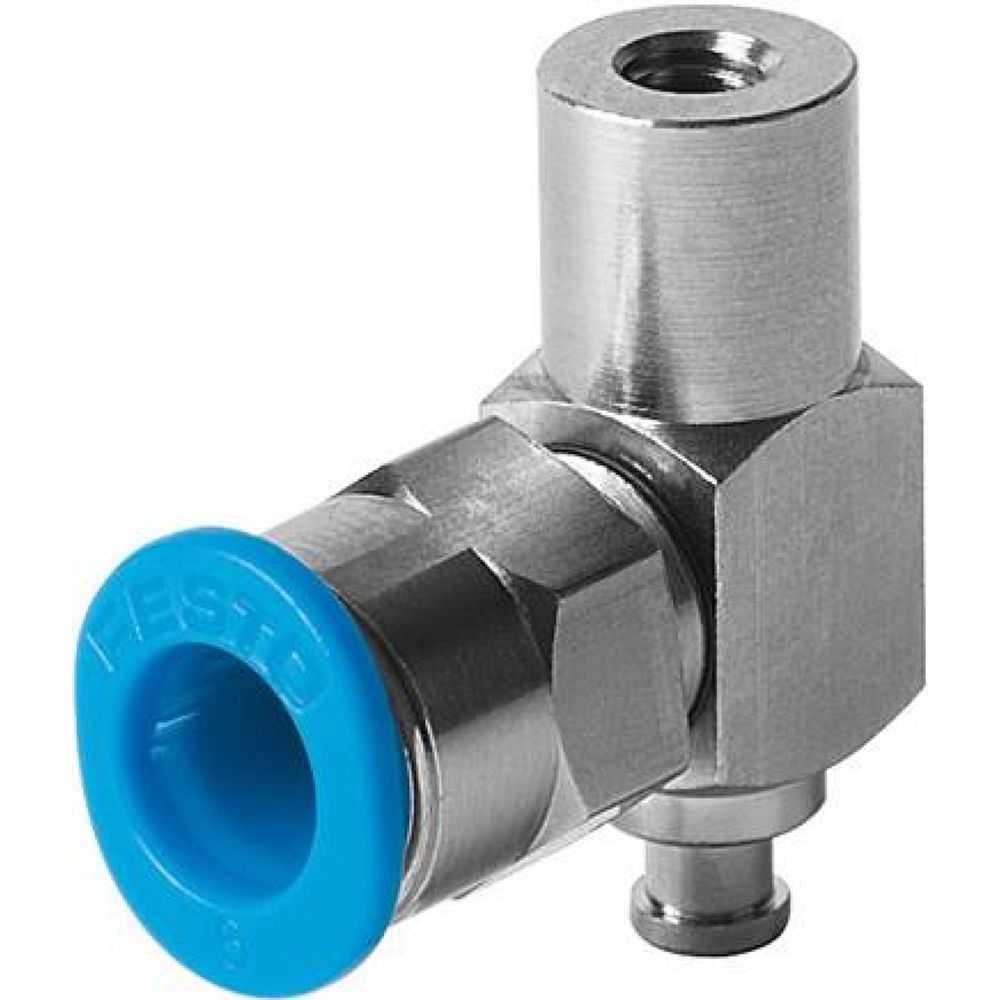

Festo 189205. Suction cup complete holder ESH-HB-2-QS
€18.17
Excl. 19% VAT , excl. Shipping Cost

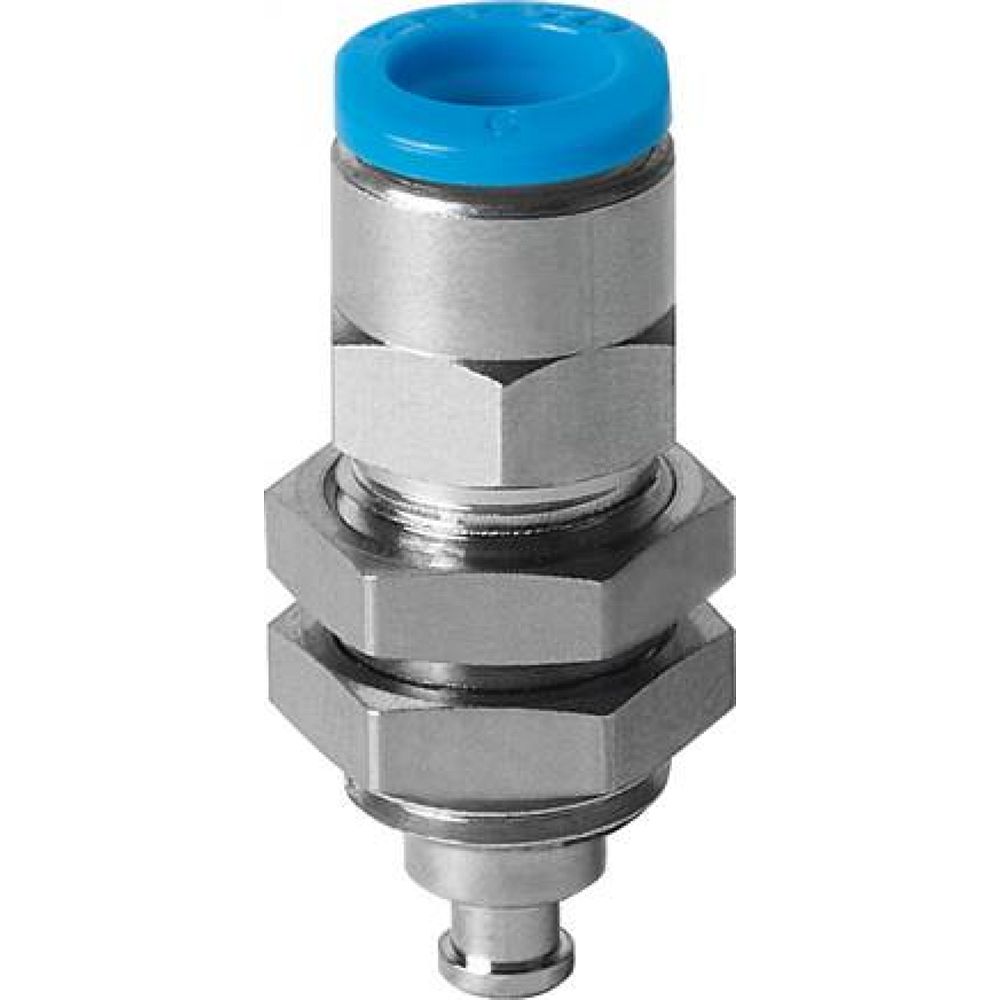

Festo 189195. Suction cup complete holder ESH-HA-2-QS
€24.79
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	G1/4
Suitable for ejector pulse	8 MPa
Suitable for ejector pulse	8 bar
Mounting position	optional
Symbol	00991481
Operating pressure	-0.095 MPa ... 0 MPa
Operating pressure	-0.95 bar ... 0 bar
Required suction volumetric flow at -0.05 MPa (-0.5 bar, -7.25 psi)	1.6 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Ambient temperature	-10 °C ... 60 °C
Product weight	16 g
Type of mounting	Screw-in
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Material spring	High-alloy steel
Material filter	Wrought aluminium alloy Stainless steel mesh
Material housing	Wrought aluminium alloy
Material hollow bolt	Wrought aluminium alloy
Material float	POM

More Information
Manufacturer Nr.	ISV-1/4
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568067786
Weight	0.016000
HS-Code	84812090
Article authenticity	Original product
Condition of article	New
