Festo 534307. Ball valve VAPB-1 1/4-F-40-F0405
€46.94
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-534307
Manufacturer Nr.
VAPB-1 1/4-F-40-F0405
Ball valve
Frequently Bought Together
-
This Item:
€46.94Excl. 19% VAT , excl. Shipping Cost
-
Festo 3022831. Pinch valve VZQA-C-M22U-15-GG-ALV4N-4
€172.76Excl. 19% VAT , excl. Shipping Cost
-
Festo 3968923. Pinch valve VZQA-C-M22U-25-GG-ALALE-4
€180.07Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | 2-way ball valve |
| Type of actuation | Mechanical |
| Sealing principle | Soft |
| Mounting position | optional |
| Type of mounting | In-line installation |
| Connection Process valve | Rp1 1/4 |
| Switching position indicator | Slot direction = flow direction |
| Flange hole pattern | F04 F05 |
| Nominal size DN | 32 |
| Flow direction | Reversible |
| Nominal pressure PN | 40 |
| Breakaway torque at differential pressure, nominal pressure, process valve PN | 15 Nm |
| Break-away torque at a differential pressure of 1 MPa (10 bar, 145 psi) | 11.9 Nm |
| Based on standard | ISO 5211 |
| Symbol | 00991458 |
| Medium | Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases Water Neutral fluids |
| Media temperature | -20 °C ... 150 °C |
| Flow rate Kv | 121 m³/h |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Material housing | Brass Nickel-plated |
| Material number housing | 2.0402 CW617N |
| Material seals | HNBR PTFE |
| Material ball | Brass Hard-chrome-plated |
| Material number ball | 2.0402 CW617N |
| Material shaft | Brass |
| Material number shaft | 2.0401 CW614N |
| Product weight | 1300 g |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Manufacturer Nr. | VAPB-1 1/4-F-40-F0405 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568086794 |
| Weight | 1.200000 |
| HS-Code | 84818081 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 3535619. Angle seat valve VZXF-L-M22C-M-A-G12-120-M1-H3B1T-50-16
€118.20
Excl. 19% VAT ,
excl. Shipping Cost

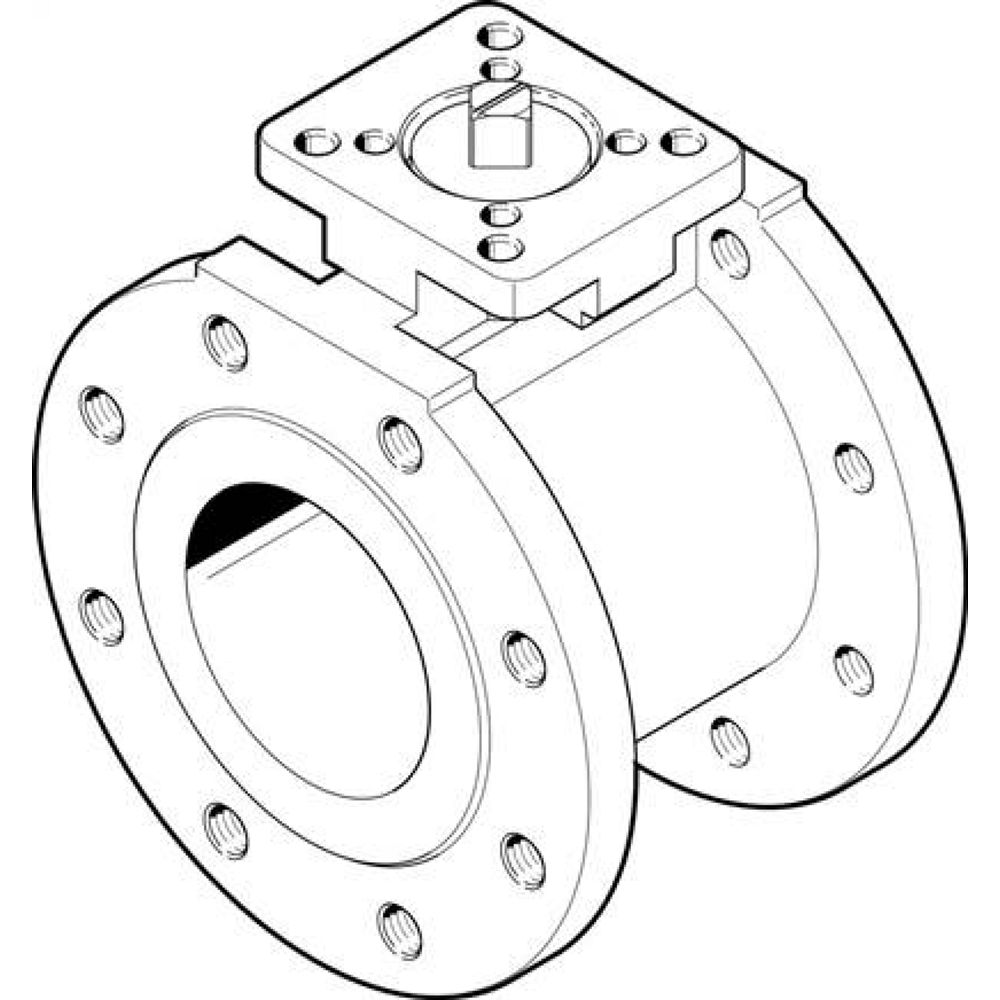

Festo 1692209. Ball valve VZBC-100-FF-16-22-F0710-V4V4T
