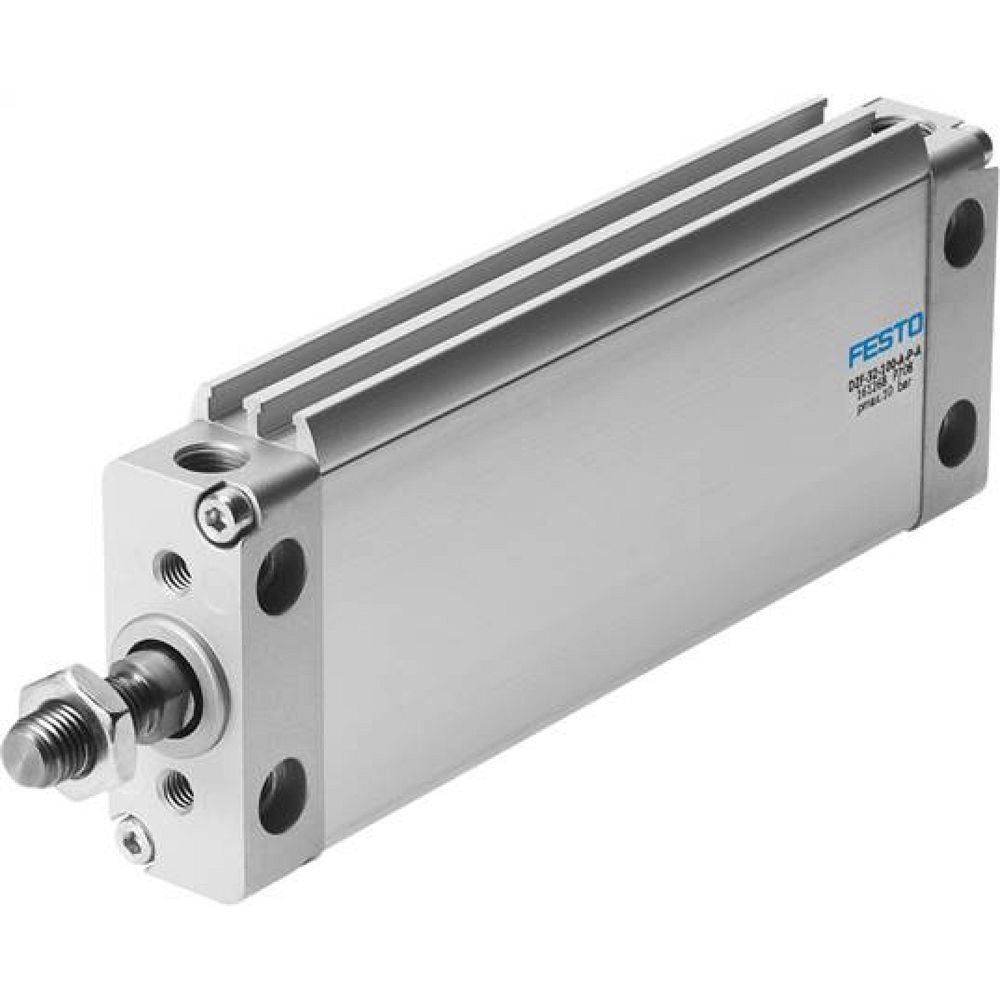

Festo 161252. Flat cylinder DZF-25-40-A-P-A
€148.28
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-161252
Manufacturer Nr.
DZF-25-40-A-P-A
Flat cylinder
Frequently Bought Together
-
This Item:
€148.28Excl. 19% VAT , excl. Shipping Cost
-

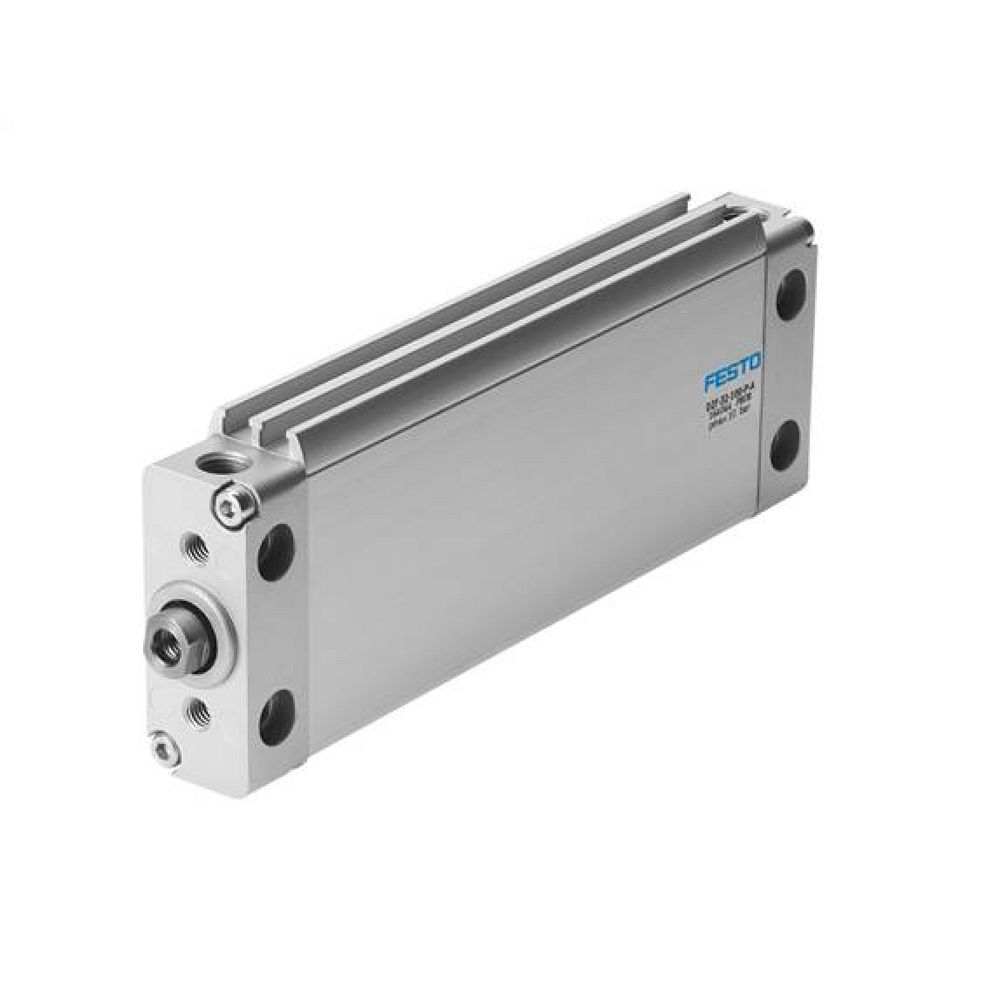

Festo 164049. Flat cylinder DZF-32-320-P-A
€185.74Excl. 19% VAT , excl. Shipping Cost
-

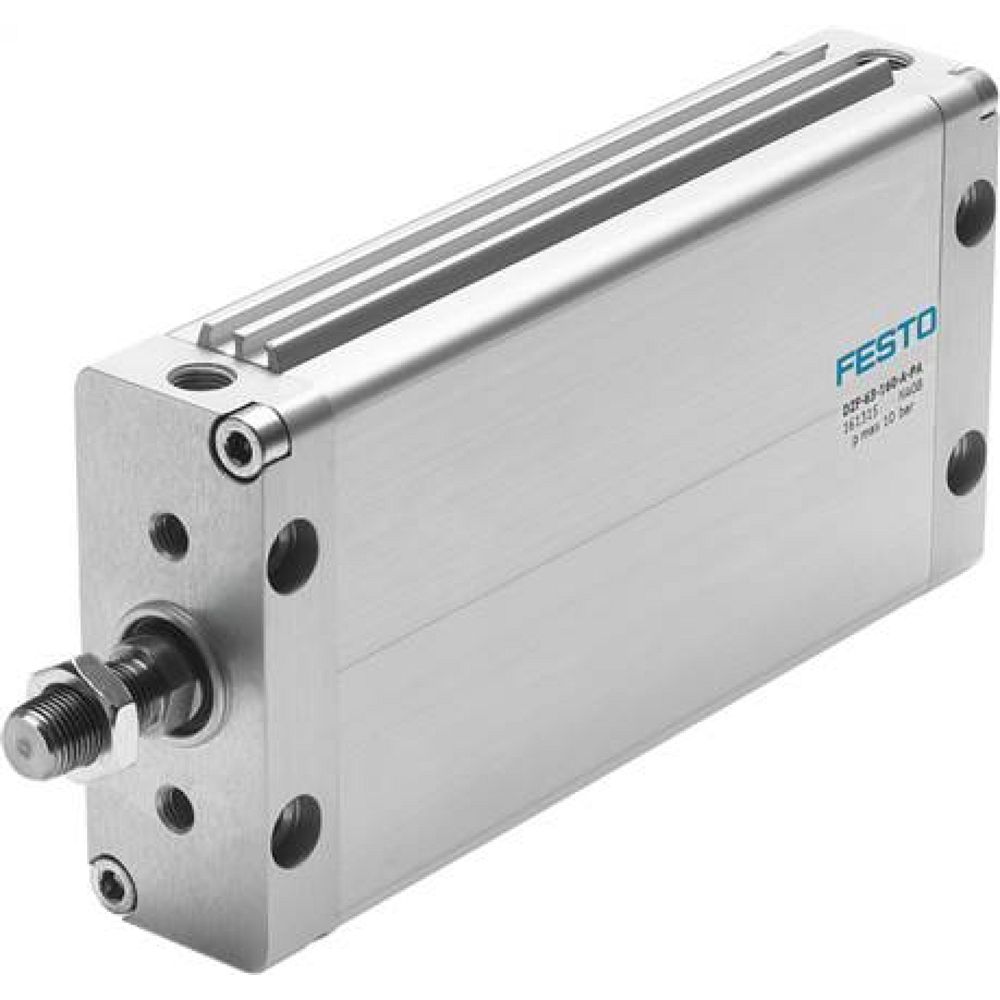

Festo 161302. Flat cylinder DZF-50-250-A-P-A
€219.49Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 40 mm |
| Piston diameter | 25 mm Equivalent diameter |
| Torsional backlash at piston rod +/- | 1 deg |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Double-acting |
| Design | Piston Piston rod |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Protection against torque/guide | Oval piston |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Max. torque for protection against torsion | 0.5 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 247 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 295 N |
| Moving mass for 0 mm stroke | 40 g |
| Additional moving mass per 10 mm stroke | 6 g |
| Additional weight per 10 mm stroke | 18 g |
| Basic weight for 0 mm stroke | 168 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | M5 |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material housing | Aluminium Smooth anodised |
| Material piston rod | High-alloy stainless steel |
| Manufacturer Nr. | DZF-25-40-A-P-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568128685 |
| Weight | 0.260000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
