Festo 170956. Guided drive DFM-63-100-P-A-KF
€581.50
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-170956
Manufacturer Nr.
DFM-63-100-P-A-KF
Guided drive
Frequently Bought Together
-
This Item:
€581.50Excl. 19% VAT , excl. Shipping Cost
-
Festo 159896. Twin cylinder DPZ-32-100-P-A-S2
€830.52Excl. 19% VAT , excl. Shipping Cost
-

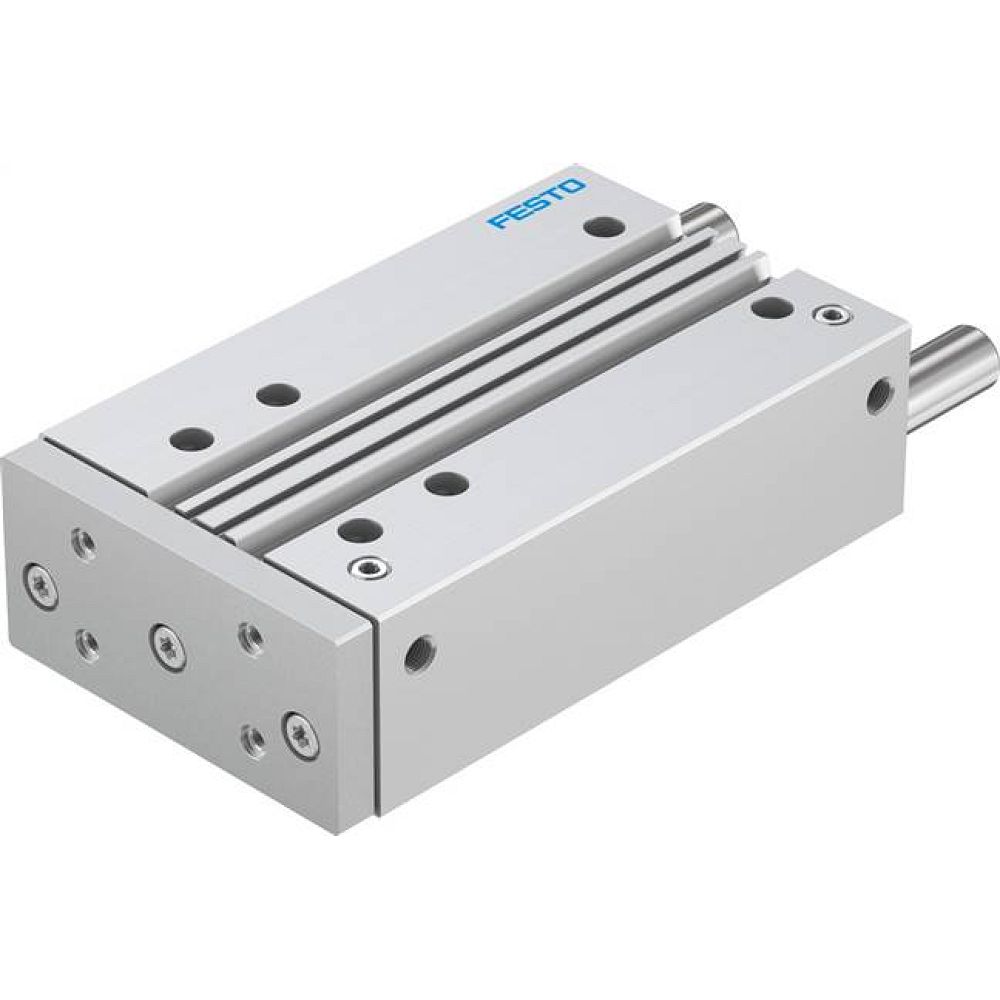

Festo 170884. Guided drive DFM-63-200-P-A-GF
€562.39Excl. 19% VAT , excl. Shipping Cost
Total price
| Distance from centre of gravity of load to yoke plate xs | 50 mm |
| Stroke | 100 mm |
| Piston diameter | 63 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Max. speed | 0.6 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5 °C ... 60 °C |
| Impact energy in end positions | 1.3 J |
| Max. force Fy | 1487 N |
| Max. force Fy static | 1600 N |
| Max. force Fz | 1487 N |
| Max. force Fz static | 1600 N |
| Max. moment Mx | 92.97 Nm |
| Max. torque Mx static | 100 Nm |
| Max. moment My | 47.58 Nm |
| Max. torque My static | 51.2 Nm |
| Max. moment Mz | 47.58 Nm |
| Max. torque Mz static | 51.2 Nm |
| Max. permissible torque load Mx as a function of stroke | 16.77 Nm |
| Max. effective load dependent upon stroke at defined distance xs | 214 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1750 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1870 N |
| Moving mass | 2868 g |
| Product weight | 6461 g |
| Centre of gravity of moving mass as a function of stroke | 59.4 mm |
| alternative connections | See product drawing |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Manufacturer Nr. | DFM-63-100-P-A-KF |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568140373 |
| Weight | 6.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
