Festo 189464. Mini guided drive DFC-6-20-P-A-KF
€423.89
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-189464
Manufacturer Nr.
DFC-6-20-P-A-KF
Mini guided drive
Frequently Bought Together
-
This Item:
€423.89Excl. 19% VAT , excl. Shipping Cost
-

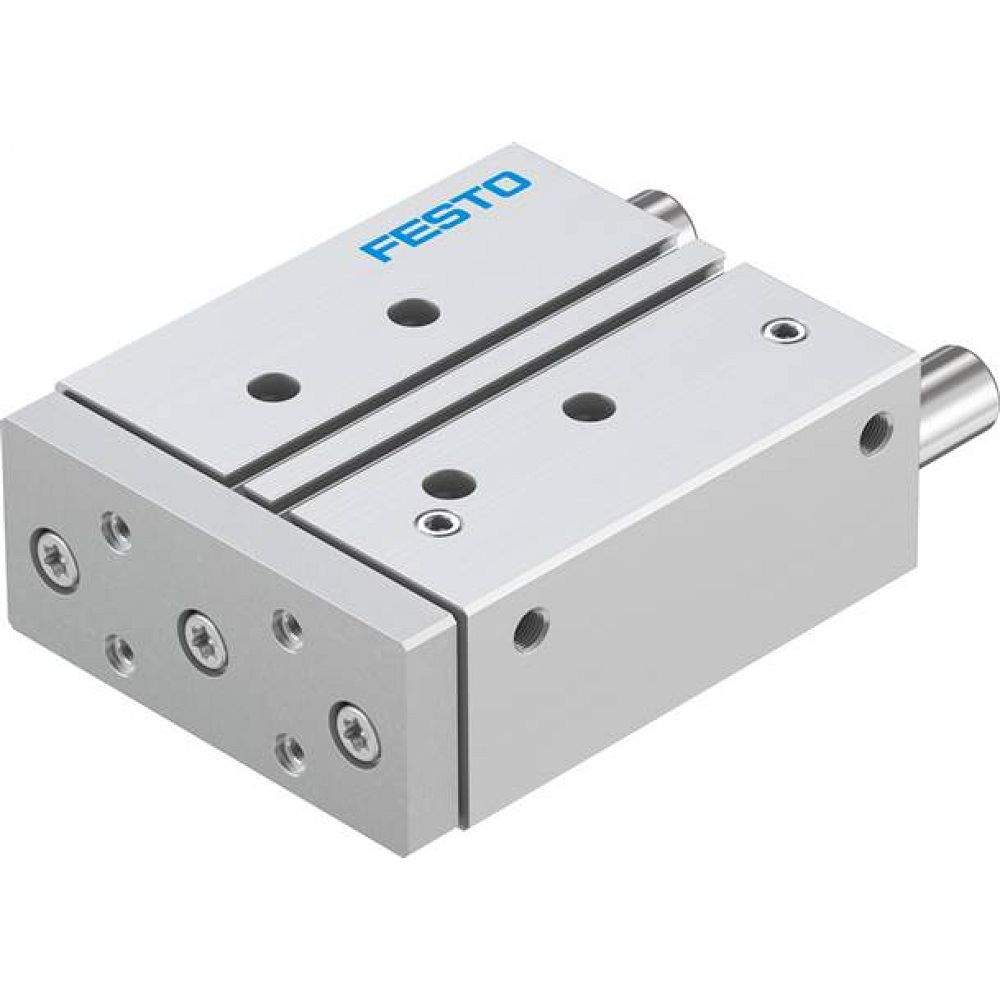

Festo 170866. Guided drive DFM-40-80-P-A-GF
€360.21Excl. 19% VAT , excl. Shipping Cost
-
Festo 159943. Twin cylinder DPZJ-10-50-P-A-S2
€494.37Excl. 19% VAT , excl. Shipping Cost
Total price
| Distance from centre of gravity of load to yoke plate xs | 10 mm |
| Stroke | 20 mm |
| Piston diameter | 6 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Operating pressure | 0.15 MPa ... 1 MPa |
| Operating pressure | 1.5 bar ... 10 bar |
| Max. speed | 1 m/s |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -5 °C ... 60 °C |
| Impact energy in end positions | 0.008 J |
| Max. moment Mx | 0.1 Nm |
| Max. effective load dependent upon stroke at defined distance xs | 4.6 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 12.5 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 17 N |
| Moving mass | 8.8 g |
| Moving mass for 0 mm stroke | 8.8 g |
| Additional moving mass per 10 mm stroke | 2.8 g |
| Product weight | 44 g |
| Pneumatic connection | M3 |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
| Manufacturer Nr. | DFC-6-20-P-A-KF |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568150099 |
| Weight | 0.065000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
