Festo 188305. Short-stroke cylinder AEVC-80-25-A-P-A

Name: Festo 188305. Short-stroke cylinder AEVC-80-25-A-P-A
Brand: Festo
SKU: FES-188305
Price: 192.82 EUR
Availability: InStock

€192.82

Excl. 19% VAT , excl. Shipping Cost

Article

FES-188305

Manufacturer Nr.

AEVC-80-25-A-P-A

Short-stroke cylinder

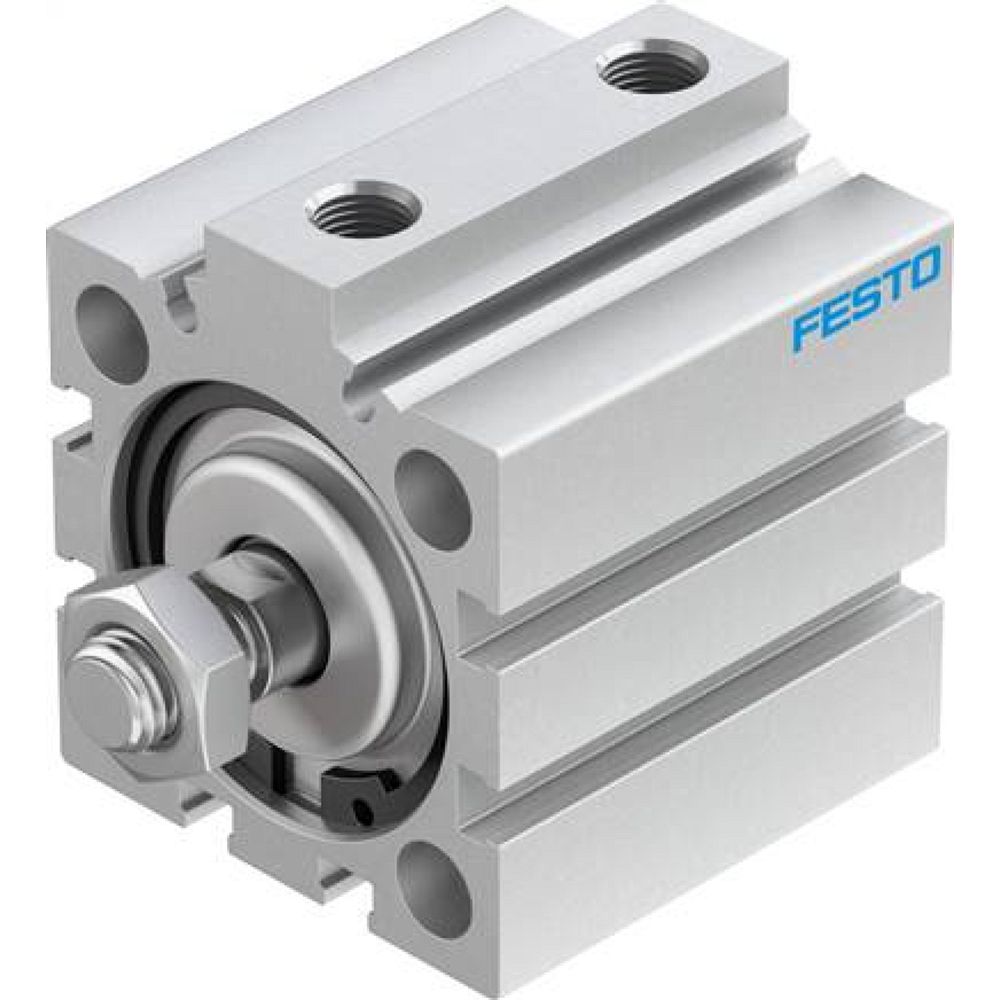

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 188305. Short-stroke cylinder AEVC-80-25-A-P-A
€192.82
Excl. 19% VAT , excl. Shipping Cost

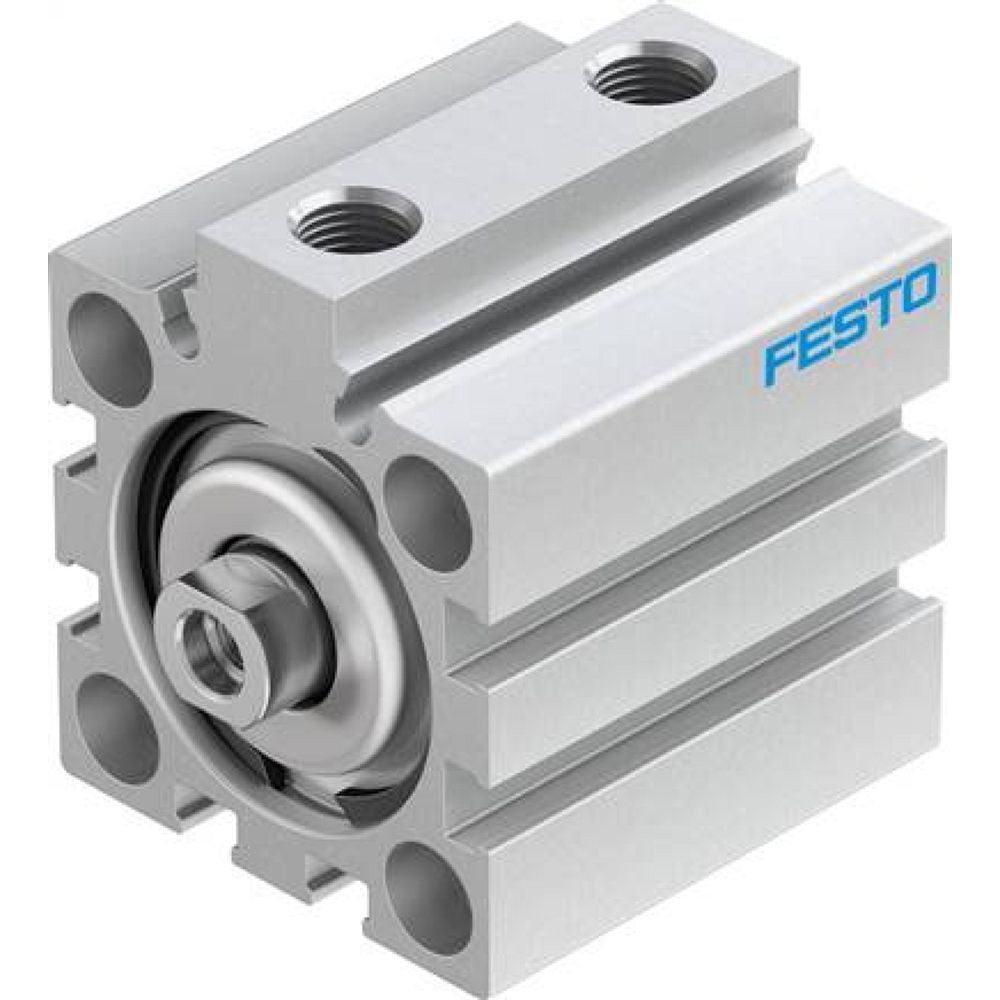

Festo 188206. Short-stroke cylinder ADVC-32-15-I-P-A
€66.36
Excl. 19% VAT , excl. Shipping Cost

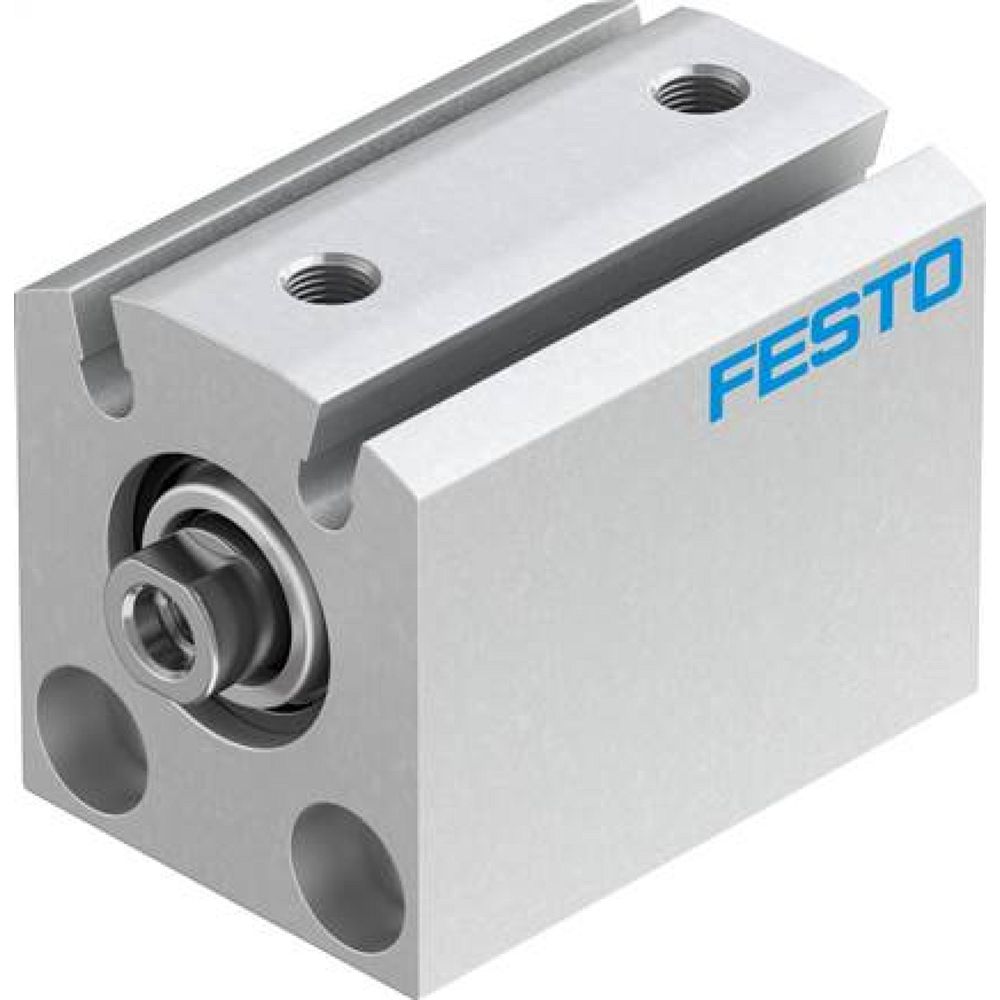

Festo 188109. Short-stroke cylinder ADVC-16-10-I-P-A
€47.04
Excl. 19% VAT , excl. Shipping Cost

Total price

Stroke	25 mm
Piston diameter	80 mm
Spring return force with retracted piston rod	85 N
Based on standard	ISO 6431 Hole pattern VDMA 24562
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Mode of operation	Single-acting Pushing
Design	Piston Piston rod
Position detection	Via proximity switch
Symbol	00991729
Operating pressure	0.1 MPa ... 1 MPa
Operating pressure	1 bar ... 10 bar
Operating pressure	14.5 psi ... 145 psi
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 °C ... 80 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	2899 N
Moving mass	321 g
Product weight	1367 g
Type of mounting	Either: With through-hole With accessories
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy Anodised
Material seals	TPE-U(PU)
Material housing	Wrought aluminium alloy Anodised
Material piston rod	High-alloy steel

More Information
Manufacturer Nr.	AEVC-80-25-A-P-A
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568149093
Weight	1.400000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
