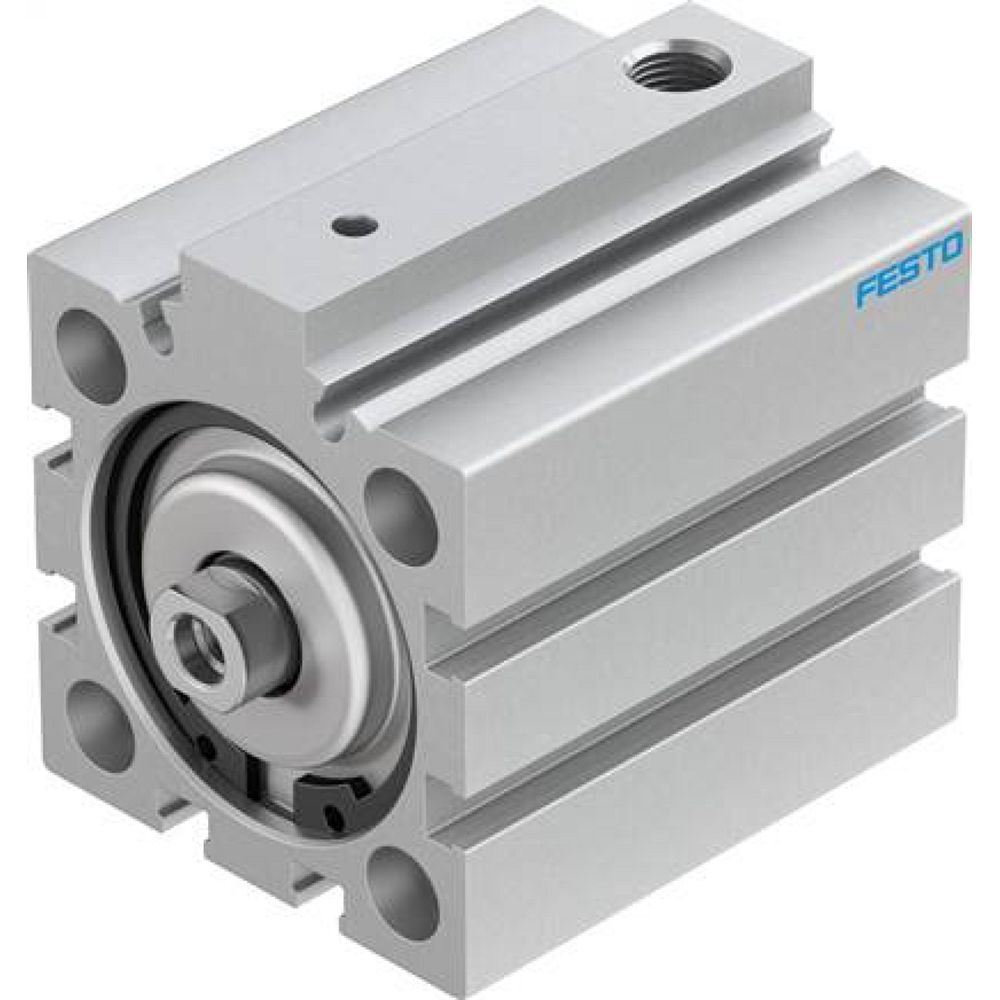

Festo 188225. Short-stroke cylinder AEVC-40-25-I-P-A
€120.68
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-188225
Manufacturer Nr.
AEVC-40-25-I-P-A
Short-stroke cylinder
Frequently Bought Together
-
This Item:
€120.68Excl. 19% VAT , excl. Shipping Cost
-
Festo 188193. Short-stroke cylinder AEVC-32-10-I-P-A
€85.62Excl. 19% VAT , excl. Shipping Cost
-
Festo 530568. Short-stroke cylinder ADVC-12-5-P
€46.98Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 25 mm |
| Piston diameter | 40 mm |
| Spring return force with retracted piston rod | 28 N |
| Based on standard | ISO 6431 Hole pattern VDMA 24562 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Single-acting Pushing |
| Design | Piston Piston rod |
| Position detection | Via proximity switch |
| Symbol | 00991729 |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Operating pressure | 14.5 psi ... 145 psi |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 707 N |
| Moving mass | 83 g |
| Product weight | 367 g |
| Type of mounting | Either: With through-hole With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Anodised |
| Material seals | TPE-U(PU) |
| Material housing | Wrought aluminium alloy Anodised |
| Material piston rod | High-alloy steel |
| Manufacturer Nr. | AEVC-40-25-I-P-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568148362 |
| Weight | 0.380000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
