Festo 188171. Short-stroke cylinder AEVC-25-25-A-P
€55.84
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-188171
Manufacturer Nr.
AEVC-25-25-A-P
Short-stroke cylinder
Frequently Bought Together
-
This Item:
€55.84Excl. 19% VAT , excl. Shipping Cost
-

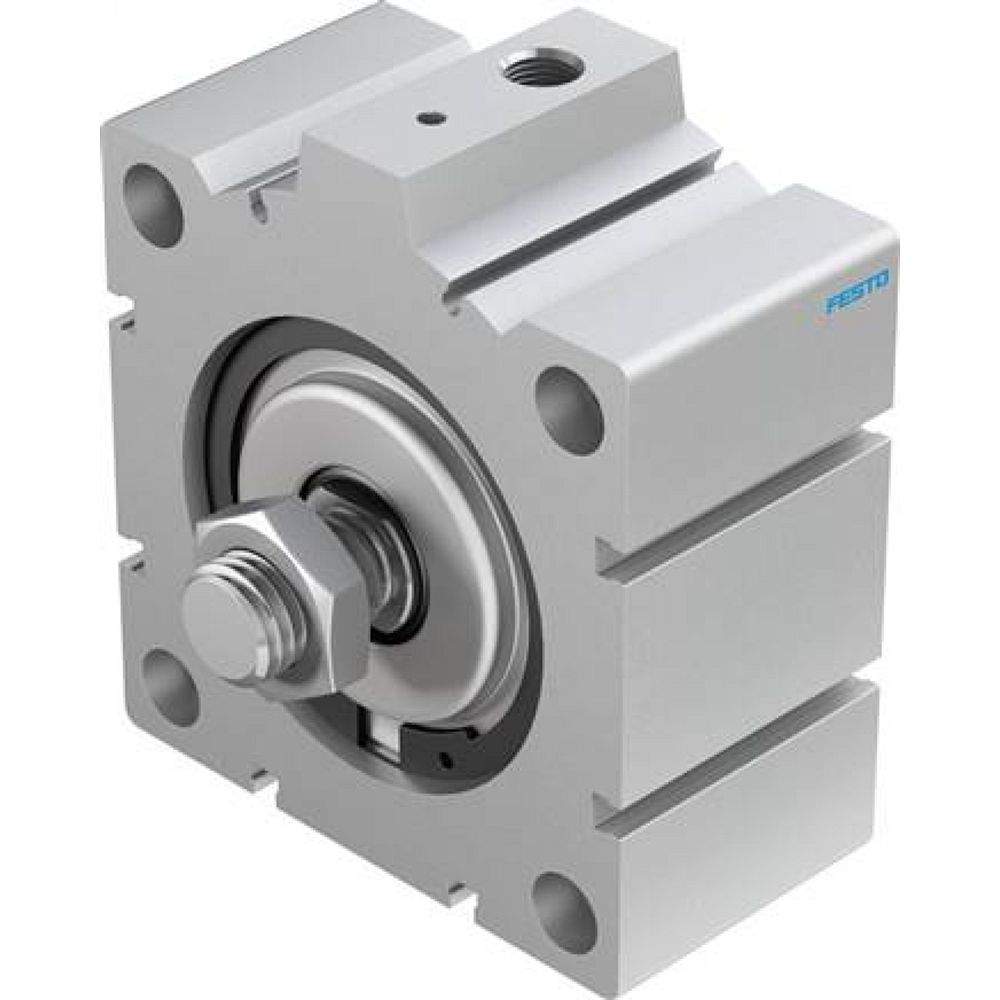

Festo 188330. Short-stroke cylinder AEVC-100-10-A-P
€209.52Excl. 19% VAT , excl. Shipping Cost
-

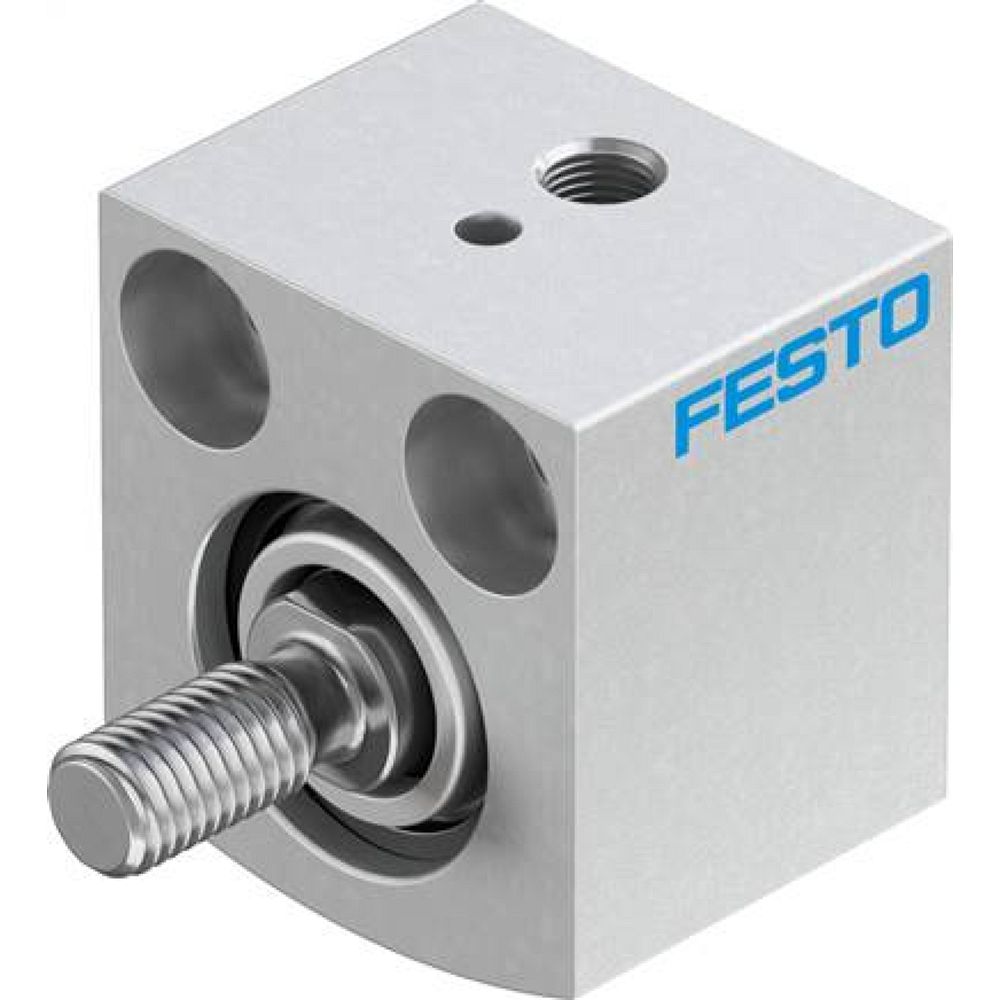

Festo 188105. Short-stroke cylinder AEVC-16-5-A-P
€42.03Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 25 mm |
| Piston diameter | 25 mm |
| Spring return force with retracted piston rod | 15 N |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Mode of operation | Single-acting Pushing |
| Design | Piston Piston rod |
| Position detection | Without |
| Symbol | 00991730 |
| Operating pressure | 0.15 MPa ... 1 MPa |
| Operating pressure | 1.5 bar ... 10 bar |
| Operating pressure | 21.75 psi ... 145 psi |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 268 N |
| Moving mass | 37 g |
| Product weight | 167 g |
| Type of mounting | Either: With through-hole With accessories |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Anodised |
| Material seals | NBR TPE-U(PU) |
| Material housing | Wrought aluminium alloy Anodised |
| Material piston rod | High-alloy steel |
| Manufacturer Nr. | AEVC-25-25-A-P |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568077563 |
| Weight | 0.170000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
