Festo 196387. Round cylinder ESNU-63-50-P-A
€109.08
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-196387
Manufacturer Nr.
ESNU-63-50-P-A
Round cylinder
Frequently Bought Together
-
This Item:
€109.08Excl. 19% VAT , excl. Shipping Cost
-

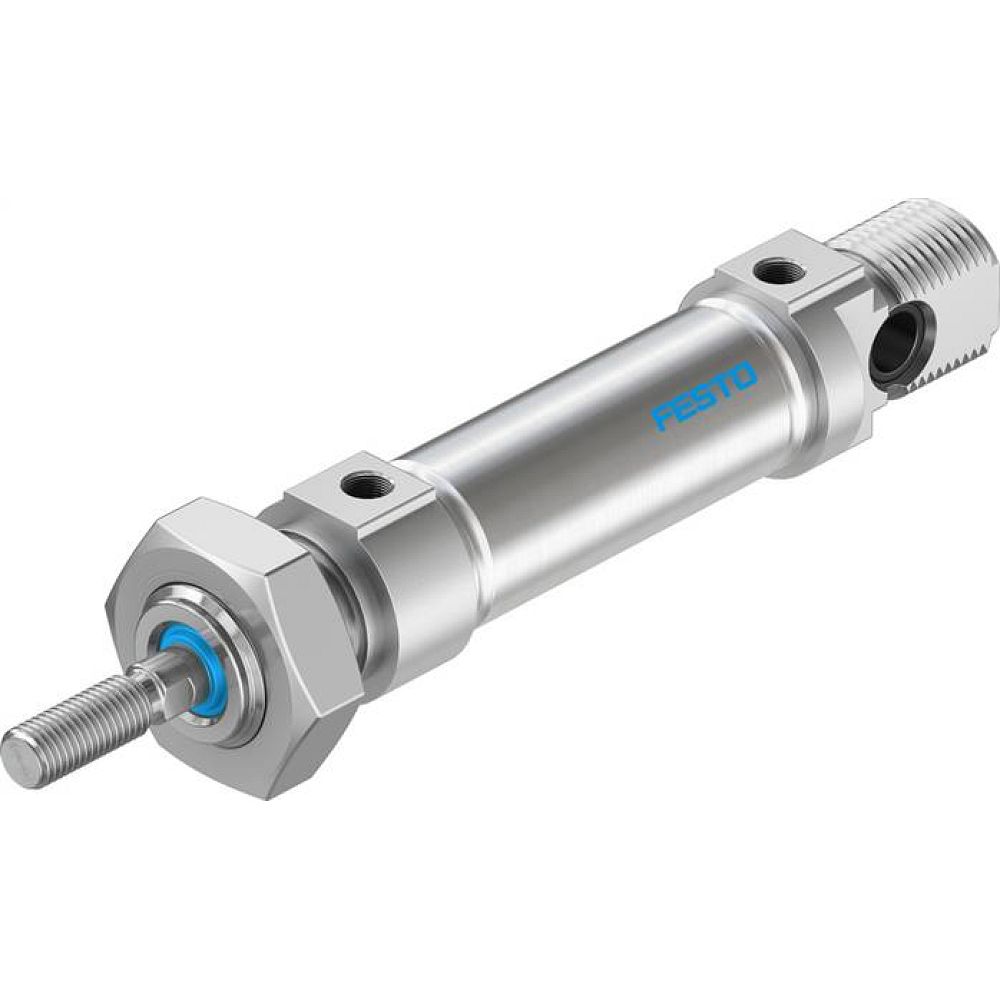

Festo 19198. ISO cylinder DSNU-16-10-P-A
€38.53Excl. 19% VAT , excl. Shipping Cost
-

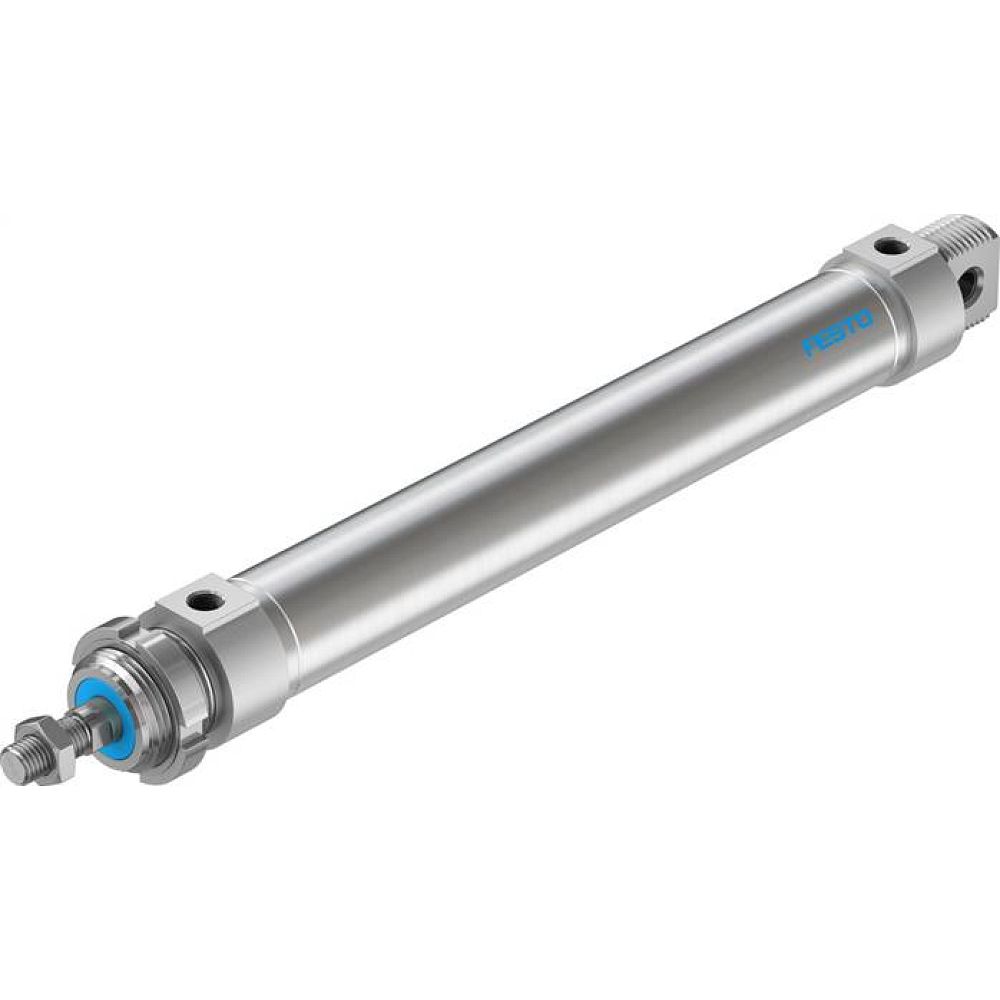

Festo 196027. Round cylinder DSNU-32-200-PPV-A
€67.18Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 50 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991729 |
| Operating pressure | 0.12 MPa ... 1 MPa |
| Operating pressure | 1.2 bar ... 10 bar |
| Mode of operation | Single-acting Pushing |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Spring return force with retracted piston rod | 60 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 60 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1765 N |
| Moving mass | 584 g |
| Moving mass for 0 mm stroke | 459 g |
| Additional moving mass per 10 mm stroke | 25 g |
| Product weight | 1665 g |
| Basic weight for 0 mm stroke | 1445 g |
| Additional weight per 10 mm stroke | 44 g |
| Type of mounting | With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | High-alloy stainless steel |
| Manufacturer Nr. | ESNU-63-50-P-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568159412 |
| Weight | 1.700000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
