Festo 196016. Round cylinder DSNU-63-160-P-A
€102.47
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-196016
Manufacturer Nr.
DSNU-63-160-P-A
Round cylinder
Frequently Bought Together
-
This Item:
€102.47Excl. 19% VAT , excl. Shipping Cost
-

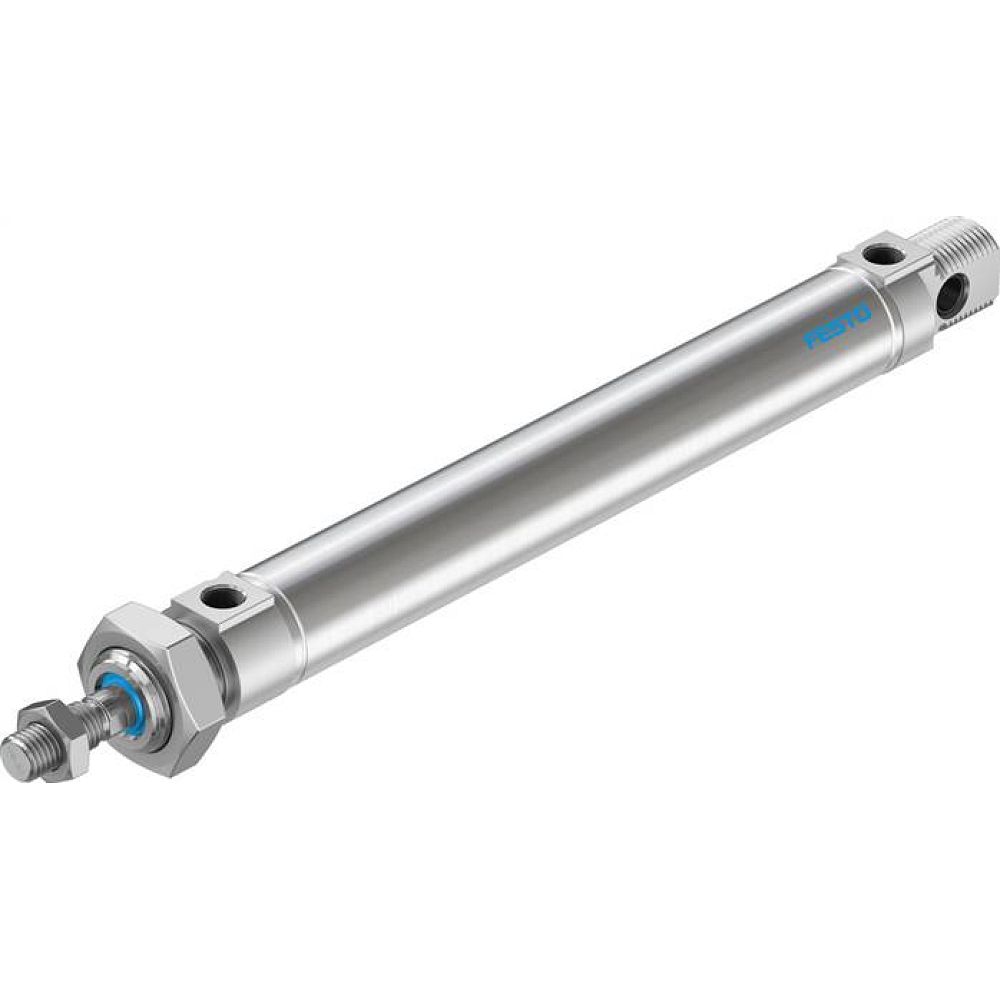

Festo 1908319. ISO cylinder DSNU-25-150-PPV-A
€55.39Excl. 19% VAT , excl. Shipping Cost
-
Festo 1908302. ISO cylinder DSNU-20-60-PPS-A
€48.35Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 160 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Cylinder barrel |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Operating pressure | 0.1 MPa ... 1 MPa |
| Operating pressure | 1 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 1681.9 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1870.3 N |
| Moving mass | 859 g |
| Product weight | 2149 g |
| Type of mounting | With accessories |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | High-alloy stainless steel |
| Manufacturer Nr. | DSNU-63-160-P-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568158675 |
| Weight | 2.100000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Download
