Festo 196015. Round cylinder DSNU-63-125-P-A

Name: Festo 196015. Round cylinder DSNU-63-125-P-A
Brand: Festo
SKU: FES-196015
Price: 100.22 EUR
Availability: InStock

€100.22

Excl. 19% VAT , excl. Shipping Cost

Article

FES-196015

Manufacturer Nr.

DSNU-63-125-P-A

Round cylinder

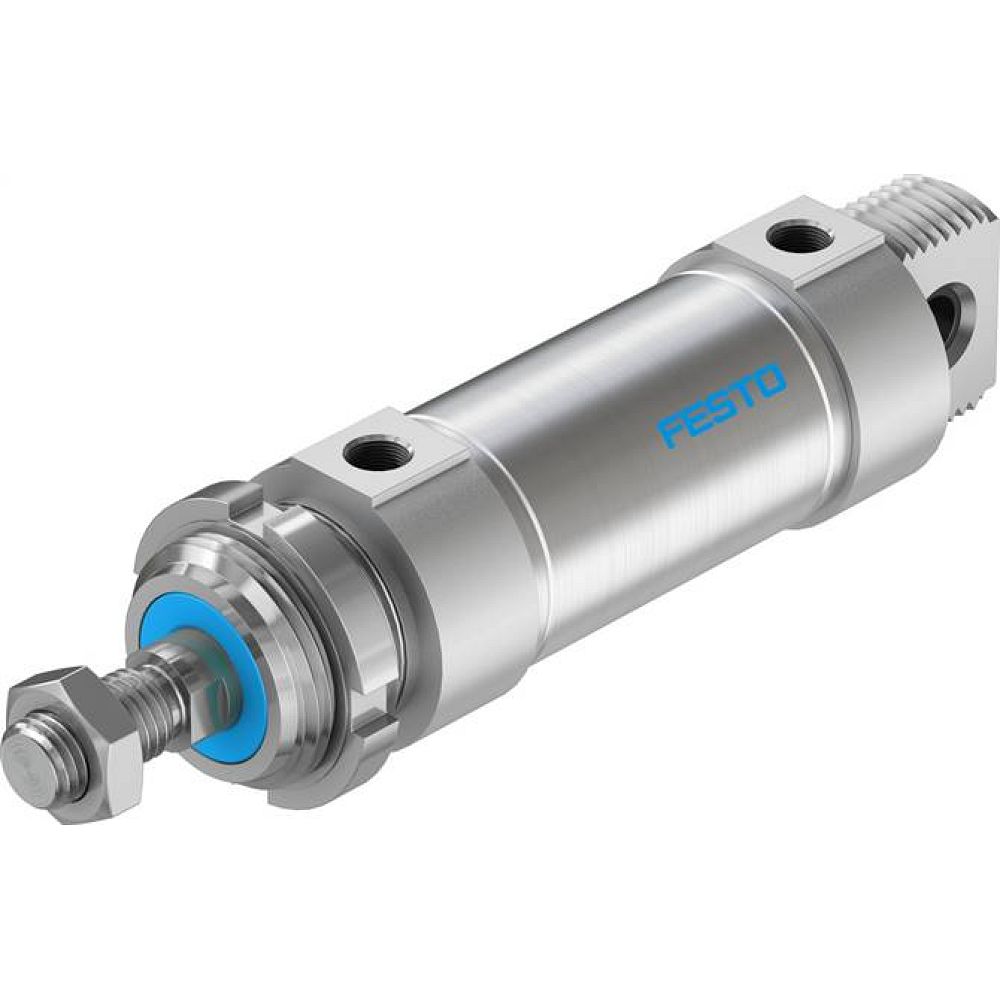

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 196015. Round cylinder DSNU-63-125-P-A
€100.22
Excl. 19% VAT , excl. Shipping Cost
Festo 1908283. ISO cylinder DSNU-20-20-P-A
€42.15
Excl. 19% VAT , excl. Shipping Cost
Festo 559273. ISO cylinder DSNU-20-50-PPS-A
€48.15
Excl. 19% VAT , excl. Shipping Cost

Total price

Stroke	125 mm
Piston diameter	63 mm
Piston rod thread	M16x1.5
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Design	Piston Piston rod Cylinder barrel
Position detection	Via proximity switch
Symbol	00991217
Operating pressure	0.1 MPa ... 1 MPa
Operating pressure	1 bar ... 10 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Ambient temperature	-20 °C ... 80 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	1681.9 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	1870.3 N
Moving mass	772 g
Product weight	1995 g
Type of mounting	With accessories
Pneumatic connection	G3/8
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material seals	NBR TPE-U(PU)
Material piston rod	High-alloy steel
Material cylinder barrel	High-alloy stainless steel

More Information
Manufacturer Nr.	DSNU-63-125-P-A
Manufacturer	Festo
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
EAN	4052568158668
Weight	2.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
