Festo 536295. Compact cylinder ADN-40-40-A-P-A
€73.37
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-536295
Manufacturer Nr.
ADN-40-40-A-P-A
Compact cylinder
Frequently Bought Together
-
This Item:
€73.37Excl. 19% VAT , excl. Shipping Cost
-

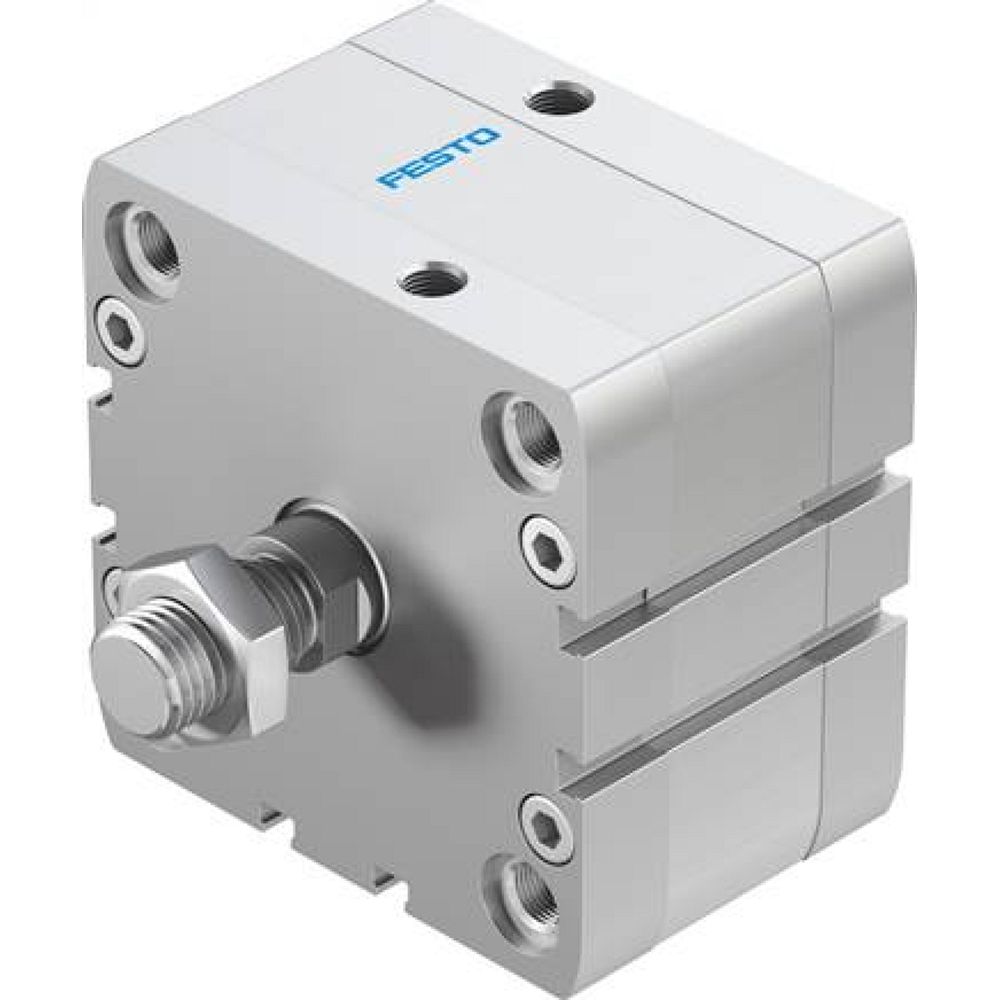

Festo 572727. Compact cylinder ADN-80-10-A-PPS-A
€131.54Excl. 19% VAT , excl. Shipping Cost
-

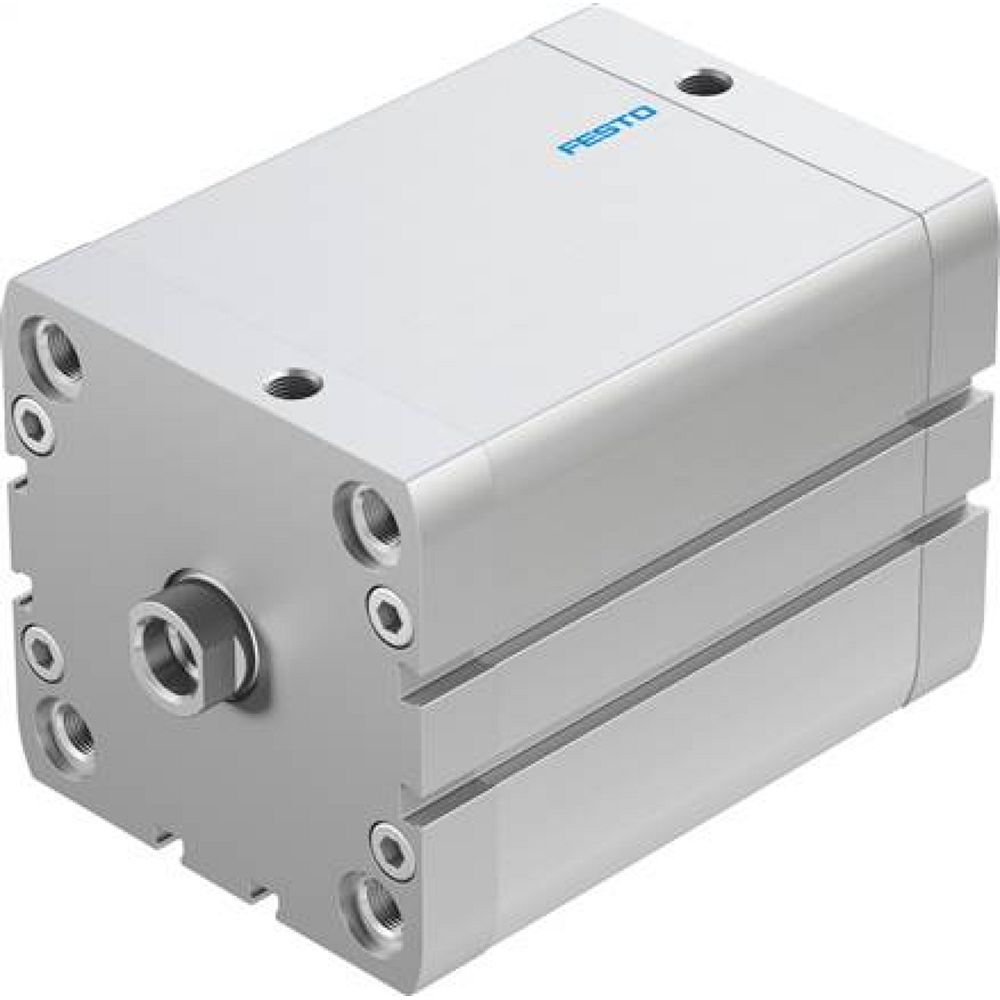

Festo 572726. Compact cylinder ADN-80-80-I-PPS-A
€161.68Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 40 mm |
| Piston diameter | 40 mm |
| Piston rod thread | M10x1.25 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Male thread |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Operating pressure | 0.06 MPa ... 1 MPa |
| Operating pressure | 0.6 bar ... 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in end positions | 0.7 J |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 686 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 754 N |
| Moving mass for 0 mm stroke | 80 g |
| Additional moving mass per 10 mm stroke | 9 g |
| Basic weight for 0 mm stroke | 346 g |
| Additional weight per 10 mm stroke | 37 g |
| Type of mounting | Either: With through-hole Via female thread With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material collar screws | Steel |
| Material cover | Anodised wrought aluminium alloy |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Manufacturer Nr. | ADN-40-40-A-P-A |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568171032 |
| Weight | 0.490000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
