Aventics Pressure sensor, Series PE5 R412010771 PE5-A1-G014-000-060-M12

Name: Aventics Pressure sensor, Series PE5 R412010771 PE5-A1-G014-000-060-M12
Brand: Aventics
SKU: AVE-R412010771
Price: 171.86 EUR
Availability: InStock

€171.86

Excl. 19% VAT , excl. Shipping Cost

Article

AVE-R412010771

Manufacturer Nr.

R412010771

PE5-A1-G014-000-060-M12

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Aventics Pressure sensor, Series PE5 R412010771 PE5-A1-G014-000-060-M12
€171.86
Excl. 19% VAT , excl. Shipping Cost
Aventics Valve plug connector, series CON-VP 8946201612 CON-VP-F_C-2+E-5000-PVC-OW-3
€35.86
Excl. 19% VAT , excl. Shipping Cost

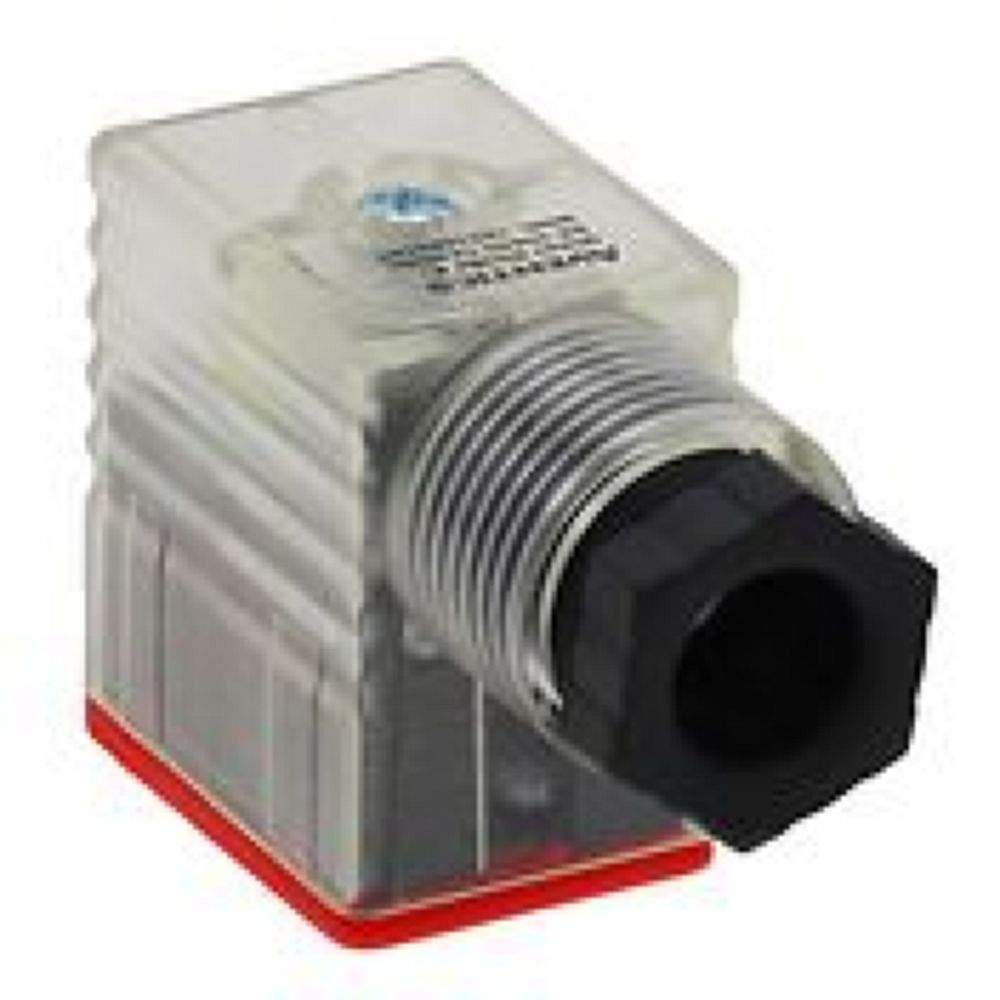

Aventics Valve plug connector, series CON-VP 1834484107 CON-VP-F_BI-2+E-YE-Z-SCREW
€16.59
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Downloads

Operating voltage DC, max.	30 V DC
Operating pressure min	0 bar
Operating pressure max	6 bar
Certificates	Free of substances that impair surface wetting in the coating process, RoHS, CE declaration of conformity, Conforms with REACH, cULus
Compressed air connection type	Internal thread
Compressed air connection	G 1/4
Min. ambient temperature	0 °C
Max. ambient temperature	60 °C
Min. medium temperature	0 °C
Max. medium temperature	60 °C
Medium	Compressed air (max. 40 μm)
Oil content of compressed air max.	40 mg/m³
Measurement	Relative pressure
Display	LCD display, 4 digits, Color setting: green or red
Units displayed	MPa, kPa, bar, inHg, psi
Switching logic	NO/NC (adjustable)
Protection against overpressure	15 bar
Shock resistance max.	30 g
Vibration resistance	5 g (10 - 150 Hz)
Precision (% of full scale value)	±1.5% in temperature range of 10 - 30°C, ± 2 % including temperature drift
Repeatability (% of full scale value)	± 0,2 %
Switching time	< 5 ms
Switching point	adjustable 0 ... 100%
Resetting point	adjustable 0 ... 100%
Hysteresis	adjustable

Simplified navigation in accordance with VDMA
Protection class increased to IP65 and IP67
Contains zero point offset function
PNP, NPN, and push-pull are freely selectable
Option to switch between current and voltage
UL approval and PWIS-free
Compliant with CE, RoHS and Reach

More Information
Manufacturer Nr.	R412010771
Manufacturer	Aventics
GPSR manufacturer information	AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com
Weight	0.105000
HS-Code	85365080
Article authenticity	Original product
Condition of article	New
