Aventics Pressure sensor, Series PE6 R412007885 PE6-P2-L HYST. EINST
€98.44
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-R412007885
Manufacturer Nr.
R412007885
PE6-P2-L HYST. EINST
Frequently Bought Together
-
This Item:
€98.44Excl. 19% VAT , excl. Shipping Cost
-
Aventics Pressure sensor, Series PE5 R412010776 PE5-IO-DA04-000-060-M12
€178.40Excl. 19% VAT , excl. Shipping Cost
-
Aventics Sensor mounting, Series CB1 1827020297 CB1-MNI-012-012-ST6
€11.65Excl. 19% VAT , excl. Shipping Cost
Total price
| Function | 2 x PNP |
| Type | with sensor element based on piezo resistance |
| Mounting orientation | L (horizontal) |
| Output signal digital | 2 x PNP |
| Precision (% of full scale value) | ± 3 % |
| Operating pressure min | 0 bar |
| Operating pressure max | 10 bar |
| Compressed air connection type | Flange with O-ring |
| Compressed air connection | Ø 1,2x1 |
| Working pressure min. | 0 bar |
| Working pressure max | 10 bar |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 60 °C |
| Min. medium temperature | 0 °C |
| Max. medium temperature | 50 °C |
| Medium | Compressed air |
| Oil content of compressed air max. | 1 mg/m³ |
| Measurement | Relative pressure |
| Display | LED |
| Switching logic | NO (make contact) |
| Operating pressure display | 2 LED |
| Protection against overpressure | 15 bar |
| Shock resistance max. | 10 g |
| Vibration resistance | 10 - 55 Hz, 0,1 mm |
| Repeatability (% of full scale value) | ± 1 % |
- Two housing options available (vertical or horizontal)
- Electronic sensor with high switching precision
- Easy and quick adjustment of switching points with tech-in button
- Two switch outputs, 2x PNP make contacts (NO)
- Pressure sensor with fixed or adjustable hysteresis
- Flexible assembly using additional accessories
| Manufacturer Nr. | R412007885 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 0.055000 |
| HS-Code | 85365080 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

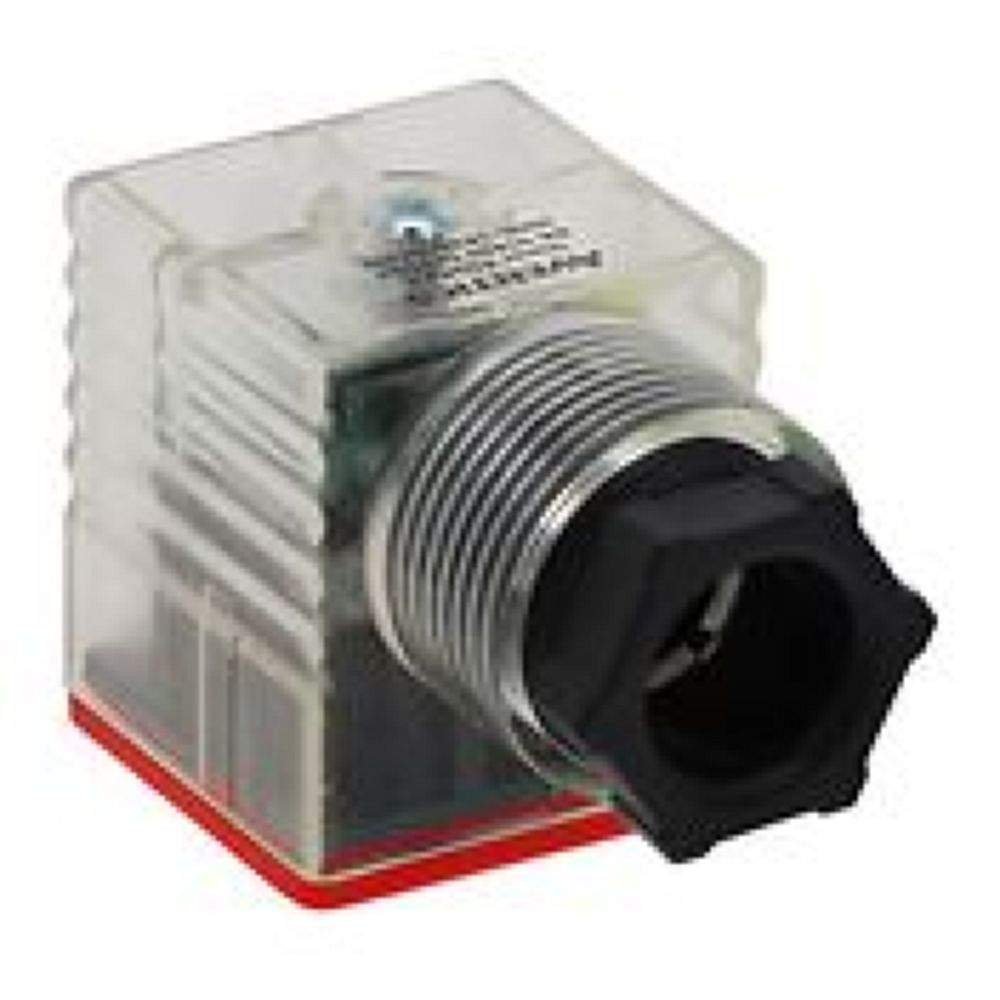

Aventics Valve plug connector, series CON-VP 1834484101 CON-VP-F_A-2+E-YE-Z-SCREW
€16.59
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Round plug connector, Series CON-RD 8941054424 CON-RD-FA-M12-4-SCREW
€34.73
Excl. 19% VAT ,
excl. Shipping Cost

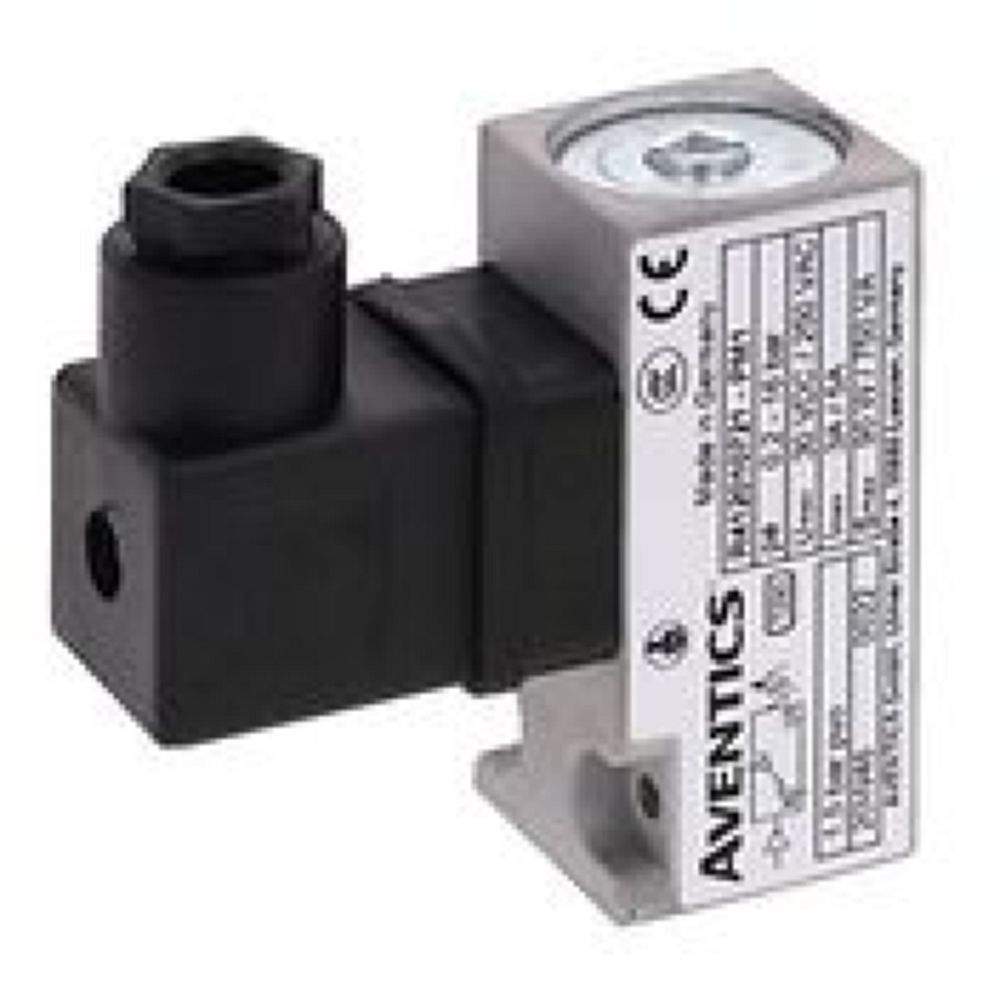

Aventics Pressure Switches, Series PM1 R412010718 PM1-M3-F001-002-160-DINA-CON
€118.55
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Round plug connector, Series CON-RD 8942051612 CON-RD-MS-M12-5-SCREW
€39.37
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Valve plug connector, series CON-VP 8946201612 CON-VP-F_C-2+E-5000-PVC-OW-3
€35.86
Excl. 19% VAT ,
excl. Shipping Cost
.jpg?width=240&height=300&store=en&image-type=small_image)

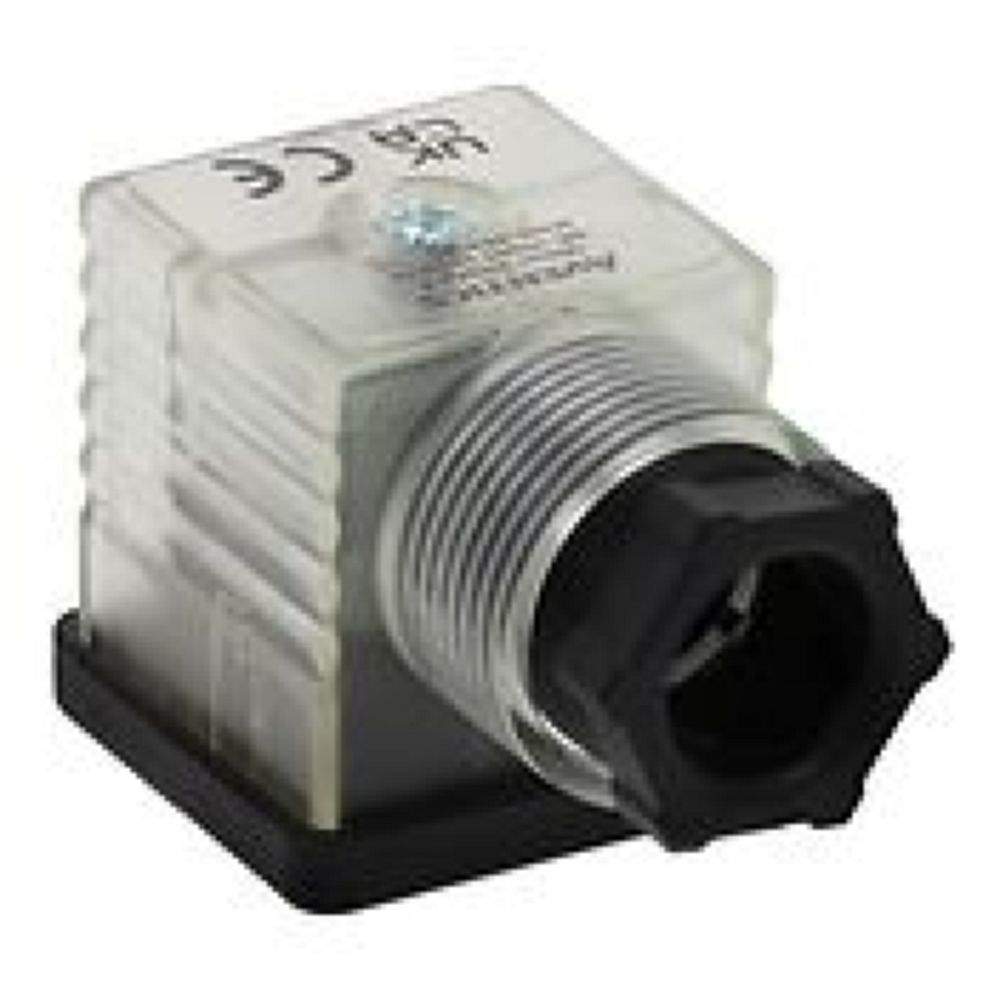

Aventics Valve plug connector, series CON-VP 8941016112 CON-VP-F_A-2+E-GN-V-SCREW
