Aventics 5/2-directional valve, Series CD07 5776605280 CD07-5/2XX-SR-230AC-I-NAMU
€162.10
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-5776605280
Manufacturer Nr.
5776605280
CD07-5/2XX-SR-230AC-I-NAMU
Frequently Bought Together
-
This Item:
€162.10Excl. 19% VAT , excl. Shipping Cost
-

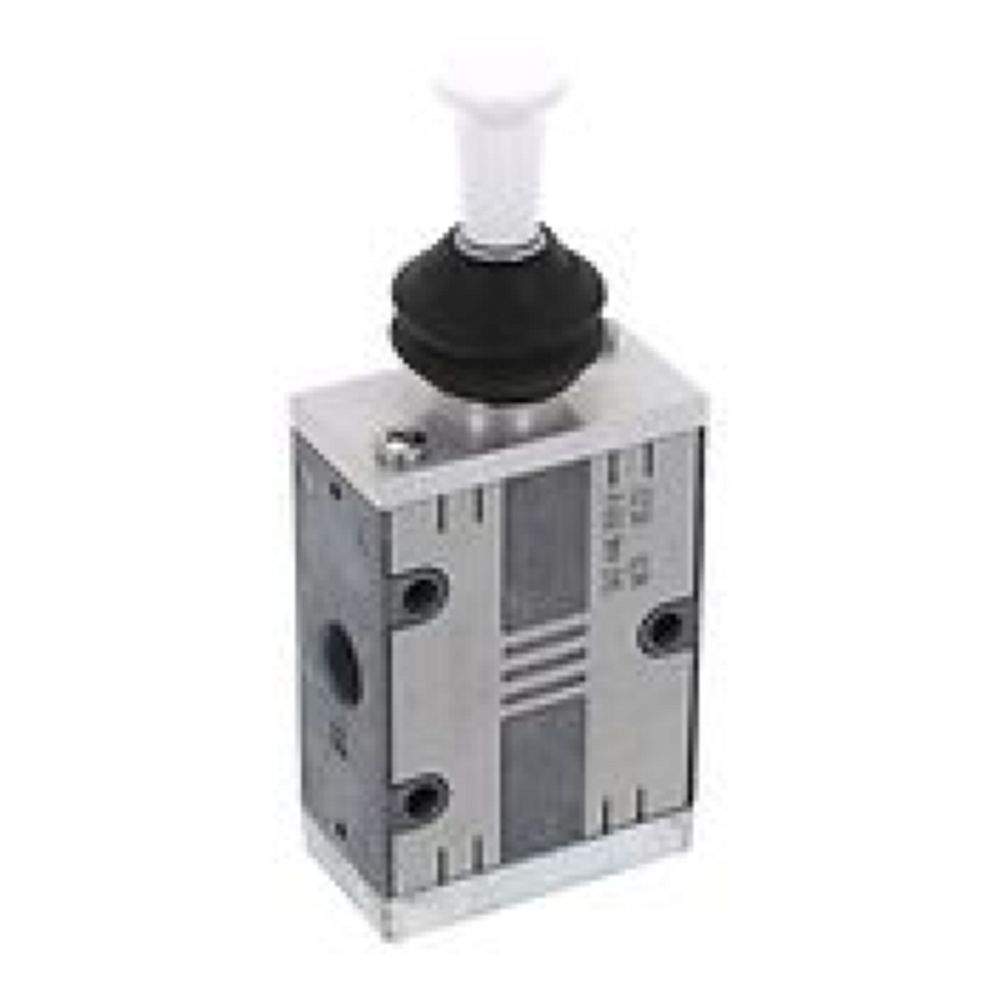

Aventics 3/2-directional valve, Series CD07 5634469310 CD07-3/2NC-PN-BU-M014-M014-S
€402.81Excl. 19% VAT , excl. Shipping Cost
-
Aventics 3/2-directional valve, Series CD07 5772085220 CD07-3/2NC-SR-024AC-E-G014
€141.74Excl. 19% VAT , excl. Shipping Cost
Total price
| Activation | Electrically |
| Frame size | CD07 |
| Switching principle | 5/2, with spring return |
| Actuating control | Single Solenoid |
| Manual override | with detent |
| Pilot | Internal |
| Nominal flow Qn | 1200 l/min |
| Compressed air connection | G 1/4 |
| Working pressure min. | 3 bar |
| Working pressure max | 10 bar |
| Operational↩voltage | 230 V AC |
| Electrical connection type | Plug |
| Electrical connection size | EN 175301-803, form A |
| Connector standard | EN 175301-803:2006 |
| Protection class with connection | IP65 |
| Reverse polarity protection | Protected against polarity reversal |
| Pilot valve width | 30 mm |
| Compatibility index | 13, 14 |
| Duty cycle | 100 % |
| Typ. switch-on time | 25 ms |
| Typ. switch-off time | 45 ms |
| Sealing principle | soft seal |
| Standards | NAMUR |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 50 °C |
- Durable design
- Assembly on base plate
- Suitable for extreme ambient temperatures
- Resistant to voltage fluctuations
- ATEX version available
| Manufacturer Nr. | 5776605280 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 0.650000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Aventics 5/3-directional valve, Series CD07 R412011157 CD07-5/3CC-DO-NONE-I-NAMU
€216.38
Excl. 19% VAT ,
excl. Shipping Cost

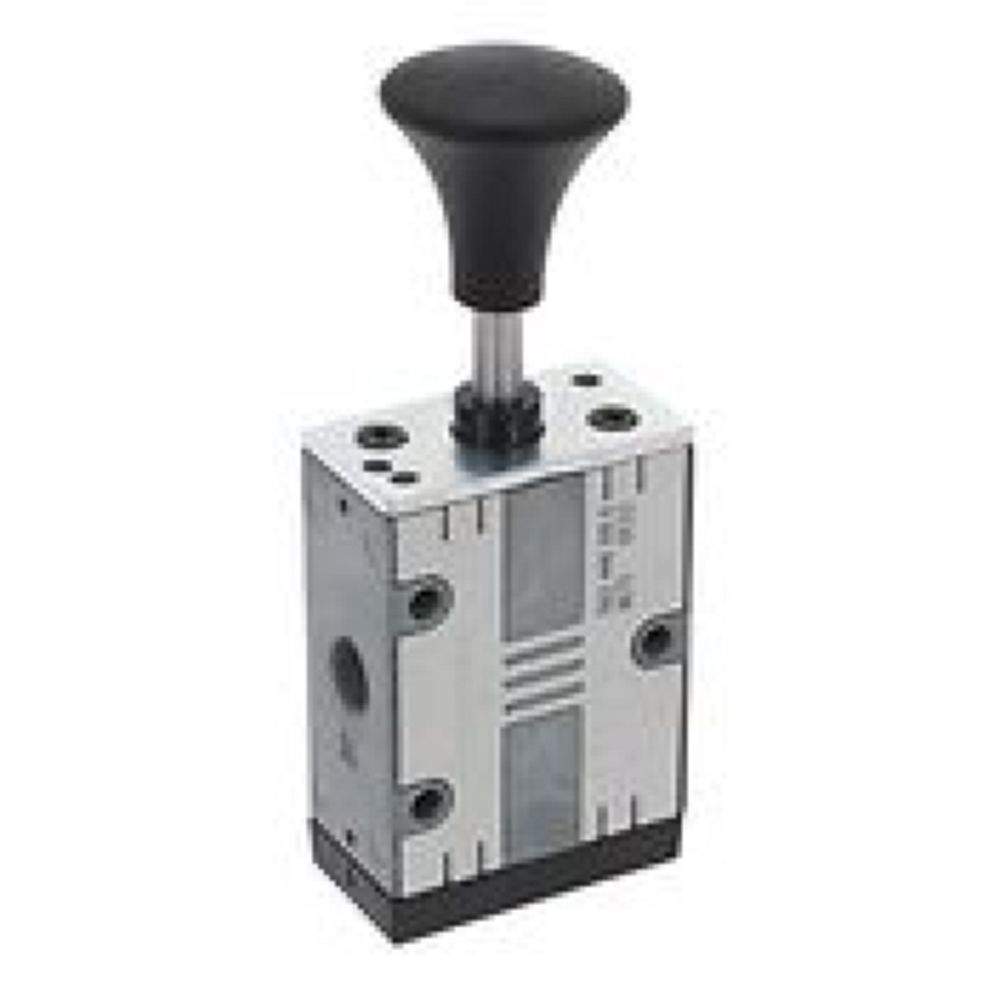

Aventics 3/2-directional valve, Series CD07 5634461000 CD07-3/2NC-PN-BU-M014-M014-S
€116.23
Excl. 19% VAT ,
excl. Shipping Cost

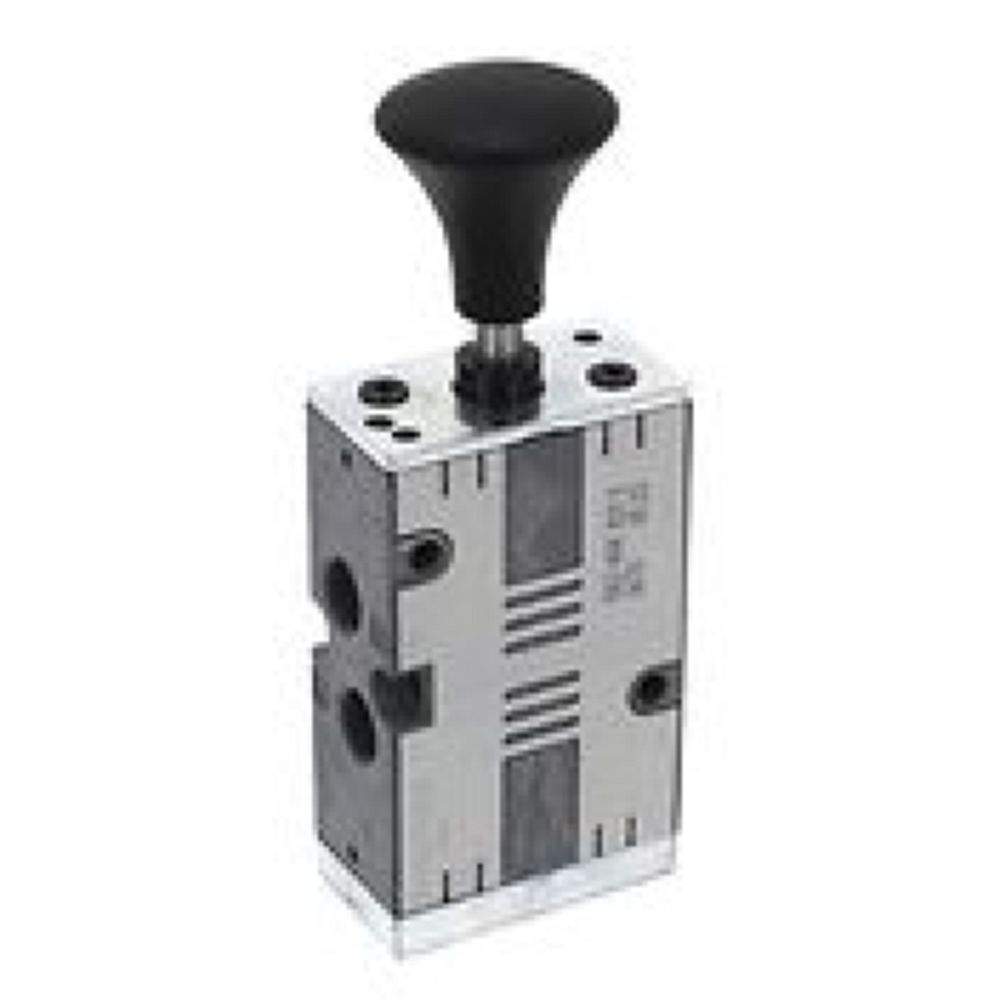

Aventics 5/2-directional valve, Series CD07 5634669200 CD07-5/2XX-PN-BU-G014-G014-S
