Aventics Rack-and-pinion gears, Series TRR 0822931205 TRR-DA-040-0180
€711.39
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-0822931205
Manufacturer Nr.
0822931205
TRR-DA-040-0180
Frequently Bought Together
-
This Item:
€711.39Excl. 19% VAT , excl. Shipping Cost
-
Aventics Rotary Compact Module, Series RCM-SH R412000391 RCM-20-090-SH-AP-00
€2,274.48Excl. 19% VAT , excl. Shipping Cost
-
Aventics Rotary Compact Module, Series RCM-SE R412000363 RCM-16-090-SE-00-00
€977.12Excl. 19% VAT , excl. Shipping Cost
Total price
| Diameter | 40 mm |
| Compressed air connection | G 1/4 |
| Magnetic piston | with magnetic piston |
| Rotary compact module version | double piston with rack |
| Frame size | TRR-40 |
| Axis diameter | 17 mm |
| Theoretical torque at | 6,3 bar |
| Rotation angle tolerance | 0° / +3° |
| Direction of rotation | counterclockwise |
| Max. play (radial) | 1.6 ° |
| Theoretical torque | 7 Nm |
| Cushioning | Pneumatically |
| Cushioning | adjustable |
| Cushioning angle | 69 ° |
| Stroke/10° angle of rotation | 2.2 mm |
| angle of rotation min. | 0 ° |
| angle of rotation max. | 180 ° |
| Tolerance in 0° position not under pressure min. | -3 ° |
| Tolerance in 0° position not under pressure max. | 3 ° |
| Working pressure min. | 2 bar |
| Working pressure max | 10 bar |
| Min. ambient temperature | -20 °C |
| Max. ambient temperature | 80 °C |
| Min. medium temperature | -20 °C |
| Max. medium temperature | 80 °C |
- Torque 5 ... 111 Nm
- Angle of rotation 90 ... 360°
- double piston with rack
- Adjustable pneumatic cushioning
- Optionally with adjustable angle of rotation
| Manufacturer Nr. | 0822931205 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 1.800000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Aventics Rotary Compact Module, Series RCM-SH R412000376 RCM-25-180-SH-00-00
€2,218.76
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Rotary Compact Module, Series RCM-SE R412000357 RCM-06-090-SE-00-00
€538.85
Excl. 19% VAT ,
excl. Shipping Cost
Aventics Rotary wing drives, Series RAK 2705062800 RAK-06S-0280
€99,999.00
Excl. 19% VAT ,
excl. Shipping Cost

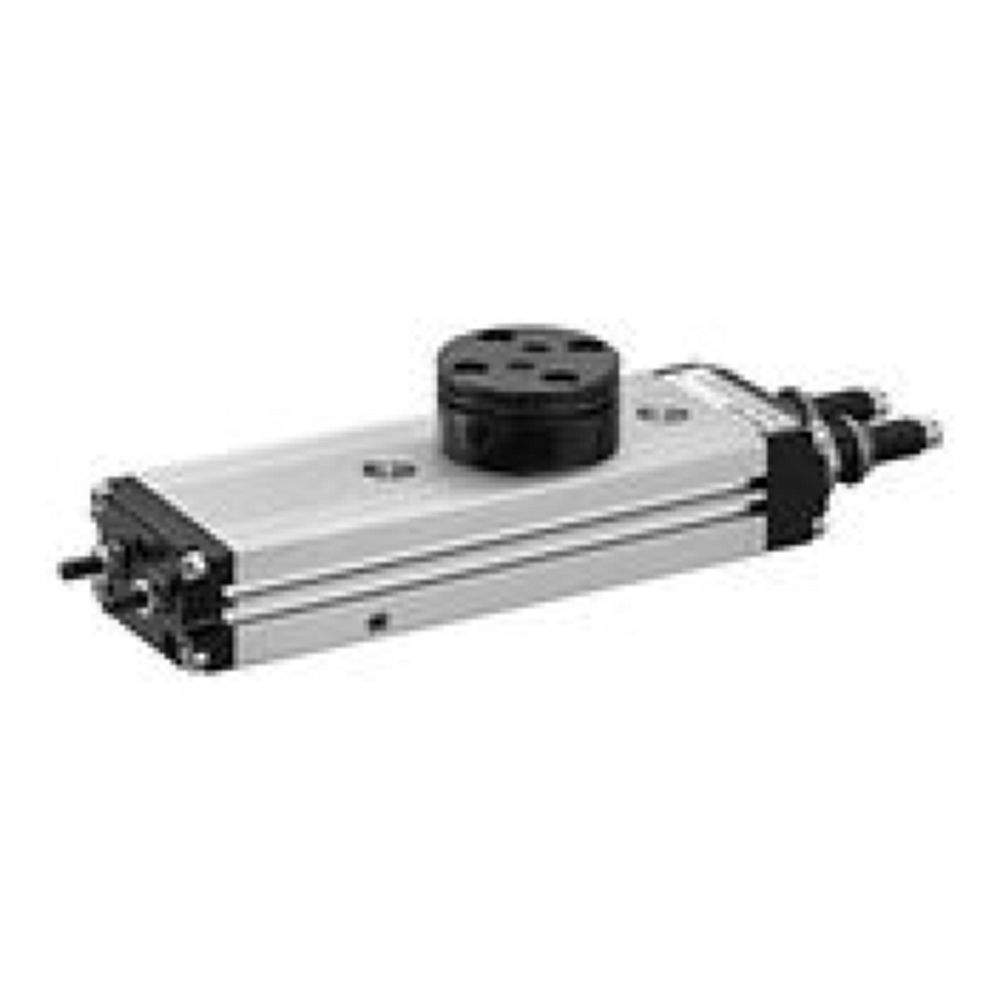

Aventics Rotary Compact Module, Series RCM-SH R412000408 RCM-16-180-SH-AP-IP
