Airtec ZDMK 20/400. ISO 6432 cylinders, double acting, piston 20 mm, stroke 400 mm
€81.53
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-ZDMK-20/400
Manufacturer Nr.
ZDMK 20/400
ISO 6432 cylinders, double acting, piston 20 mm, stroke 400 mm
Frequently Bought Together
-
This Item:
€81.53Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDMK 16/80. ISO 6432 cylinders, double acting, piston 16 mm, stroke 80 mm
€47.22Excl. 19% VAT , excl. Shipping Cost
-

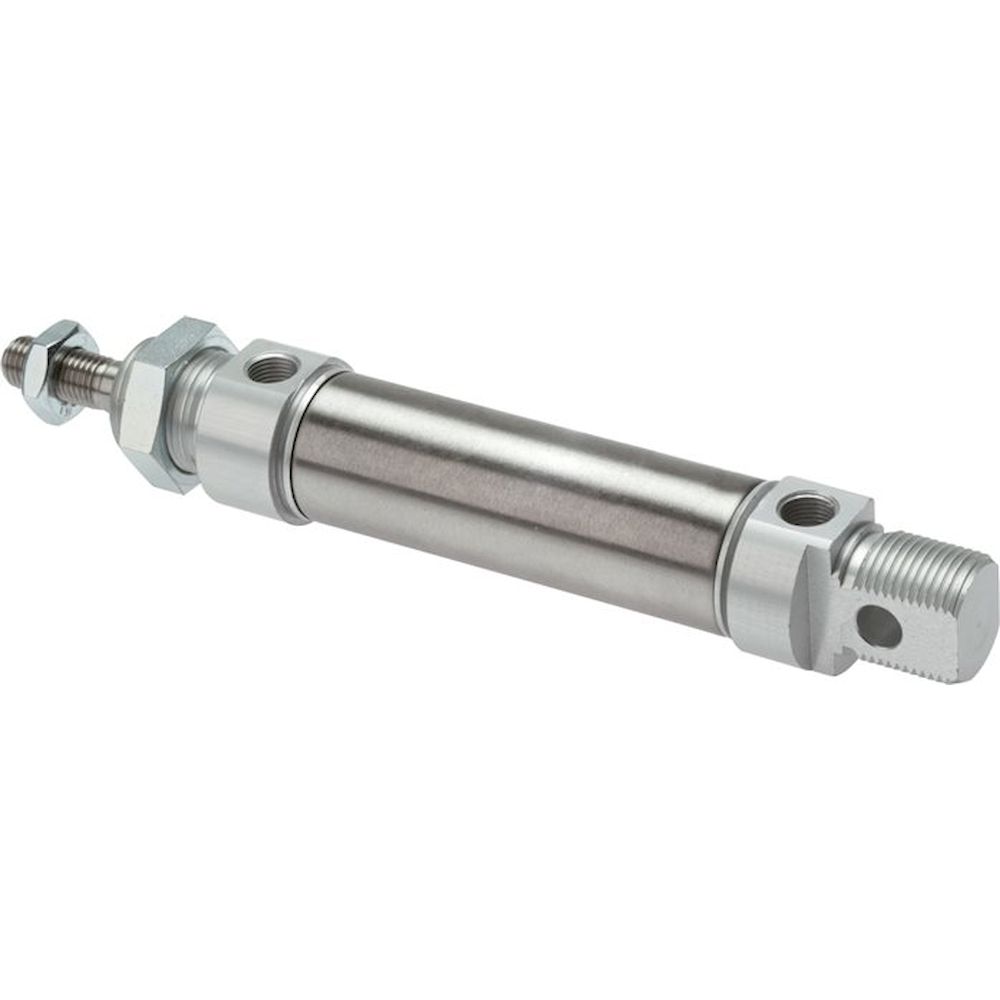

Airtec ZDMO 25/320. ISO 6432 cylinders, double acting, piston 25 mm, stroke 320 mm
€133.34Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305 seal: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V, ATEX approval Ex II 2GD c T5 T100° -20°C <=Ta<= 80°C -X
| Piston diameter [mm] | 20 |
| Stroke [mm] | 400 |
| Version | continuous piston rod |
| A (piston rod thread) | M 8 |
| B (fastening thread) | M 22x1,5 |
| G (compressed air port) | G 1/8" |
| A1 [mm] | 8 |
| C [mm] | 27 |
| D [mm] | 16 |
| E [mm] | 8 |
| F [mm] | 20 |
| G [mm] | 95 |
| K [mm] | 24 |
| L [mm] | 20 |
| M [mm] | 131 |
| N [mm] | 12 |
| P [mm] | 67 |
| CH [mm] | 7 |
| Manufacturer Nr. | ZDMK 20/400 |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571812836 |
| Weight | 1.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
