EMC ZDM 16/80 E. ISO 6432 cylinders, double acting, piston 16 mm, stroke 80 mm
€24.17
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-ZDM-16/80-E
Manufacturer Nr.
ZDM 16/80 E
ISO 6432 cylinders, double acting, piston 16 mm, stroke 80 mm
Frequently Bought Together
-
This Item:
€24.17Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDM 10/50. ISO 6432 cylinders, double acting, piston 10 mm, stroke 50 mm
€29.38Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDMO 16/50. ISO 6432 cylinders, double acting, piston 16 mm, stroke 50 mm
€60.76Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
| Piston diameter [mm] | 16 |
| Stroke [mm] | 80 |
| Version | Standard |
| A (piston rod thread) | M 6 |
| B (fastening thread) | M 16x1,5 |
| G (compressed air port) | M 5 |
| A1 [mm] | 6 |
| C [mm] | 21,8 |
| D [mm] | 12 |
| E [mm] | 6 |
| F [mm] | 16 |
| G [mm] | 82 |
| K [mm] | 22 |
| L [mm] | 17 |
| M [mm] | 111 |
| N [mm] | 9 |
| P [mm] | 56 |
| CH [mm] | 5 |
| Manufacturer Nr. | ZDM 16/80 E |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571930523 |
| Weight | 15.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Airtec ZDMK 16/40. ISO 6432 cylinders, double acting, piston 16 mm, stroke 40 mm
€45.53
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDM 12/80. ISO 6432 cylinders, double acting, piston 12 mm, stroke 80 mm
€30.32
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDPM 20/65. ISO 6432 cylinders, double acting, piston 20 mm, stroke 65 mm
€52.47
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMK 25/500. ISO 6432 cylinders, double acting, piston 25 mm, stroke 500 mm
€80.15
Excl. 19% VAT ,
excl. Shipping Cost
EMC ZDM 25/250 E. ISO 6432 cylinders, double acting, piston 25 mm, stroke 250 mm
€35.15
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMK 25/250. ISO 6432 cylinders, double acting, piston 25 mm, stroke 250 mm
€75.72
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDPMK 16/160. ISO 6432 cylinders, double acting, piston 16 mm, stroke 160 mm
€59.96
Excl. 19% VAT ,
excl. Shipping Cost

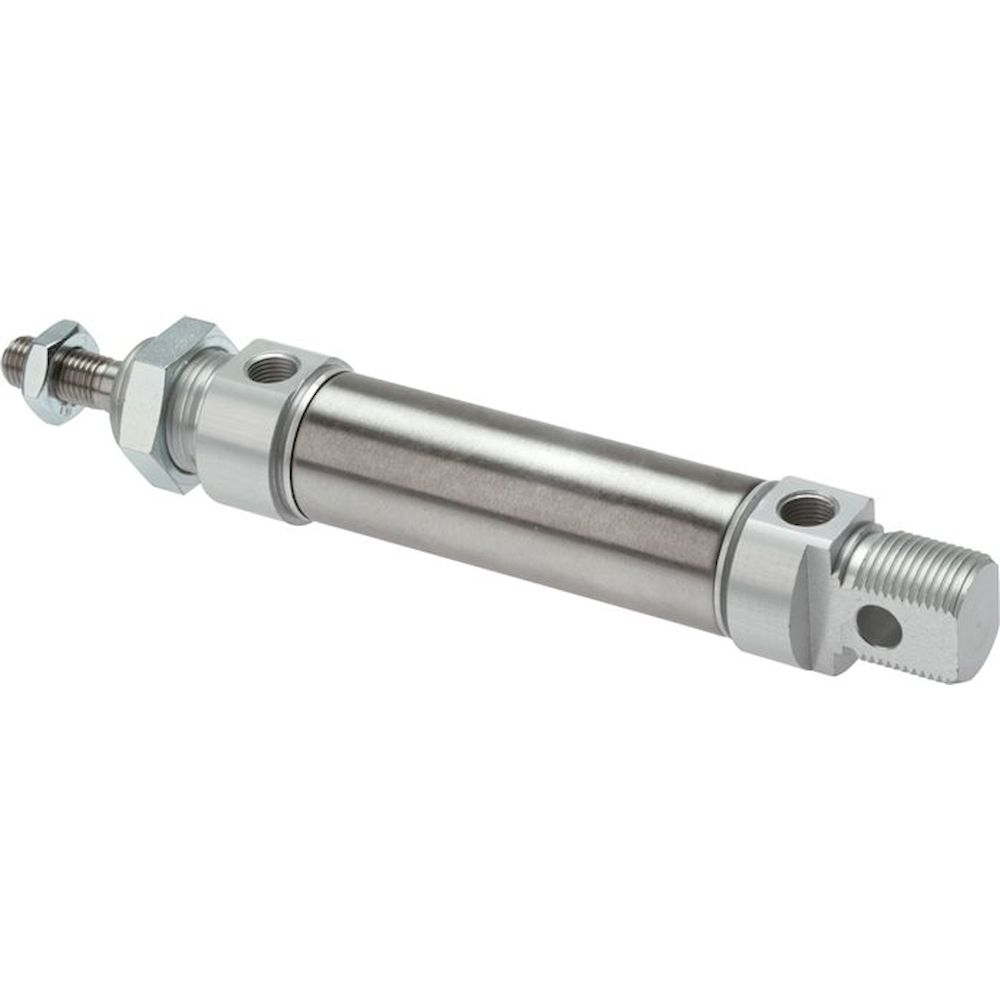

Airtec ZDM 16/550. ISO 6432 cylinders, double acting, piston 16 mm, stroke 550 mm
