Airtec ZDM 16/160 ES. ISO 6432 cylinders, stainless steel, piston 16 mm, stroke 160 mm
€78.10
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-ZDM-16/160-ES
Manufacturer Nr.
ZDM 16/160 ES
ISO 6432 cylinders, stainless steel, piston 16 mm, stroke 160 mm
Frequently Bought Together
-
This Item:
€78.10Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDMK 25/25 ES. ISO 6432 cylinders, stainless steel, piston 25 mm, stroke 25 mm
€109.36Excl. 19% VAT , excl. Shipping Cost
-
Airtec ZDMK 25/500 ES. ISO 6432 cylinders, stainless steel, piston 25 mm, stroke 500 mm
€192.87Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
C in combination with mounting E1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
Head and foot: 1.4301, cylinder tube: 1.4301, piston rod: 1.4436, seals: NBR / PUR
Temperature range:
-20°C to +80°C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
C in combination with mounting E1
Optional:
FKM seals (temperature range: -20°C to max. +150°C, without magnetic piston) -V
| Piston diameter [mm] | 16 |
| Stroke [mm] | 160 |
| Version | Standard |
| A (piston rod thread) | M 6 |
| B (fastening thread) | M 16x1,5 |
| G (compressed air port) | M 5 |
| A1 [mm] | 6 |
| C [mm] | 19 |
| D [mm] | 12 |
| E [mm] | 6 |
| F [mm] | 16 |
| G [mm] | 82 |
| K [mm] | 22 |
| L [mm] | 18 |
| M [mm] | 109 |
| N [mm] | 9 |
| P [mm] | 53 |
| CH [mm] | 5 |
| Manufacturer Nr. | ZDM 16/160 ES |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571811402 |
| Weight | 22.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Airtec ZDMK 16/125 ES. ISO 6432 cylinders, stainless steel, piston 16 mm, stroke 125 mm
€94.04
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMK 16/200 ES. ISO 6432 cylinders, stainless steel, piston 16 mm, stroke 200 mm
€100.72
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMK 20/200 ES. ISO 6432 cylinders, stainless steel, piston 20 mm, stroke 200 mm
€124.85
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMK 20/250 ES. ISO 6432 cylinders, stainless steel, piston 20 mm, stroke 250 mm
€134.45
Excl. 19% VAT ,
excl. Shipping Cost
Airtec ZDMK 20/50 ES. ISO 6432 cylinders, stainless steel, piston 20 mm, stroke 50 mm
€101.94
Excl. 19% VAT ,
excl. Shipping Cost

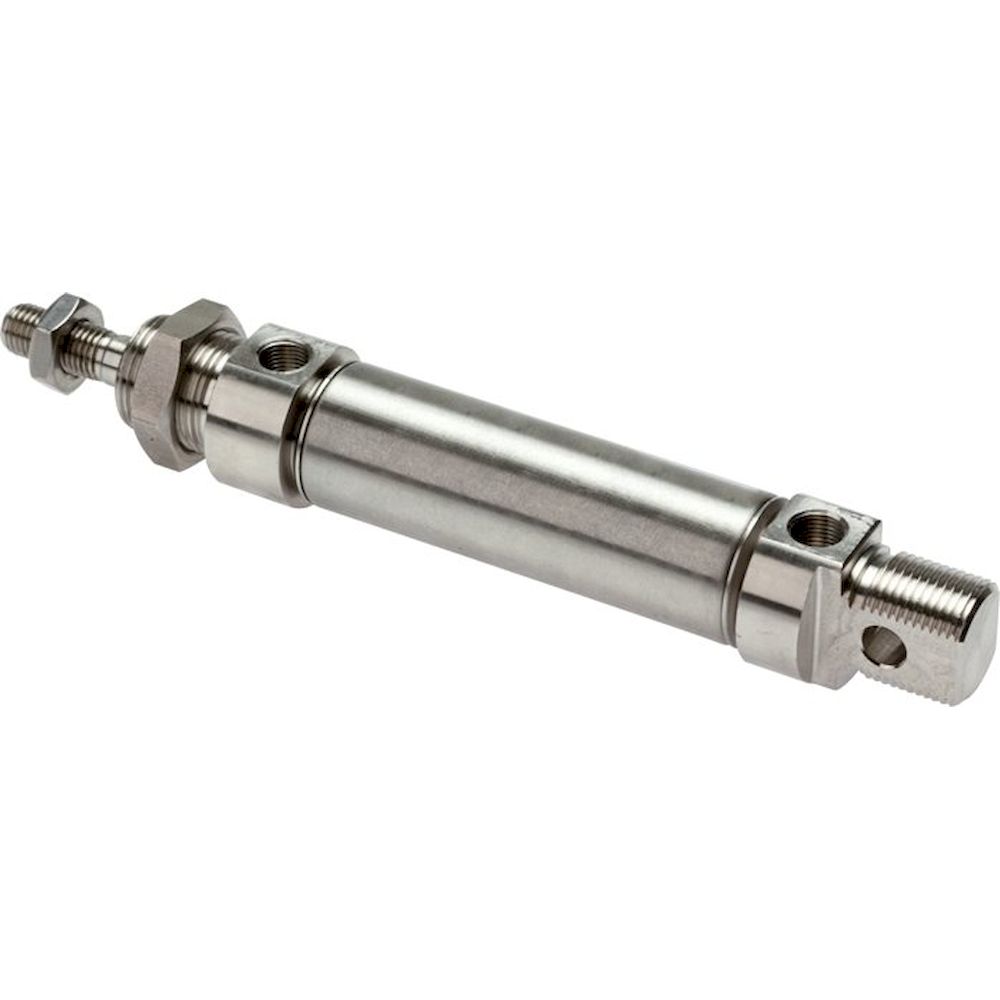

Airtec ZDMK 25/80 ES. ISO 6432 cylinders, stainless steel, piston 25 mm, stroke 80 mm
€119.22
Excl. 19% VAT ,
excl. Shipping Cost

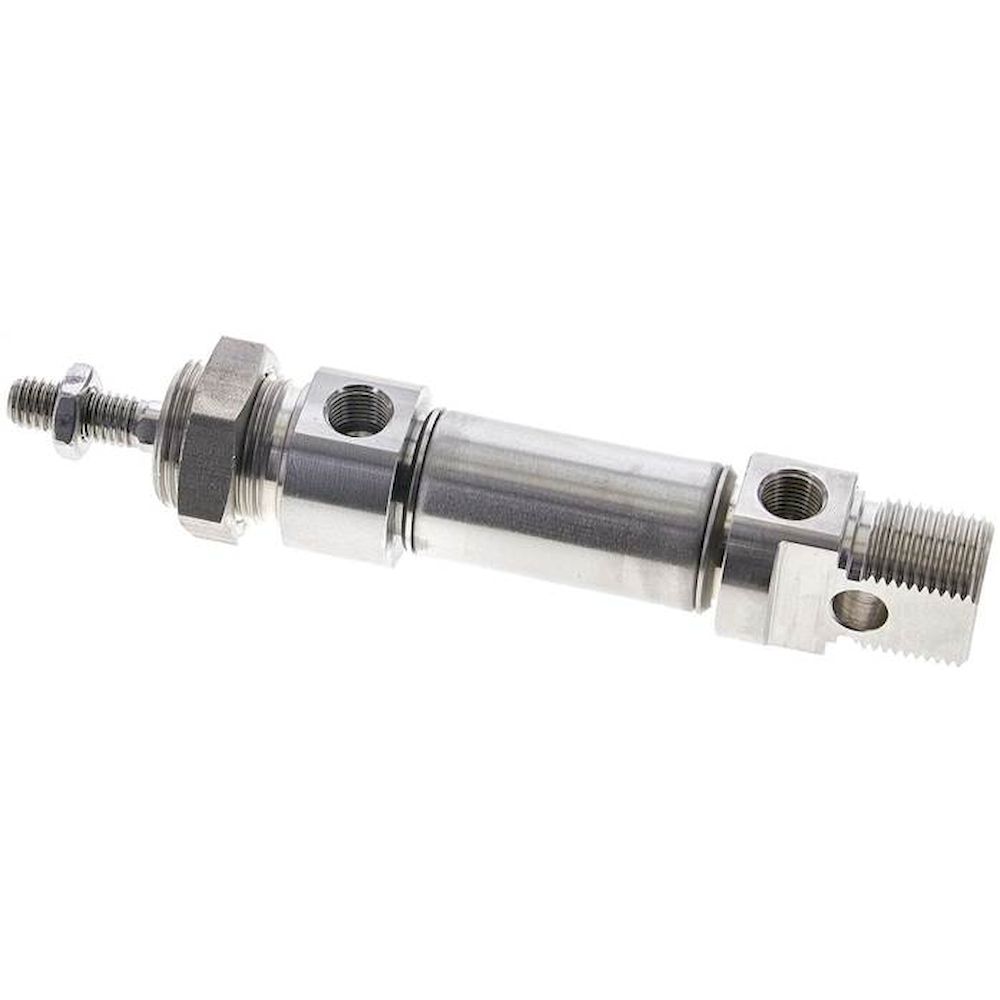

Airtec ZDM 20/10 ES. ISO 6432 cylinders, stainless steel, piston 20 mm, stroke 10 mm
€83.58
Excl. 19% VAT ,
excl. Shipping Cost

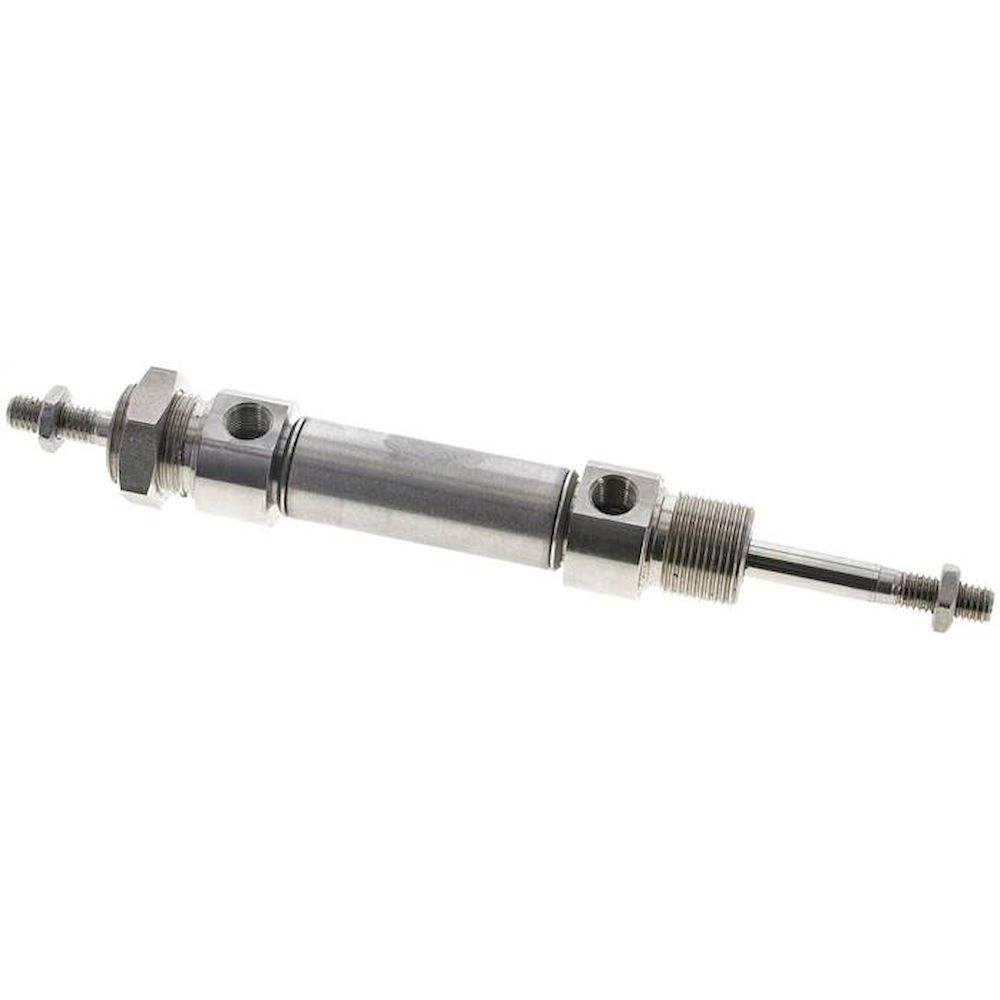

Airtec ZDMK 20/25 ES. ISO 6432 cylinders, stainless steel, piston 20 mm, stroke 25 mm
